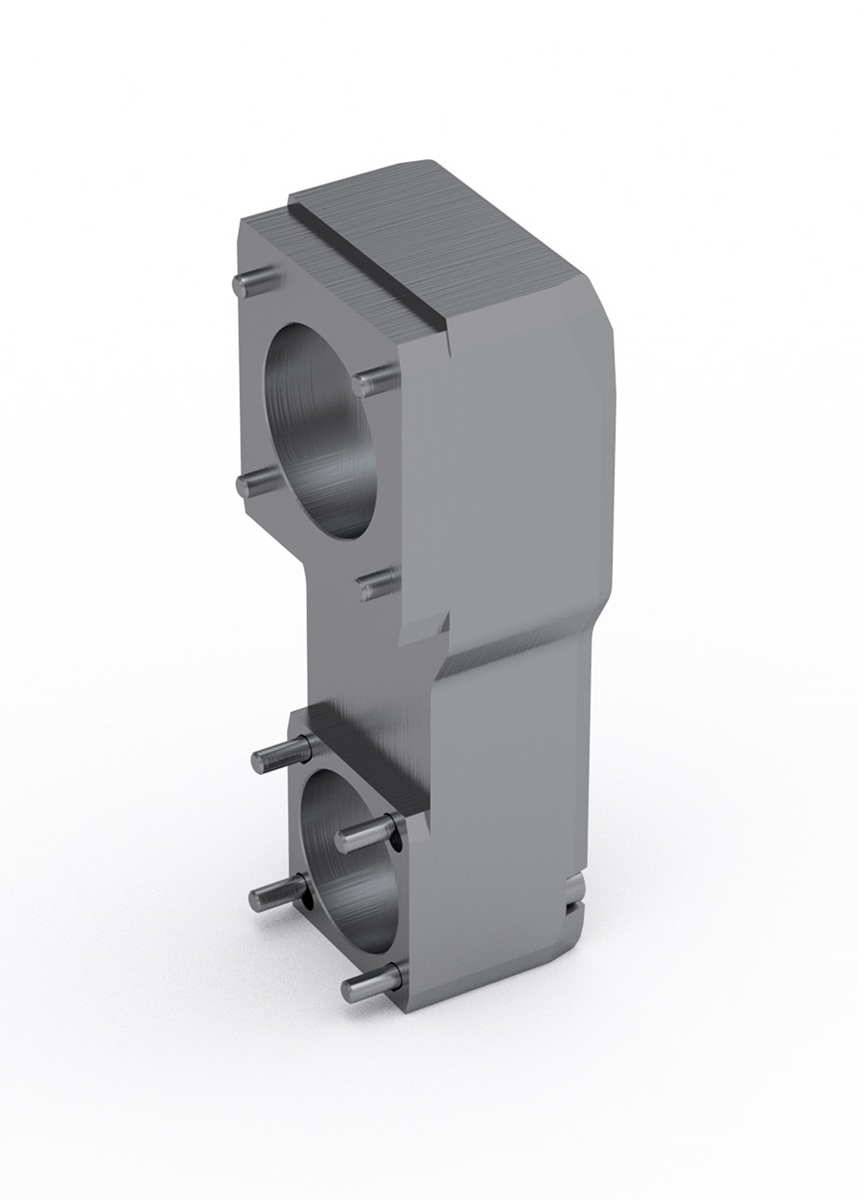

Motor side drive MSD with a timing belt

Note:
Max. radial load on shaft is linearly dependent on the maximum drive torque Mp, MSD and is generated by the correct pretension of the belt. This load needs to be reduced in accordance with the capabilities of the motor.

Mass values below are average values and could differ depending to the motor dimensions.

Values for dimension N in the tables below are standard values and could differ depending to the motor dimensions M and L1.

Higher value for dimension C is also possible with thicker tensioning plate (dimension N increases).

Minimum dimension L1 depends on the size of particular clamping set. Values can be found the in the tables below.

Keyway is not valid for clamping set.

□ = Square cross section
Download PDF code.product.loadingpdf
+ Tilføj til PDF-katalog

Product Information

Designation Select all Lead Time * Type Compatible with Gear ratio (I) Max. Drive Torque (Nm) Max. Radial Load on Shaft (N) No Load Torque (Nm) Mass moment of inertia (10⁻⁶ kg m²) Mass (kg) CAD Compare
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP 2 T1 MCE/MSCE 25 1 0.1 15 0.01 0.39 0.1
Get quote
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP 2 T1 MCE/MSCE 32 1 0.1 15 0.015 0.39 0.12
Get quote
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP 2 T2 MCE/MSCE 32 1 0.25 15 0.015 1.04 0.18
Get quote
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP 2 T1 MCE/MSCE 45 1 0.3 15 0.02 4.16 0.28
Get quote
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP 2 T2 MCE/MSCE 45 1 0.8 45 0.02 4.20 0.36
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all B E F G G2 N K L P M2 F2 J C CAD Compare
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP max 35 52.5 (±0.5) 31.5 22 19.5 5.5 12.25 83 18 M4x6 24.5 38.5 max 25
Get quote
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP max 35 52.5 (±0.5) 31.5 22 19.5 5.5 15.75 86.5 22 M5x7 31.5 0 max 25
Get quote
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP max 50 70.5 (±0.5) 44.5 22 19.5 6.5 15.75 110.5 22 M5x7 31.5 48 max 36
Get quote
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP max 50 81 (±0.5) 44.5 27.5 24.5 6.5 22.25 128 32 M6x7 44.5 0 max 36
Get quote
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP max 70 88.5 (±0.5) 59.5 27.5 24.5 6 22.25 144 32 M6x7 44.5 64.5 max 50
Get quote
Designation Select all A B L1 Min. Clamping set L1 Max. Clamping set C ØD Max. Clamping set CAD Compare
/storage/D118B0D5D052393783FD06D9477DD74014BFBCDE32020DF5DFF175C0F195AA1A/a590e1634ad2471085ffc3601e5545c9/STP/media/9102952a7e8e41298169738342683351/CAD_MSD25-T1-108261_MotorSideDriveMSD_Rollco.STP max 34 max 35 ** 20 max 25 6.35
Get quote
/storage/457F799D2AEC115FB7D343FF85FFFDEF36E5EBBC0BD42EE8EFDFC8097DAA4C8F/152169ee178e45d3b303cb763b3de424/STP/media/244dd4244777481cbd7029ff478f0383/CAD_MSD32-T1-108262_MotorSideDriveMSD_Rollco.STP max 34 max 35 ** 20 max 25 6.35
Get quote
/storage/E48CFE089D8CD12438DAEFB9F3E2D0093AC3D4D02E66F5F64D2F646DAC991946/55d62dc409e646c7877714350baee013/STP/media/07f31584ec67452bbe56fe62bbdff544/CAD_MSD32-T2-108263_MotorSideDriveMSD_Rollco.STP max 46 max 50 ** 24 max 36 8
Get quote
/storage/4A1DFB58F3CBAADD61A1A7F5C17580DB9AB1B4E6A7BD5054468E6D1906709D73/6f6ffecdb5a14bcb85f6487756ca74af/STP/media/fe14ea24289248a1af2dea10175a7621/CAD_MSD45-T1-108264_MotorSideDriveMSD_Rollco.STP max 46 max 50 ** 28 max 36 8
Get quote
/storage/A037F92E127669C69DDD0DDC57FBD9FFE22BFCD3404337D42DC0A3B8AFA5B8D3/a8e516ee78854b81abed75896d7d47ef/STP/media/cfc3365e44644d0db4c046f2006bdcfb/CAD_MSD45-T2-108265_MotorSideDriveMSD_Rollco.STP max 59.5 max 70 ** 28 max 50 12.7
Get quote
