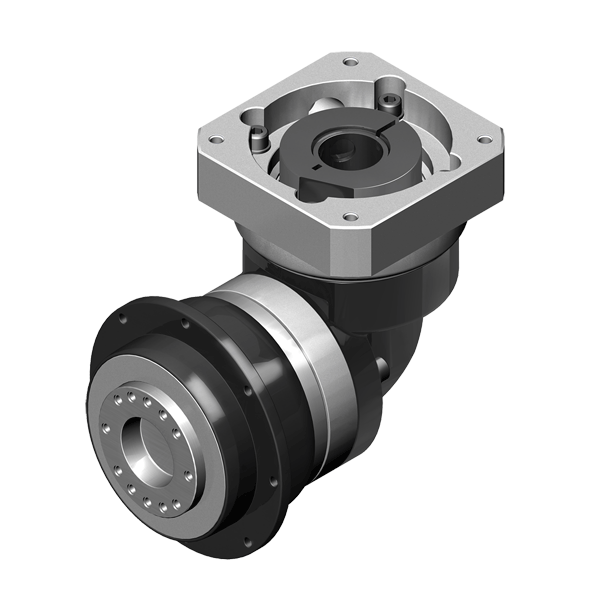

PDR-Series

Right-angle planetary medium-end ECO serie.
Rotary flange output.
The PDR series is an economy right angle rotary flange output precision planetary gearbox with accuracy down to less than 6 arc minutes. The PD series features lower inertia, lower size and weight, quieter operation, reduced backlash, increased efficiency and greater mounting versatility.
Design your APEX Gear with the Calculation Tool.
Download PDF

Product Information

Operating temperature: 0°C ~ +90°C
Protection class: IP65
Designation Lead Time * Remark
2 Measurements and other technical data depending on configuration of gear. See more information in pdf. Get quote
2 Measurements and other technical data depending on configuration of gear. See more information in pdf. Get quote
2 Measurements and other technical data depending on configuration of gear. See more information in pdf. Get quote
2 Measurements and other technical data depending on configuration of gear. See more information in pdf. Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

  • Powerful, precise, robust, quiet and fast, suitable for all servo applications
  • High precision rotary flange, high torsional rigidity & high output moment load capacity
  • A middle ground between the precision helical series, and the spur economy series
