Rollers CRPN-CRPA

Available individually in all sizes as eccentric or concentric rollers. Crowned roller for K-rail.
Roller seals: Standard 2Z (2ZR for size 63) is the steel cover disc, which is supplied on all standard sliders.
For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.
Rollers are lubricated for life.

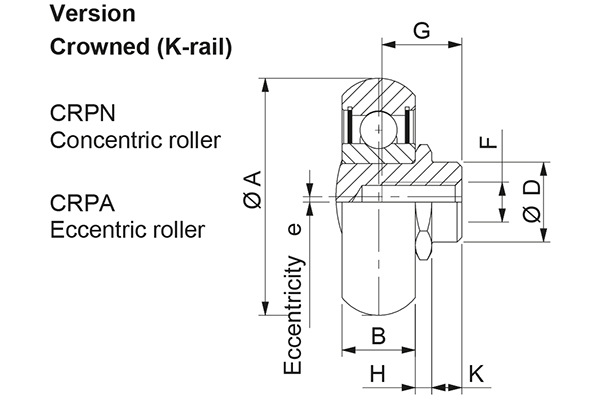

Dimensions in mm.
Download PDF code.product.loadingpdf
+ Tilføj til PDF-katalog

Product Information

Material: Steel 100Cr6. Also available in stainless steel AISI 440.
Designation Select all Lead Time * Size Roller type Material Compare
2 43 Concentric Steel
Get quote
2 43 Concentric Stainless steel
Get quote
2 43 Eccentric Steel
Get quote
2 43 Eccentric Stainless steel
Get quote
2 63 Concentric Steel
Get quote
2 63 Concentric Stainless steel
Get quote
2 63 Eccentric Steel
Get quote
2 63 Eccentric Stainless steel
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all A B D e H G F K Compare
35.6 11 12 - 2.5 12 M6 4.5
Get quote
35.6 11 12 - 2.5 12 M6 4.5
Get quote
35.6 11 12 0.8 2.5 12 M6 4.5
Get quote
35.6 11 12 0.8 2.5 12 M6 4.5
Get quote
49.7 17.5 18 - 2.3 16 M8 6
Get quote
49.7 17.5 18 - 2.3 16 M8 6
Get quote
49.7 17.5 18 1.2 2.3 16 M10 6
Get quote
49.7 17.5 18 1.2 2.3 16 M10 6
Get quote
Designation Select all C (N) C0rad (N) Weight (kg) Compare
6140 2550 0.06
Get quote
6140 2550 0.06
Get quote
6140 2550 0.06
Get quote
6140 2550 0.06
Get quote
15375 5775 0.19
Get quote
15375 5775 0.19
Get quote
15375 5775 0.19
Get quote
15375 5775 0.19
Get quote
