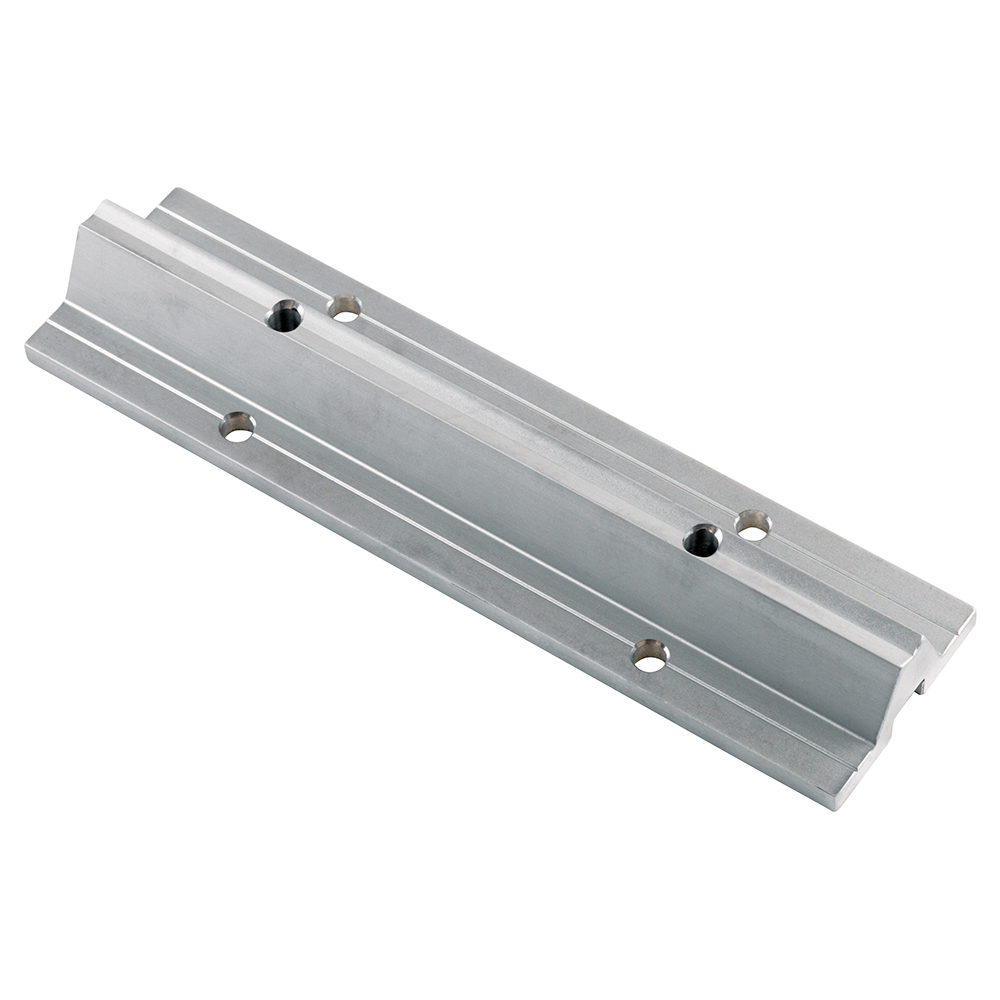

FTSN

STOCK ITEM
Aluminium with mounting holes.

Standard section length L = 3700 mm. Lengths other than standard (Lmax = 3700 mm) are also available on request.

Support rails can be supplied upon request, with or without mounting holes. No anodizing in holes.

Dimensions in mm.

Note: The shaft is not included, please order separately.
Read more
Designation Select all Compare Get quote Lead Time * Remark G A B H D K F C E I
Get quote 2 Standard section length L = 3700 mm 75 40 29 22 12 M4x20 5 15 4.5 5.4
Get quote 1 Standard section length L = 3700 mm 100 45 33 26 16 M5x20 5 19 5.5 7
Get quote 2 Standard section length L = 3700 mm 100 52 37 32 20 M6x25 6 23 6.6 8.1
Get quote 1 Standard section length L = 3700 mm 120 57 42 36 25 M8x30 6 26 6.6 10.3
Get quote 1 Standard section length L = 3700 mm 150 69 51 42 30 M10x35 7 29 9 11
Get quote 1 Standard section length L = 3700 mm 200 73 55 50 40 M10x40 8 36 9 15

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
