Trunnion support MLZ
Mounting Attachment Accessory MLZ, galvanized steel and sinterized bronze

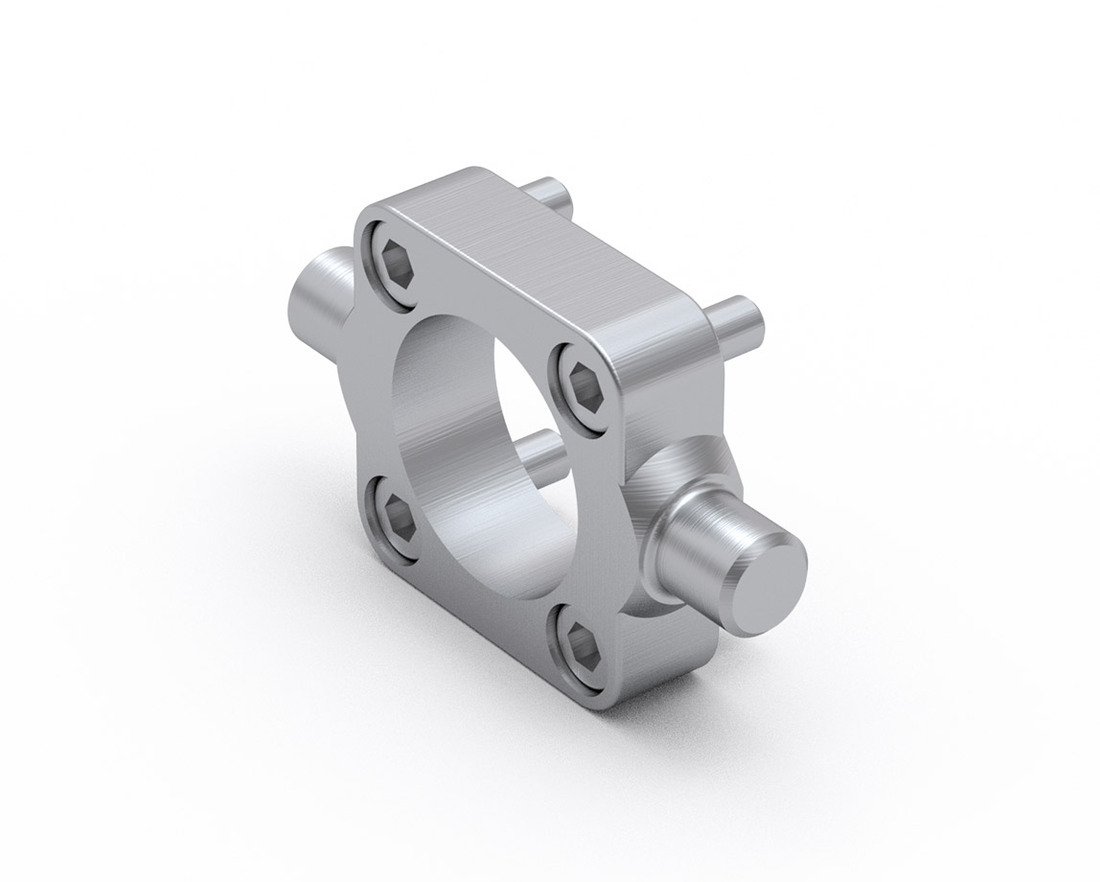

Trunnion mount MZK
Dimensions in mm.
Mounting screws are included.
Read more
Mounting screws are included.
Product Information
Material: Galvanized steel
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Description | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | MZK 32 | MCE 32 | Galvanized steel | F MCE | 0.12 | ||||
|
|
|
2 | MZK 45 | MCE 45 | Galvanized steel | F MCE | 0.17 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | D3 | D4 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
35 | 22 | 38 (h14) | 12 (h14) | 14 | 6.5 (+0.3/0) | 6 (±0.2) | 5.5 | 10 | 12 (e9) | 18 | ||||
|
|
|
46 | 32 | 52 (h14) | 12 (h14) | 14 | 6.5 (+0.3/0) | 7 (±0.2) | 6.6 | 10.5 | 12 (e9) | 32 |
