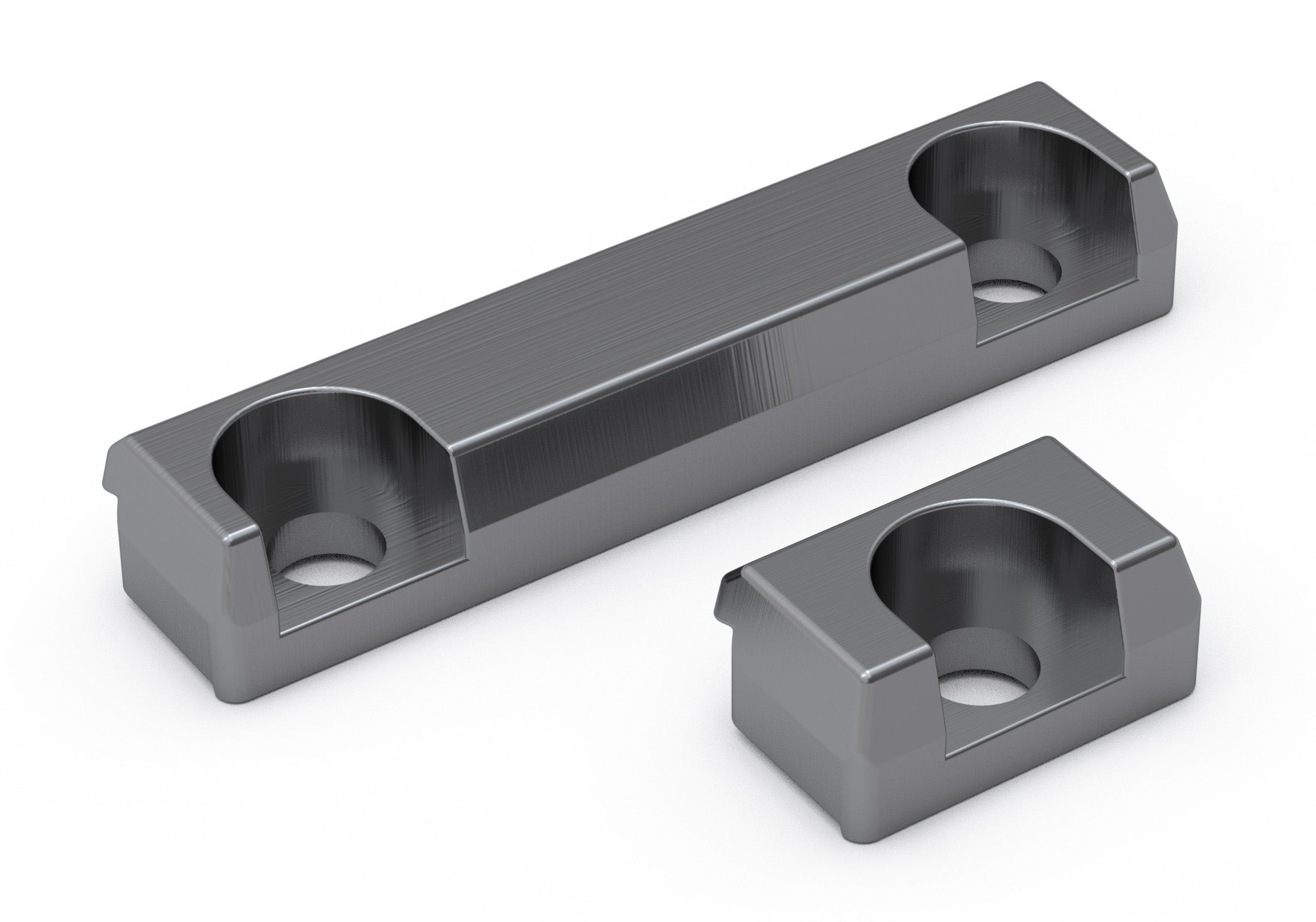

Clamping fixtures

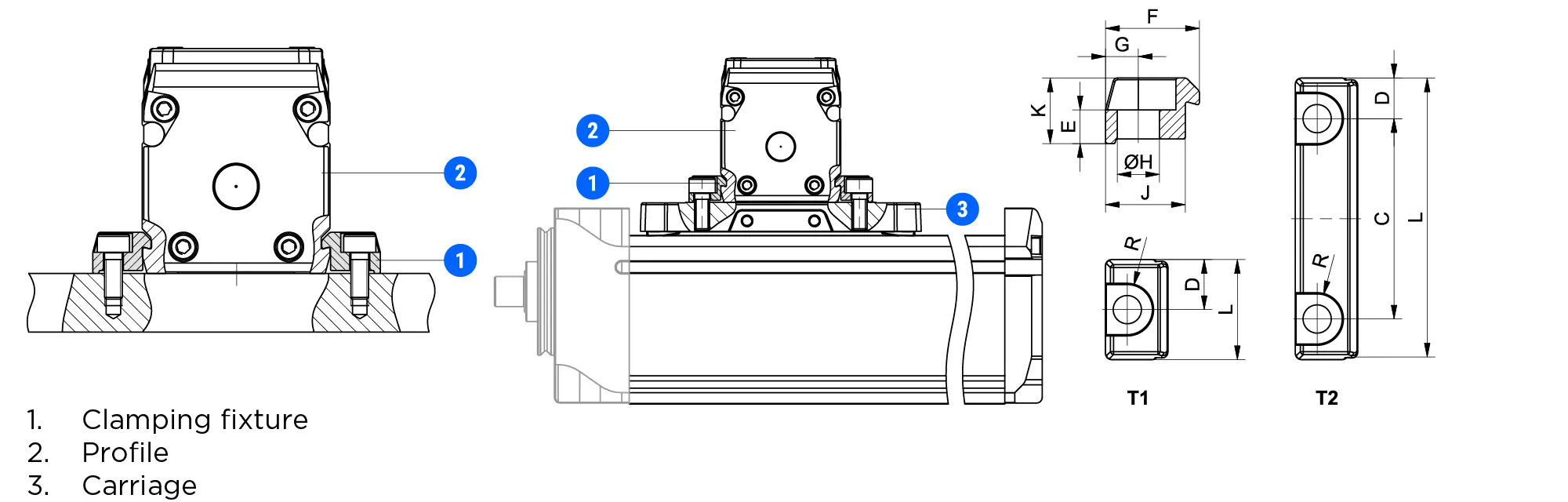

Mini linear units MGBS & MGTB and Mini electric cylinders & sliders MCE & MSCE can be mounted by clamps, which are placed in the slot on the side of the profile. Clamps can also attach to the carriage of the mini linear unit, fixing another mini linear unit (or mini electric cylinder MCE or slider MSCE) to the carriage at an angle of 90° (i.e. for multi-axis systems).
Material: powder coated zinc alloy
Dimensions in mm.
Material: powder coated zinc alloy
Dimensions in mm.
Download PDF
code.product.loadingpdf
+
Tilføj til PDF-katalog
Product Information
| Designation | Select all | Lead Time * | Screw Type | Type | Compatible with | Countersink for | Mass (g) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|

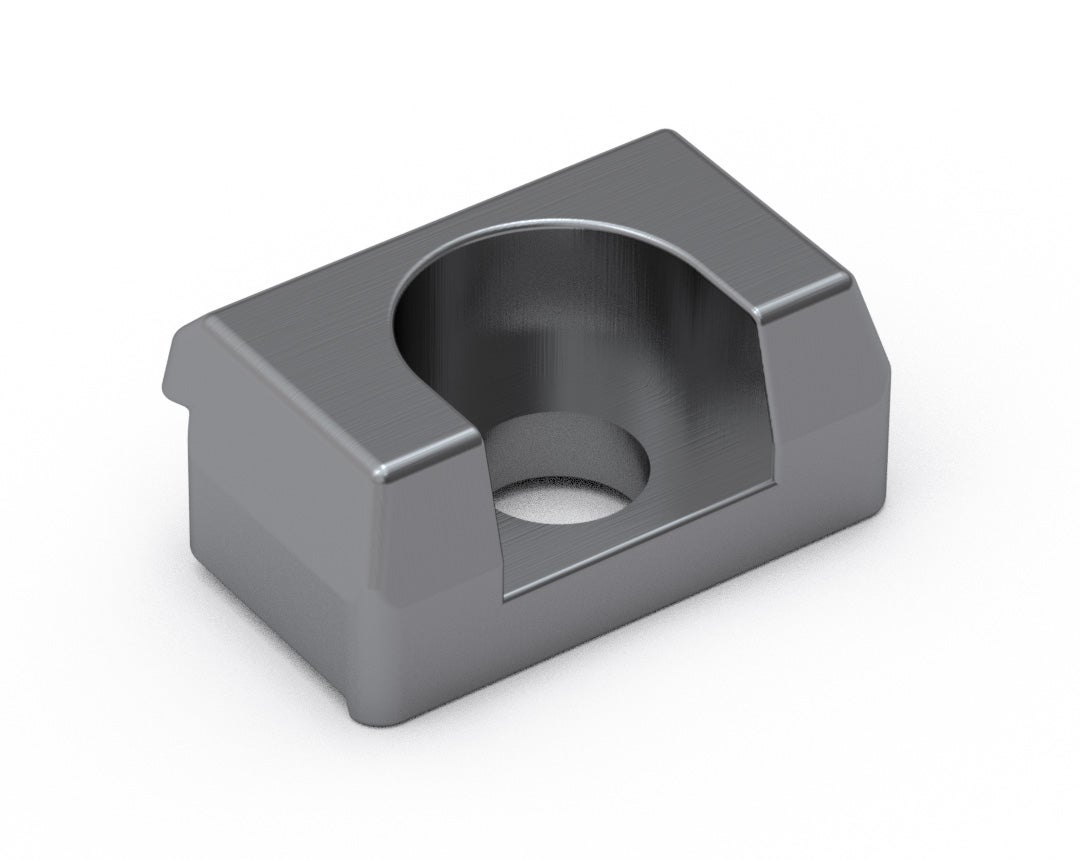

/storage/450A0B5FC0CF037D499676D01C34B674D2B17E009C18810840C26217E8F5FA5A/cd1da7109f9c425aa88b9cb8527ff6f9/STP/media/061d84a3dab140b58a5bba3d8b654e21/CAD_MG-M3-T1-108216_ClampingFixture_Rollco.STP | 2 | M3 | T1 | MGBS, MGTB, MCE, MSCE | DIN 912 | 6 |
|
||
|
|

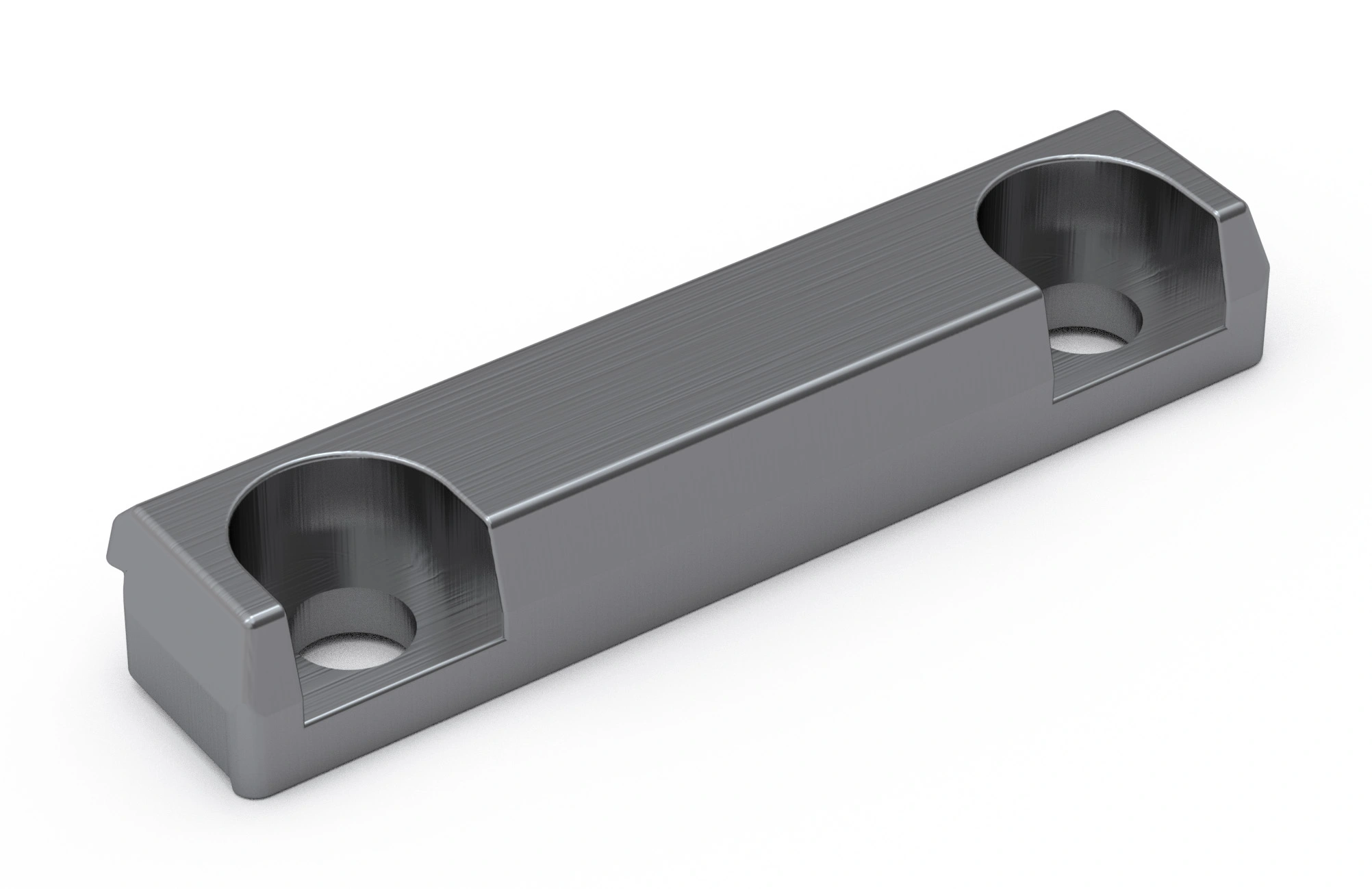

/storage/47AD75057541491191F6A3CA6F43288DA1BEA8424707C0537862DBF5FADFAA52/378bb0a64790474e80ba34e1092e6c41/STP/media/df1f0be55b8c498897ca45d926a0a07c/CAD_MG-M3-T2-108218_ClampingFixture_Rollco.STP | 2 | M3 | T2 | MGBS, MGTB, MCE, MSCE | DIN 912 | 12 |
|
||
|
|
/storage/9C9F51F87522762D8C55CAACAFF2CCDBEC04AD17AB87859D3535BE4E126E3AAC/aeace65fc5d44925a728057cc6d90f78/STP/media/a8442bbdc9e247c4b9a1013e18bd15ec/CAD_MG-M4-T1-108217_ClampingFixture_Rollco.STP | 2 | M4 | T1 | MGBS, MGTB, MCE, MSCE | DIN 912 | 5 |
|
||
|
|
/storage/668FCC806732D1FF411C476ED16A5C1F2A0D82B6C82C6B3BEA982392D6FFDDEA/39e1d3a33404456da99420099b0b058e/STP/media/b026f63d833e4610a0e037e1c640c0cb/CAD_MG-M4-T2-108219_ClampingFixture_Rollco.STP | 2 | M4 | T2 | MGBS, MGTB, MCE, MSCE | DIN 912 | 16 |
|
||
|
|
2 | M5 | T1 | MGBS, MGTB | DIN 912 | 6 |
|
|||
|
|
2 | M5 | T2 | MGBS, MGTB | DIN 912 | 27 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | C | D | E | F | G | H | J | K | L | R | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/450A0B5FC0CF037D499676D01C34B674D2B17E009C18810840C26217E8F5FA5A/cd1da7109f9c425aa88b9cb8527ff6f9/STP/media/061d84a3dab140b58a5bba3d8b654e21/CAD_MG-M3-T1-108216_ClampingFixture_Rollco.STP | - | 8 | 3.6 | 10 | 3.5 | 3.4 | 8.5 | 7 | 16 | 3.25 |
|
||
|
|
/storage/47AD75057541491191F6A3CA6F43288DA1BEA8424707C0537862DBF5FADFAA52/378bb0a64790474e80ba34e1092e6c41/STP/media/df1f0be55b8c498897ca45d926a0a07c/CAD_MG-M3-T2-108218_ClampingFixture_Rollco.STP | 22.5 | 4.75 | 3.6 | 10 | 3.5 | 3.4 | 8.5 | 7 | 32 | 3.25 |
|
||
|
|
/storage/9C9F51F87522762D8C55CAACAFF2CCDBEC04AD17AB87859D3535BE4E126E3AAC/aeace65fc5d44925a728057cc6d90f78/STP/media/a8442bbdc9e247c4b9a1013e18bd15ec/CAD_MG-M4-T1-108217_ClampingFixture_Rollco.STP | - | 8 | 2.5 | 10 | 3.5 | 4.5 | 8.5 | 7 | 16 | 4 |
|
||
|
|
/storage/668FCC806732D1FF411C476ED16A5C1F2A0D82B6C82C6B3BEA982392D6FFDDEA/39e1d3a33404456da99420099b0b058e/STP/media/b026f63d833e4610a0e037e1c640c0cb/CAD_MG-M4-T2-108219_ClampingFixture_Rollco.STP | 32 | 6.5 | 2.5 | 10 | 3.5 | 4.5 | 8.5 | 7 | 45 | 4 |
|
||
|
|
- | 8 | 4 | 11 | 4.5 | 5.5 | 9.5 | 7.5 | 16 | 4.5 |
|
|||
|
|
45 | 7.5 | 4 | 11 | 4.5 | 5.5 | 9.5 | 7.5 | 60 | 4.5 |
|
