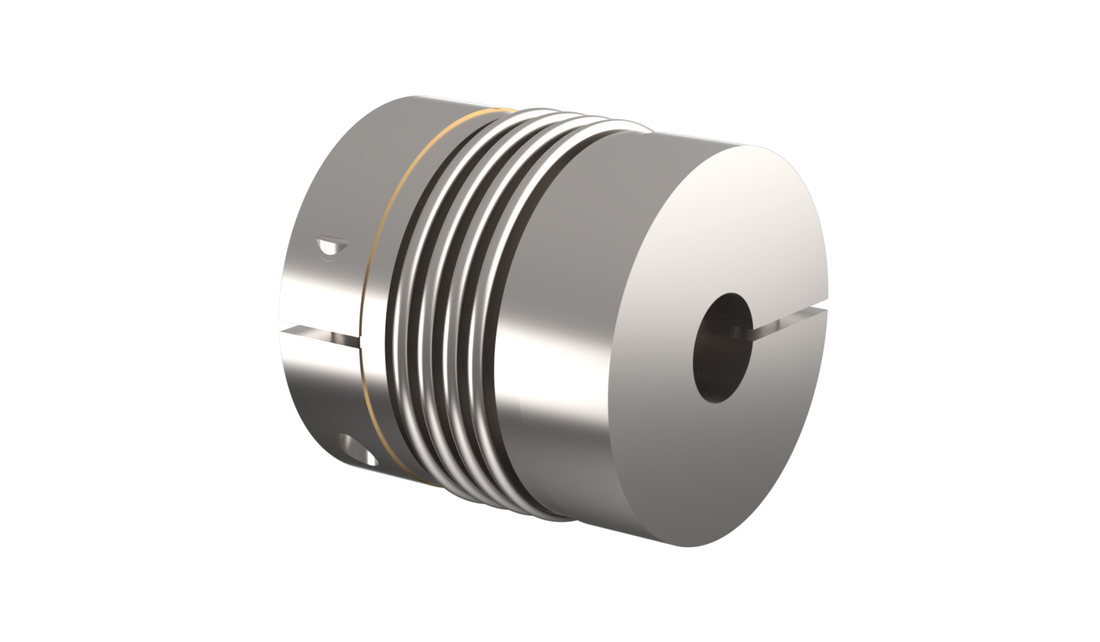

Metal Bellows Coupling KP
• 4-corrugation bellows
• Simple installation with EASY-clamping hub
• Short design
• High torsional stiffness
Smaller couplings from 2 Nm - 12 Nm, see MKP.
Size KP 25 - with 5-corrugation bellow and optional with EASY-PIN.
Please note reduced tightening torque for bigger hub bore diameter - see also Ø D 1/2max.
Tightening torque refers to screws.
Dimensions in mm. Length dimensions according to DIN ISO 2768 cH.
Read more
• Simple installation with EASY-clamping hub
• Short design
• High torsional stiffness
Smaller couplings from 2 Nm - 12 Nm, see MKP.
Size KP 25 - with 5-corrugation bellow and optional with EASY-PIN.
Please note reduced tightening torque for bigger hub bore diameter - see also Ø D 1/2max.
Tightening torque refers to screws.
Dimensions in mm. Length dimensions according to DIN ISO 2768 cH.
Product Information
Material: Bellows: stainless steel
Hubs: high-tensile strength aluminiume
Clamping screws: ISO 4762 - 12.9
Press-fit wire: brass
Temperature range (°C): –20° to +120°C
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Nominal Torque (Nm) | Max. Torque (Nm) | Moment of inertia (10⁻⁶kg*m²) | Torsional stiffness (Nm/arcmin) | Axial max. shaft misalignment (mm) | Lateral max. shaft misalignment (mm) | Axial spring rate (N/mm) | Lateral spring rate (N/mm) | Tightening Torque (Nm) | Max. Speed (rpm) | Weight (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | 25 | 50 | 0.064 | 4 | 0.5 | 0.15 | 36 | 180 | 8 | 23 000 | 0.18 | ||||
|
|
|
2 | 35 | 70 | 0.13 | 9 | 0.5 | 0.2 | 70 | 450 | 14 | 20 000 | 0.3 | ||||
|
|
|
2 | 60 | 120 | 0.27 | 14 | 0.6 | 0.2 | 70 | 650 | 30 | 17 000 | 0.4 | ||||
|
|
|
2 | 100 | 200 | 0.35 | 20 | 0.6 | 0.2 | 110 | 1 200 | 30 | 16 000 | 0.5 | ||||
|
|
|
2 | 170 | 340 | 0.76 | 28 | 0.8 | 0.2 | 98 | 1 000 | 50 | 14 000 | 0.8 | ||||
|
|
|
2 | 270 | 540 | 2.0 | 52 | 0.8 | 0.2 | 90 | 1 300 | 90 | 11 000 | 1.3 | ||||
|
|
|
2 | 400 | 600 | 2.15 | 74 | 0.7 | 0.2 | 135 | 1 500 | 90 | 11 000 | 1.4 | ||||
|
|
|
2 | 600 | 900 | 5.0 | 106 | 0.7 | 0.2 | 140 | 2 800 | 140 | 9 000 | 2.3 | ||||
|
|
|
2 | 900 | 1800 | 9.0 | 156 | 0.8 | 0.2 | 210 | 3 050 | 140 | 8 500 | 3.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | Nominal Torque (Nm) | A | B | L | C | g | f | E | ØD1/2 min. | ØD1/2 max. | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
25 | 50 (±0.6) | 48 | 58 | 17 | 24 | M5 | 17 | 10 | 28 | ||||
|
|
|
35 | 56 | - | 61 | 20 | 21 | M6 | 19 | 10 | 32 | ||||
|
|
|
60 | 66 (±0.8) | 63 | 67 | 22.2 | 23 | M8 | 22 | 13 | 35 | ||||
|
|
|
100 | 71 (±0.8) | 70 | 68 | 22 | 23.5 | M8 | 25 | 14 | 38 | ||||
|
|
|
170 | 82 (±0.8) | 79.5 | 80 | 26 | 28 | M10 | 28.5 | 18 | 43 | ||||
|
|
|
270 | 101 (±1) | 99 | 87 | 29 | 29 | M12 | 35 | 25 | 55 | ||||
|
|
|
400 | 101 (±1) | 99 | 91 | 29 | 33 | M12 | 35 | 30 | 55 | ||||
|
|
|
600 | 122 | - | 104 | 34 | 36 | M14 | 42 | 32 | 68 | ||||
|
|
|
900 | 133 | - | 127 | 45 | 37 | M14 | 47 | 40 | 75 |
