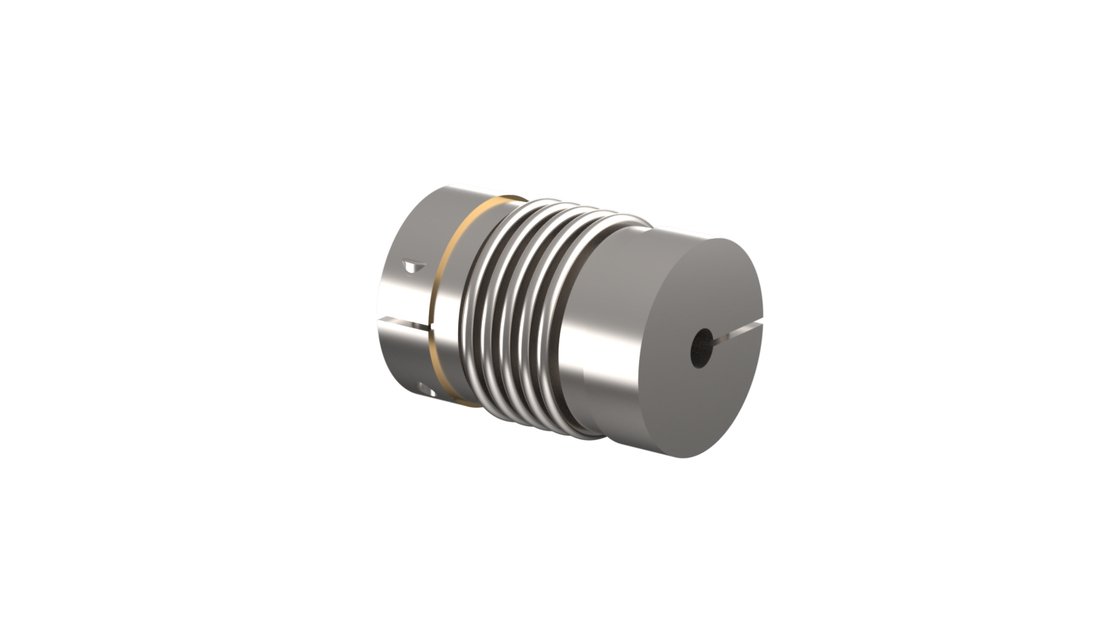

Miniature Metal Bellows Coupling MKP

• Short design with lateral clamping hub
• High torsional stiffness - flexible

Tightening torque refers to screws.

Dimensions in mm. Length dimensions according to DIN ISO 2768 cH.
Read more

Product Information

Material: Bellows: stainless steel Hubs: high-tensile strength aluminium Clamping screws: ISO 4762 - 12.9 Press-fit wire: brass
Temperature range (°C): –40° to +200°C
Max. Speed (rpm): 20 000
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD / Request quote Download CAD
Designation Select all CAD Compare Get quote Lead Time * Nominal Torque (Nm) Max. Torque (Nm) Moment of inertia (10⁻⁶kg*m²) Torsional stiffness (Nm/arcmin) Axial max. shaft misalignment (mm) Lateral max. shaft misalignment (mm) Axial spring rate (N/mm) Lateral spring rate (N/mm) Tightening Torque (Nm) Weight (g) Remark
Request quote 2 2 4 2.5 400 0.3 0.1 32 100 2 30 Stock bores D1/D2 (G7): 4/5/6/6,35/8/9,53/10
Request quote 2 5 10 0.8 800 0.3 0.1 70 400 2 40 Stock bores D1/D2 (G7): 4/5/6/6,35/8/9,53/10
Request quote 2 7 14 12 1 700 0.4 0.15 70 220 4 80 Stock bores D1/D2 (G7): 6/6,35/8/9,53/10/12/14/15/16
Request quote 2 8 16 25 2 100 0.5 0.15 20 90 8 125 Stock bores D1/D2 (G7): 6/6,35/8/9,53/10/12/14/15/16/19
Request quote 2 12 24 28 2 600 0.4 0.15 45 190 8 130 Stock bores D1/D2 (G7): 6/6,35/8/9,53/10/12/14/15/16/19

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote Nominal Torque (Nm) A B L C g f E ØD1/2 min. ØD1/2 max.
Request quote 2 24.5 - 35 13 9 M3 7.5 3 10
Request quote 5 24.5 - 36 13 10 M3 7.5 6 10
Request quote 7 34 (±0.5) 32.5 47 14 19 M4 11 6 17
Request quote 8 39.5 - 51 16.6 18 M5 13 6 19
Request quote 12 39.5 - 51 16.6 18 M5 13 6 19
