MR-M SS Series

STOCK ITEM

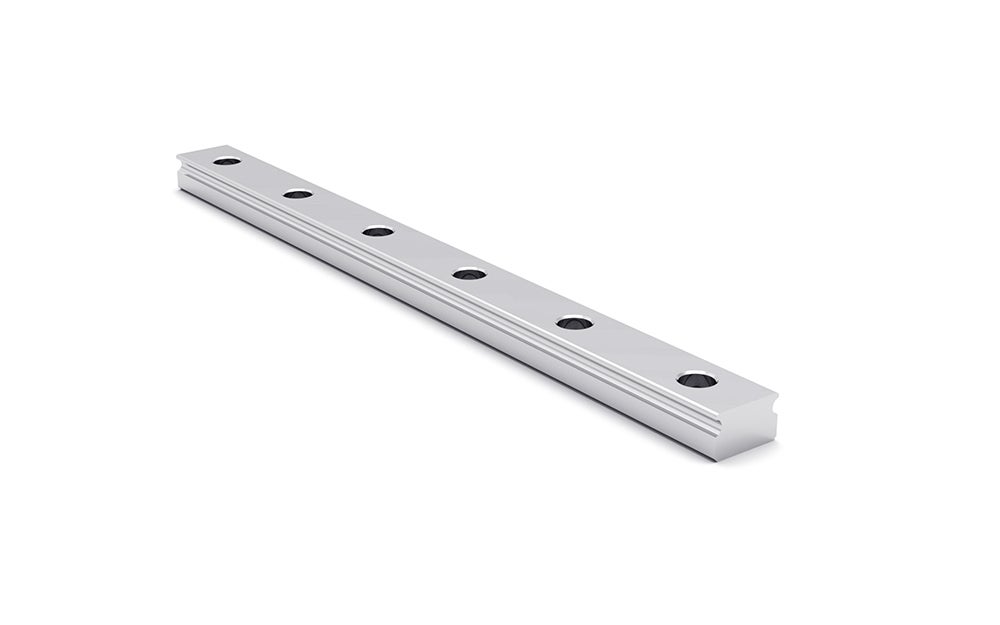

Standard narrow rail type
End seal

This product is available in different preload and accuracy classes (see more in Technical Information). Please note that we do not have versions with all preload or accuracy classes on stock.

Dimensions in mm.

Please note that blocks and rails are not sold separately for sizes 2 and 3. Due to the small dimensions, blocks and sliders must be assembled and matched carefully to ensure correct quality and tolerances.

Lead times in the table below are only indications. Choice of preload, accuracy class and other options will affect lead time. Please contact us for exact delivery time for your request.
Read more
Designation Select all Compare Get quote Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) Weight Block (g)
Get quote 2 158 349 0.43 0.54 0.54 0.19 0.24 0.24 0.8
Get quote 2 190 310 0.6 0.4 0.4 0.37 0.25 0.25 0.9
Get quote 2 295 575 0.9 1.1 1.1 0.46 0.56 0.56 1.2
Get quote 1 335 550 1.7 1 1 1 0.61 0.61 3.5
Get quote 1 470 900 2.4 2.1 2.1 1.25 1.1 1.1 4
Get quote 1 890 1440 5.2 3.3 3.3 3.2 2 2 8
Get quote 1 1310 2440 9 7.7 7.7 4.8 4.1 4.1 14
Get quote 1 1570 2495 11.7 6.4 6.4 7.4 4 4 18
Get quote 1 2135 3880 18.2 12.4 12.4 10 6.8 6.8 28
Get quote 1 2308 3465 21.5 12.9 12.9 14.3 8.6 8.6 34
Get quote 1 3240 5630 34.9 30.2 30.2 20.1 17.4 17.4 51
Get quote 1 3810 5590 43.6 27 27 29.7 18.4 18.4 61
Get quote 1 5350 9080 70 63.3 63.3 41.2 37.3 37.3 90

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all Compare Get quote L H W L1 H1 h2 W1 W2 S T D x d x g1 Hole Pitch (P) M x g2 P1 P2 ø
Get quote 12.5 3.2 6 8.8 2 2.6 2 2 - - M1 8 M1.4x1.1 4 - -
Get quote 11.9 4 8 6.7 2.6 3.2 3 2.5 0.7 1.5 M1.6 10 M1.6x1.1 3.5 - 0.3
Get quote 16.1 4 8 11 2.6 3.2 3 2.5 0.7 1.5 M1.6 10 M2x1.1 5.5 - 0.3
Get quote 16.3 6 12 10 3.5 4.7 5 3.5 1.3 2 3.5 x 2.4 x 1 15 M2x1.5 - 8 0.7
Get quote 19.7 6 12 13.5 3.5 4.6 5 3.5 1.3 2 3.5 x 2.4 x 1 15 M2.6x2.0 7 - 0.7
Get quote 24.1 8 17 14.3 4.7 6.6 7 5 1.6 2.8 4.2 x 2.4 x 2.3 15 M2x2.5 8 12 1.1
Get quote 31.5 8 17 21.8 4.7 6.7 7 5 1.6 2.8 4.2 x 2.4 x 2.3 15 M2x2.5 13 12 1.1
Get quote 30.9 10 20 20.5 5.5 7.9 9 5.5 2.2 3.3 6 x 3.5 x 3.5 20 M3x3.0 10 15 1.3
Get quote 41.1 10 20 30.8 5.5 8 9 5.5 2.2 3.3 6 x 3.5 x 3.5 20 M3x3.0 16 15 1.3
Get quote 35.8 13 27 22 7.5 10.1 12 7.5 3.2 4.3 6 x 3.5 x 4.5 25 M3x3.5 15 20 1.3
Get quote 47.8 13 27 34 7.5 10.2 12 7.5 3.2 4.3 6 x 3.5 x 4.5 25 M3x3.5 20 20 1.3
Get quote 43.4 16 32 27 9.5 12.2 15 8.5 3.3 4.3 6 x 3.5 x 4.5 40 M3x5.5 20 25 1.8
Get quote 60.2 16 32 44 9.5 12.2 15 8.5 3.3 4.3 6 x 3.5 x 4.5 40 M3x5.5 25 25 1.8
