DE..63

Full extension consisting of two guide rails, combined as double-T profile, form the intermediate element, and two sliders, which as fixed and movable element form the connection to the adjacent construction. The square cross-section allows a compact size with high load capacities and low deflection, especially with radial loading. A custom design is available for extensions with double-sided strokes. The simultaneous movement of the intermediate element is implemented with a driving disc.

"There are three versions of fixing holes available for the DE series in sizes 22 to 43:"

• Version DEF with threaded holes.
• Version DEV with countersunk holes.
• Version DEM, both variants (mixed).
• Size 63 is always with threaded holes.

Custom Design DE Version D
The eccentrically located driving disc on both ends of the DE...D ensures that the intermediate element is carried along and does not remain standing at an undefined location during double-sided strokes. This custom design is available in sizes 22, 28, 35 and 43 with all three versions of the fixing holes. It is built on the standard design of the DE series, however deviates in the technical data based on the model. For CAD-files or more information please contact Rollco.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm

Product Information

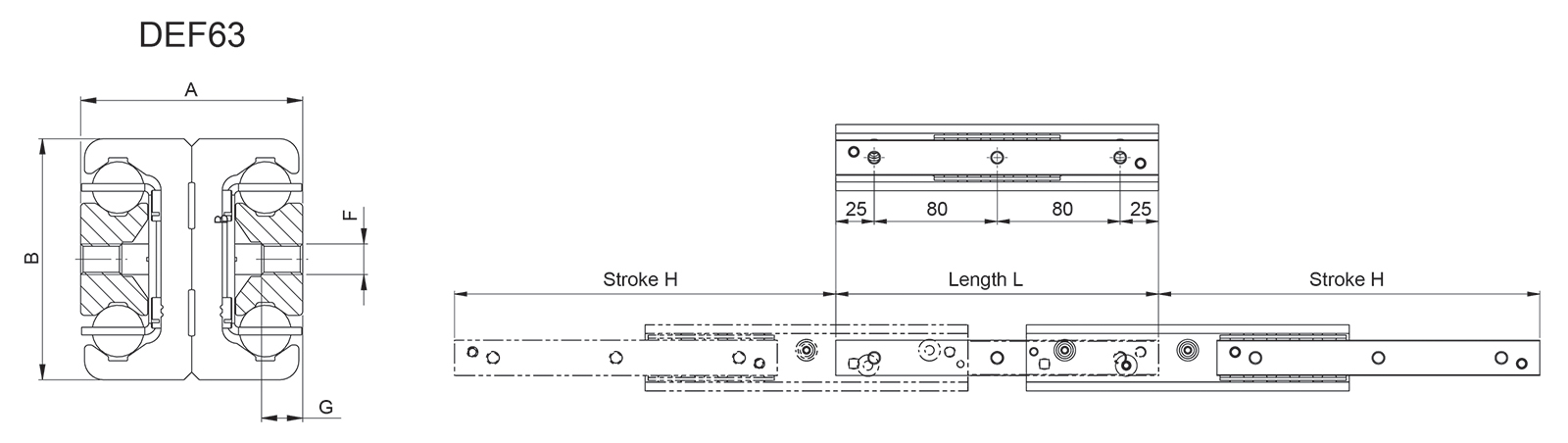

Technical Drawing
Designation Lead Time * Length Stroke System Load Capacity Radial System Load Capacity Axial Number of Fixing Holes Stroke Modification Weight
2 610 666 4090 N 2863 N 8 40 20,6 kg/m
2 690 746 4859 N 3062 N 9 40 20,6 kg/m
2 770 826 5635 N 2784 N 10 40 20,6 kg/m
2 850 906 6415 N 2553 N 11 40 20,6 kg/m
2 930 986 7198 N 2357 N 12 40 20,6 kg/m
2 1.010 1066 6885 N 2189 N 13 40 20,6 kg/m
2 1.090 1146 6427 N 2043 N 14 40 20,6 kg/m
2 1.170 1226 6026 N 1916 N 15 40 20,6 kg/m
2 1.250 1306 5672 N 1803 N 16 40 20,6 kg/m
2 1.330 1386 5357 N 1703 N 17 40 20,6 kg/m
2 1.410 1466 5076 N 1614 N 18 40 20,6 kg/m
2 1.490 1546 4822 N 1533 N 19 40 20,6 kg/m
2 1.570 1626 4593 N 1460 N 20 40 20,6 kg/m
2 1.650 1706 4384 N 1394 N 21 40 20,6 kg/m
2 1.730 1786 4194 N 1333 N 22 40 20,6 kg/m
2 1.810 1866 4019 N 1278 N 23 40 20,6 kg/m
2 1.890 1946 3859 N 1227 N 24 40 20,6 kg/m
2 1.970 2026 3710 N 1180 N 25 40 20,6 kg/m

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.
