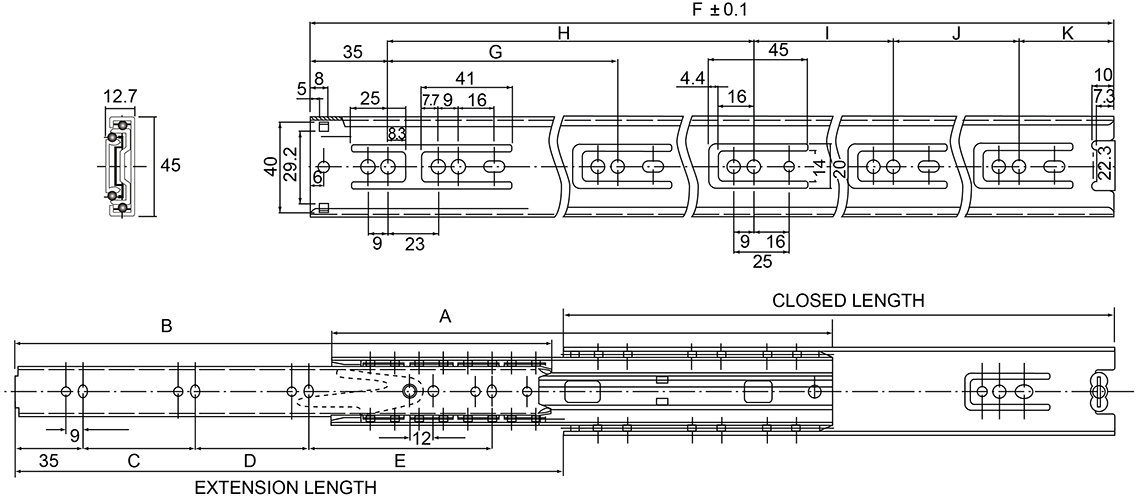

3045 - 100% Extension
Closed Length ± 0.5 mm
Extension length ± 3 mm
F ± 0.5 mm
Recommended fastening screws ISO 7380 M4 sliding element, ISO7380 M5 bottom element. If use of other fastening screw for bottom element use max size M5 and make sure the head of the screw fits inside the guide.
*Inner rail can be demounted to facilitate assembly or maintenance. It is important that the rail is remounted only on its original telescopic slide.
System Load Capacity value refers to a pair of rails.
All dimensions in mm.
Read more
Extension length ± 3 mm
F ± 0.5 mm
Recommended fastening screws ISO 7380 M4 sliding element, ISO7380 M5 bottom element. If use of other fastening screw for bottom element use max size M5 and make sure the head of the screw fits inside the guide.
*Inner rail can be demounted to facilitate assembly or maintenance. It is important that the rail is remounted only on its original telescopic slide.
System Load Capacity value refers to a pair of rails.
All dimensions in mm.
Product Information
Material: Cold-drawn steel profile, zinc plated
Extension: 100%
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | Weight/pc (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 250 | 254 | 450 | 0.35 | ||||
|
|
|
1 | 300 | 305 | 450 | 0.42 | ||||
|
|
|
1 | 350 | 356 | 450 | 0.49 | ||||
|
|
|
1 | 400 | 406 | 450 | 0.56 | ||||
|
|
|
1 | 450 | 457 | 450 | 0.63 | ||||
|
|
|
1 | 500 | 508 | 400 | 0.7 | ||||
|
|
|
1 | 550 | 558 | 360 | 0.77 | ||||
|
|
|
1 | 600 | 609 | 320 | 0.84 | ||||
|
|
|
1 | 650 | 660 | 290 | 0.91 | ||||
|
|
|
1 | 700 | 711 | 260 | 0.98 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
