3560 - 100% Extension

All dimensions in mm.

Product Information

Material: Slide members and component parts - stainless SUS304. Balls - SUS304.
Designation Closed Length Extension Length Load / Pair
254,00 264,00 600 N
304,80 315,00 600 N
355,60 366,00 600 N
406,40 416,00 600 N
457,20 467,00 600 N
508,00 518,00 600 N
558,80 569,00 500 N
609,60 620,00 450 N
660,40 670,00 400 N
711,20 721,00 320 N

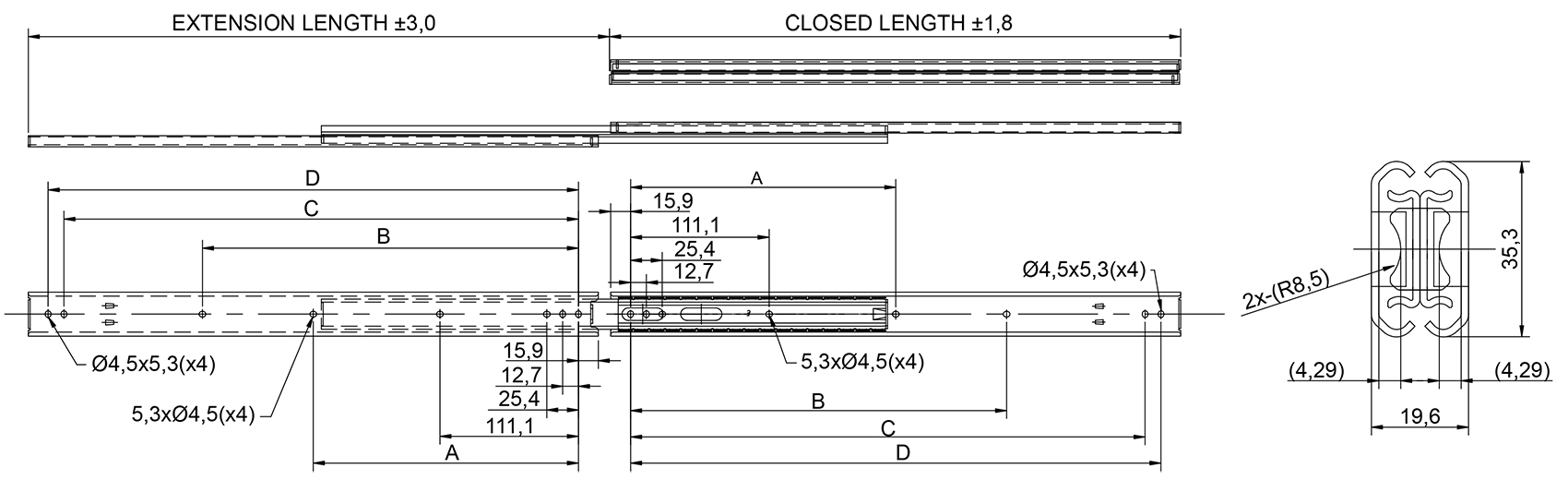

Technical Drawing
Designation A B C D
- - 209,60 222,30
- 149,10 260,40 273,10
- 199,90 311,20 323,90
- 250,70 362 374,70
212,60 301,50 412,80 425,50
238 352,30 463,60 476,30
263,40 403,10 514,40 527,10
288,80 453,90 565,20 577,90
314,20 504,70 616 628,70
339,60 555,50 666,80 679,50
