Rail
Standard zinc plated steel or Stainless Steel C-rail
Rollers for Solid Version
CONCENTRIC ROLLER
RSBN: Standard bearing steel
RXBN: Stainless bearing steel (AISI-440C)
ECCENTRIC ROLLER
RSBA: Standard bearing steel
RXBA: Stainless bearing steel (AISI-440C)
Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your need. Please contact Rollco for more information.
Read more
RSBN: Standard bearing steel
RXBN: Stainless bearing steel (AISI-440C)
ECCENTRIC ROLLER
RSBA: Standard bearing steel
RXBA: Stainless bearing steel (AISI-440C)
Standard slider is with 3 rollers. The rollers can also be mounted directly into your application or we can make special sliders according to your need. Please contact Rollco for more information.
Product Information
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg) | |
|---|---|---|---|---|---|---|---|
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.006 | ||||
|
|
|
1 | 0.022 | ||||
|
|
|
1 | 0.022 | ||||
|
|
|
1 | 0.022 | ||||
|
|
|
1 | 0.022 | ||||
|
|
|
1 | 0.07 | ||||
|
|
|
1 | 0.07 | ||||
|
|
|
1 | 0.07 | ||||
|
|
|
1 | 0.07 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

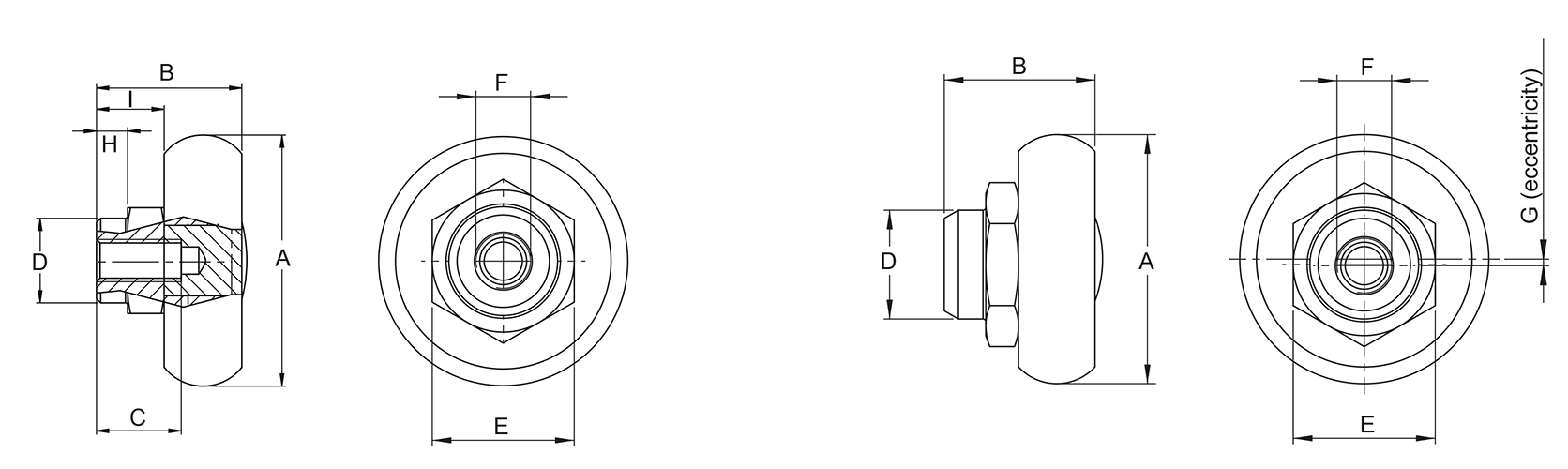

| Designation | Select all | CAD | Compare | Get quote | A | B | C | D | E | F | G | H | I | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
14 +0/-0.04 | 8.7 | 6 | 6 -0.02/-0.08 | 8 | M4 | - | 1.8 | 4.7 | ||||
|
|
|
14 +0/-0.04 | 8.7 | 6 | 6 -0.02/-0.08 | 8 | M4 | - | 1.8 | 4.7 | ||||
|
|
|
14 +0/-0.04 | 8.7 | 6 | 6 -0.02/-0.08 | 8 | M4 | 0.5 | 1.8 | 4.7 | ||||
|
|
|
14 +0/-0.04 | 8.7 | 6 | 6 -0.02/-0.08 | 8 | M4 | 0.5 | 1.8 | 4.7 | ||||
|
|
|
22.8 +0/-0.05 | 13.8 | 7 | 10 -0.04/-0.10 | 13 | M5 | - | 3.8 | 6.8 | ||||
|
|
|
22.8 +0/-0.05 | 13.8 | 7 | 10 -0.04/-0.10 | 13 | M5 | - | 3.8 | 6.8 | ||||
|
|
|
22.8 +0/-0.05 | 13.8 | 7 | 10 -0.04/-0.10 | 13 | M5 | 0.6 | 3.8 | 6.8 | ||||
|
|
|
22.8 +0/-0.05 | 13.8 | 7 | 10 -0.04/-0.10 | 13 | M5 | 0.6 | 3.8 | 6.8 | ||||
|
|
|
35.6 +0/-0.06 | 20.6 | 12 | 12 -0.04/-0.10 | 15 | M6 | - | 4.5 | 9.6 | ||||
|
|
|
35.6 +0/-0.06 | 20.6 | 12 | 12 -0.04/-0.10 | 15 | M6 | - | 4.5 | 9.6 | ||||
|
|
|
35.6 +0/-0.06 | 20.6 | 12 | 12 -0.04/-0.10 | 15 | M6 | 0.8 | 4.5 | 9.6 | ||||
|
|
|
35.6 +0/-0.06 | 20.6 | 12 | 12 -0.04/-0.10 | 15 | M6 | 0.8 | 4.5 | 9.6 |
-
-
Slider Solid Version
Standard zinc plated steel or stainless steel slider for C-rail, solid version
