Slider Solid Version
LSBE: Stainless steel body and standard steel rollers
LXBE: Stainless steel body and stainless steel rollers (AISI-440C)
Read more
LXBE: Stainless steel body and stainless steel rollers (AISI-440C)
Product Information
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Weight (kg) | Max. Permissible Radial Load Fmax (N) | Max. Permissible Axial Load Fmax (N) |
|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 0.04 | 300 | 170 | |||
|
|
|
1 | 0.17 | 800 | 400 | |||
|
|
|
2 | 0.60 | 1600 | 860 | |||
|
|
|
1 | 0.04 | 300 | 170 | |||
|
|
|
1 | 0.17 | 800 | 400 | |||
|
|
|
1 | 0.60 | 1600 | 860 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

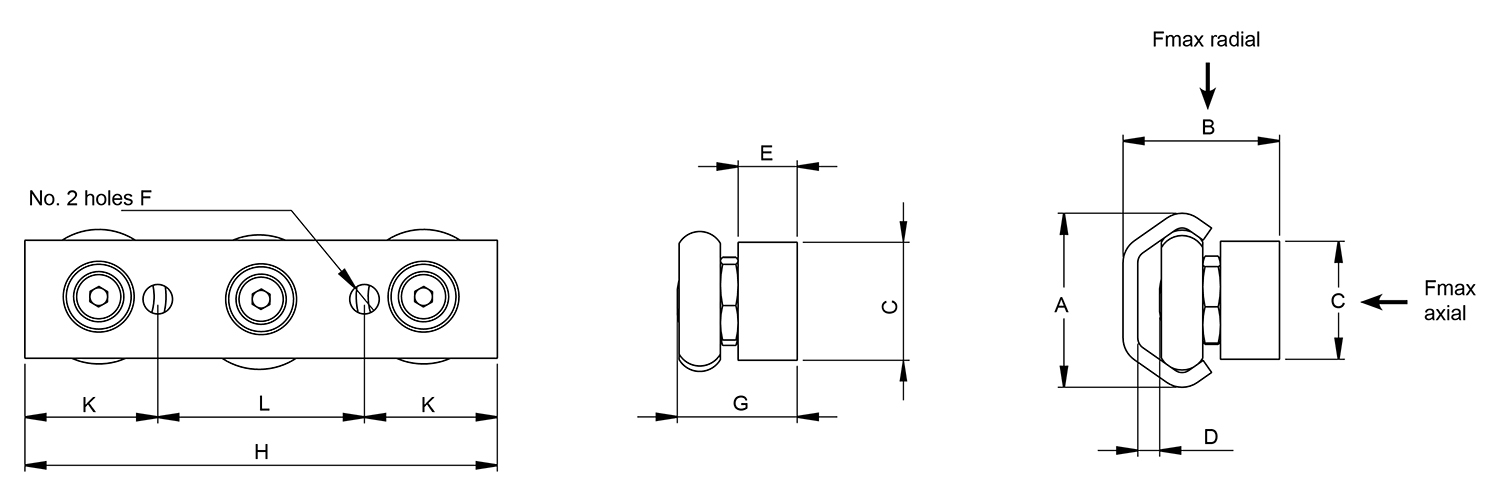

| Designation | Select all | CAD | Compare | Get quote | A | B | C | D | E | F | G | H | K | L |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
19.2 | 17.8 | 10 | 2.65 | 6 | M5 | 13.15 | 60 | 20 | 20 | |||
|
|
|
29.5 | 26.5 | 20 | 3.7 | 10 | M6 | 20.3 | 80 | 22.5 | 35 | |||
|
|
|
45.7 | 41 | 30 | 5.1 | 15 | M8 | 31.9 | 120 | 32.5 | 55 | |||
|
|
|
19.2 | 17.8 | 10 | 2.65 | 6 | M5 | 13.15 | 60 | 20 | 20 | |||
|
|
|
29.5 | 26.5 | 20 | 3.7 | 10 | M6 | 20.3 | 80 | 22.5 | 35 | |||
|
|
|
45.7 | 41 | 30 | 5.1 | 15 | M8 | 31.9 | 120 | 32.5 | 55 |
-
