RSKR

STOCK ITEM

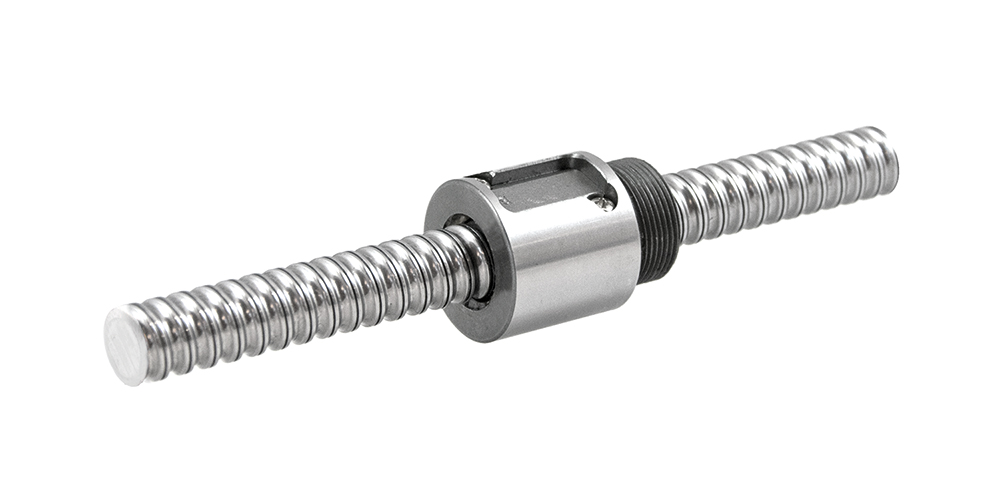

Single Nut, Cylindrical with Thread
Match with Screw shaft: SR.

Tolerance D: h10

Standard nuts are without any seals or scrapers. Other types on request.

All other dimensions in mm.
Download PDF
Technical Drawing
Designation Select all Lead Time * Dynamic load ratings Ca Static load ratings C0a
1 2109 N 2345 N
Compare
Get quote
1 6327 N 6798 N
Compare
Get quote
1 10291 N 11223 N
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all d0 x Lead A B L D
8 x 2,5 M15 x 1 7,50 26 17,50
Compare
Get quote
12 x 4 M20 x 1 10 34 25,50
Compare
Get quote
16 x 5 M26 x 1,5 12 42 32,50
Compare
Get quote
Designation Select all Ball diameter Turns x circuits
1,20 1 x 2,5
Compare
Get quote
2,38 1 x 3,5
Compare
Get quote
3,18 1 x 3,5
Compare
Get quote
