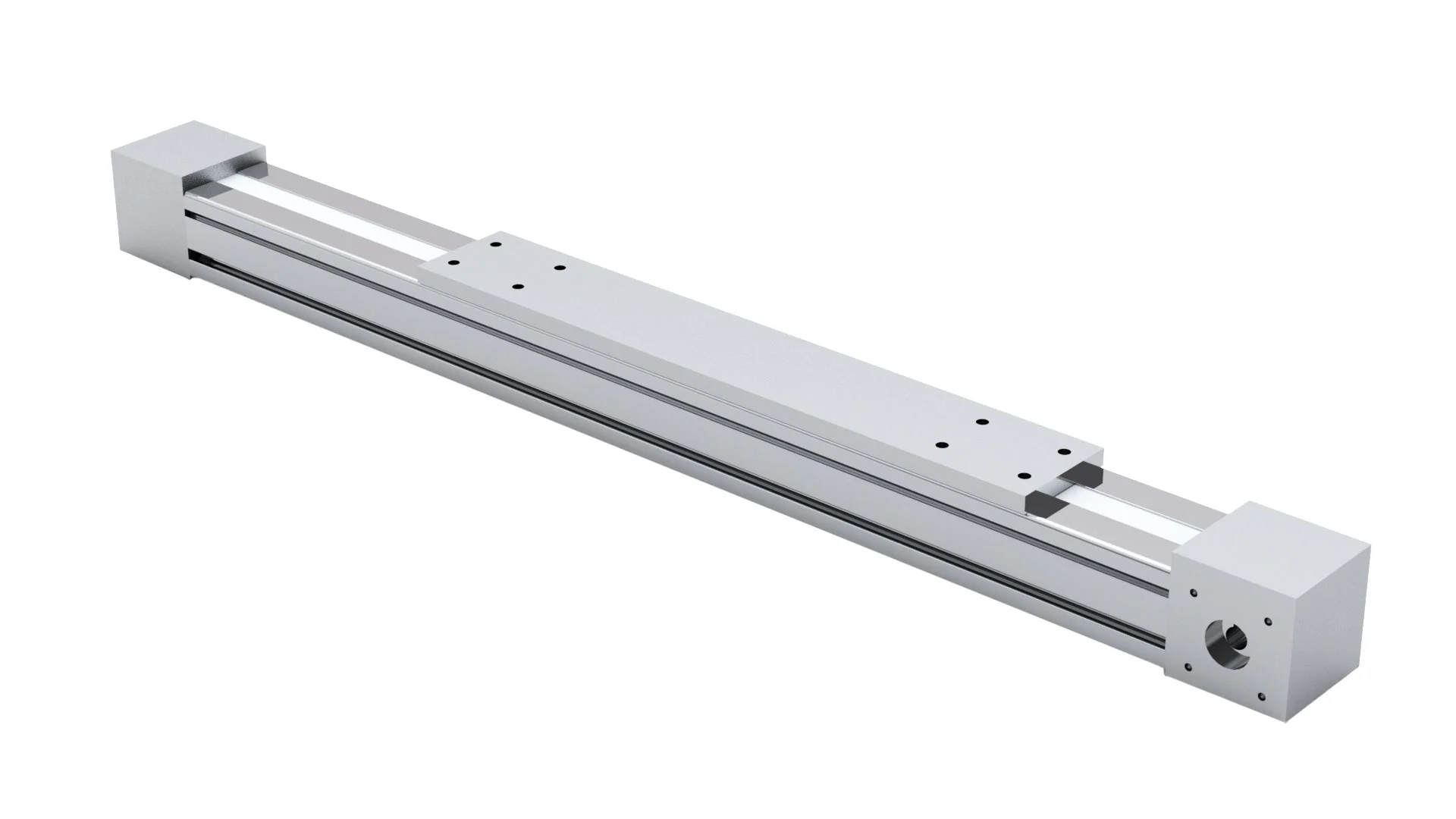

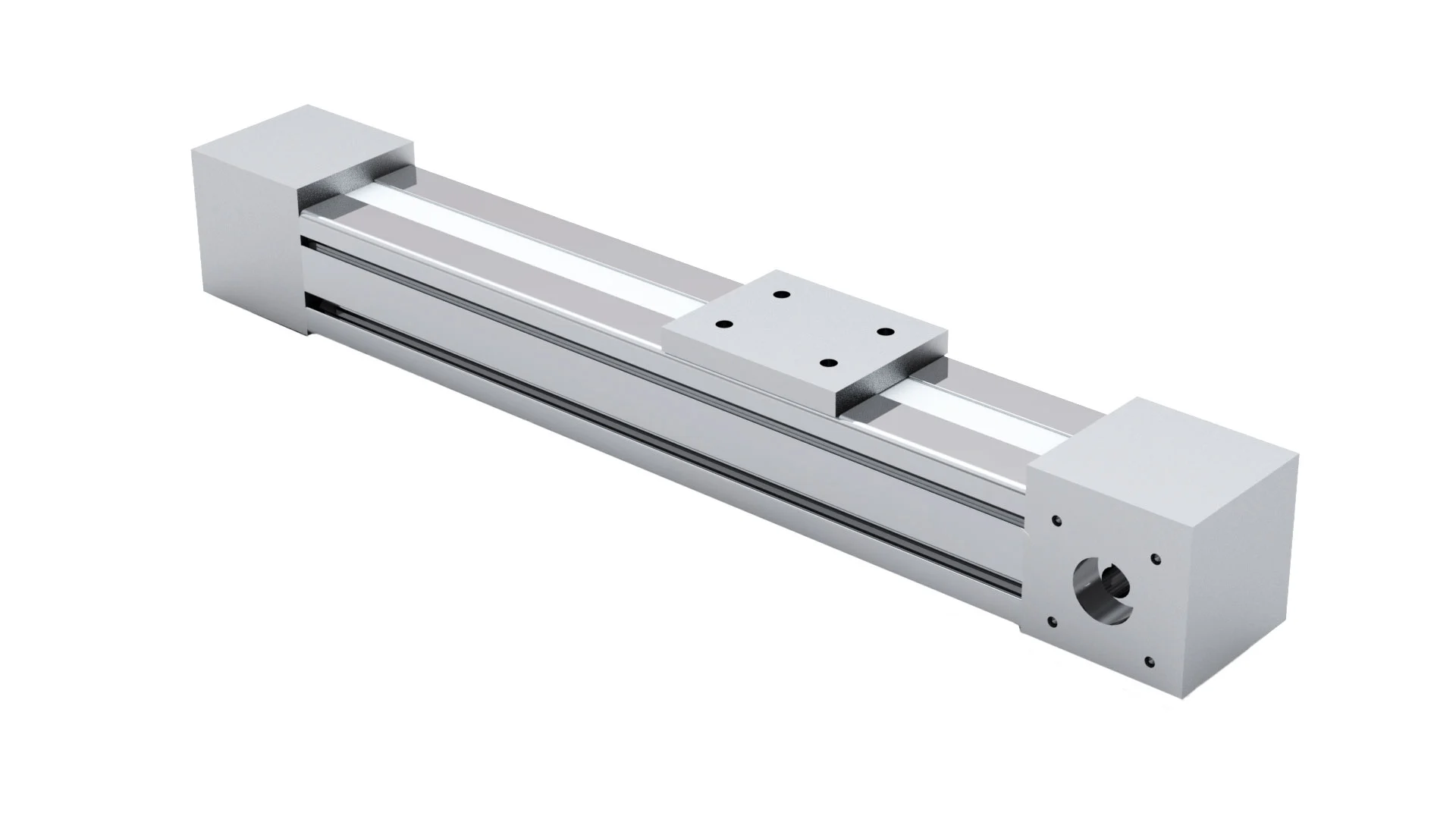

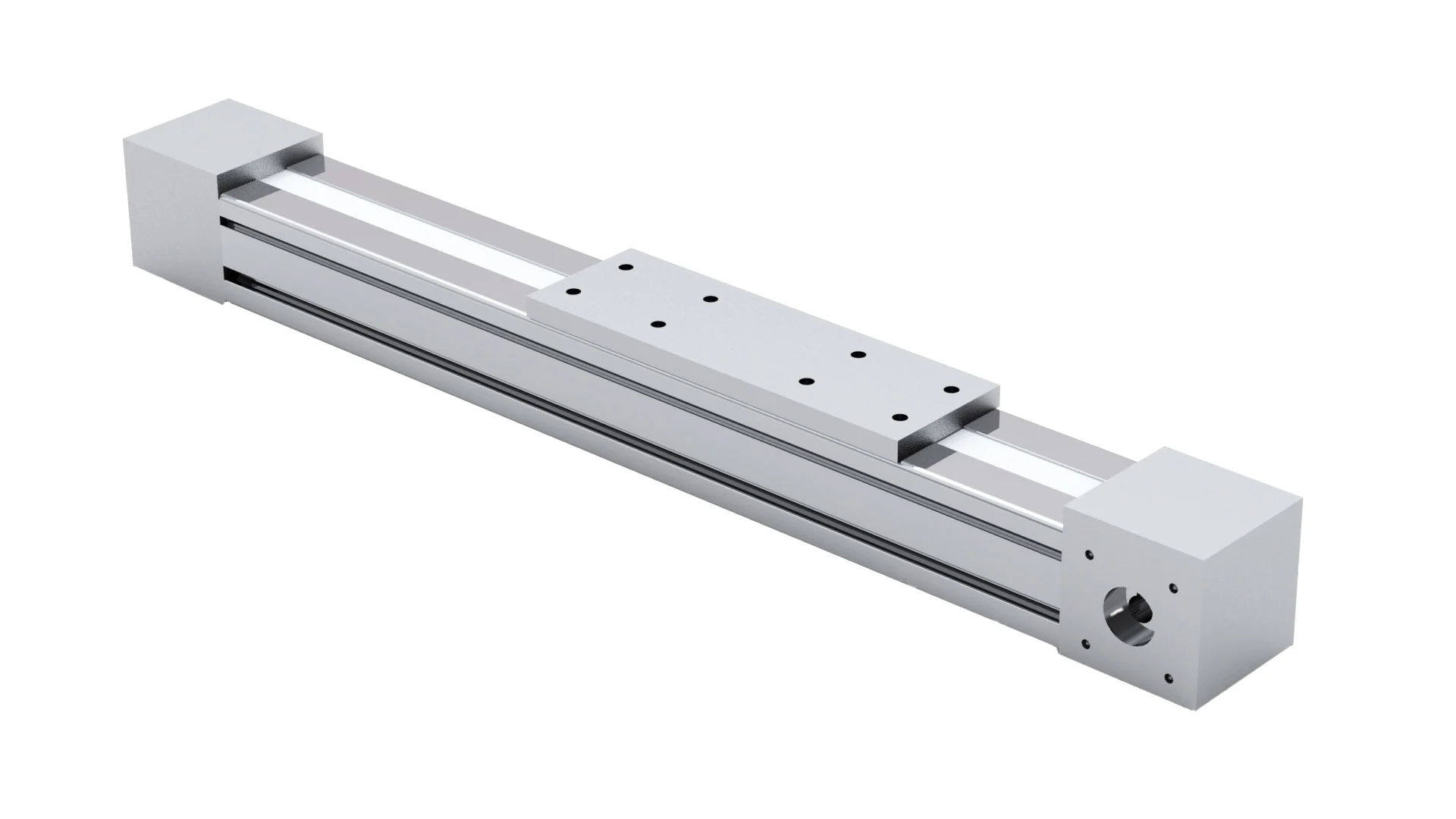

Linear Unit RHL80

LOCALLY MANUFACTURED

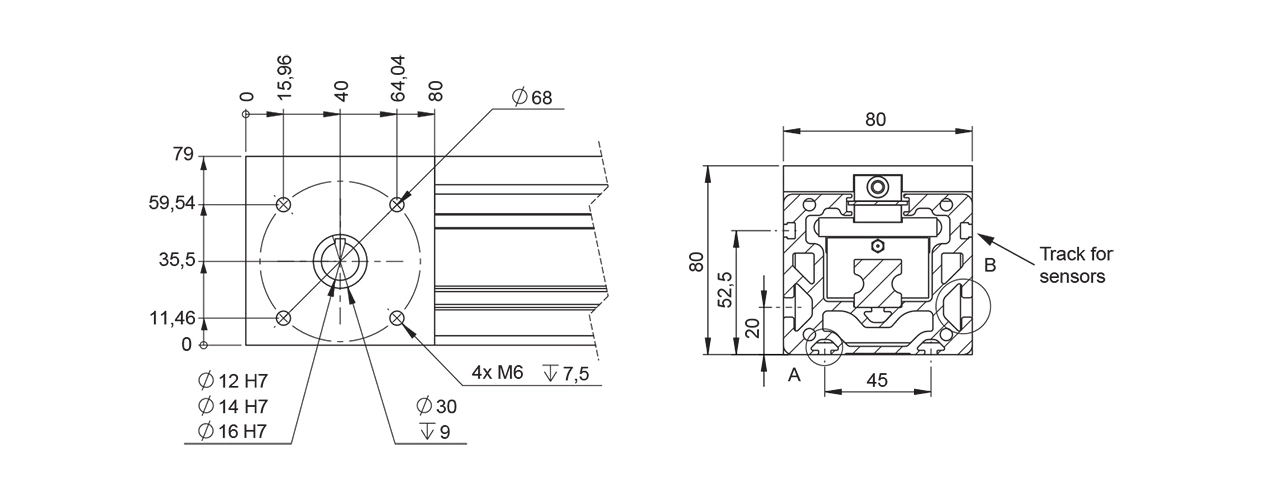

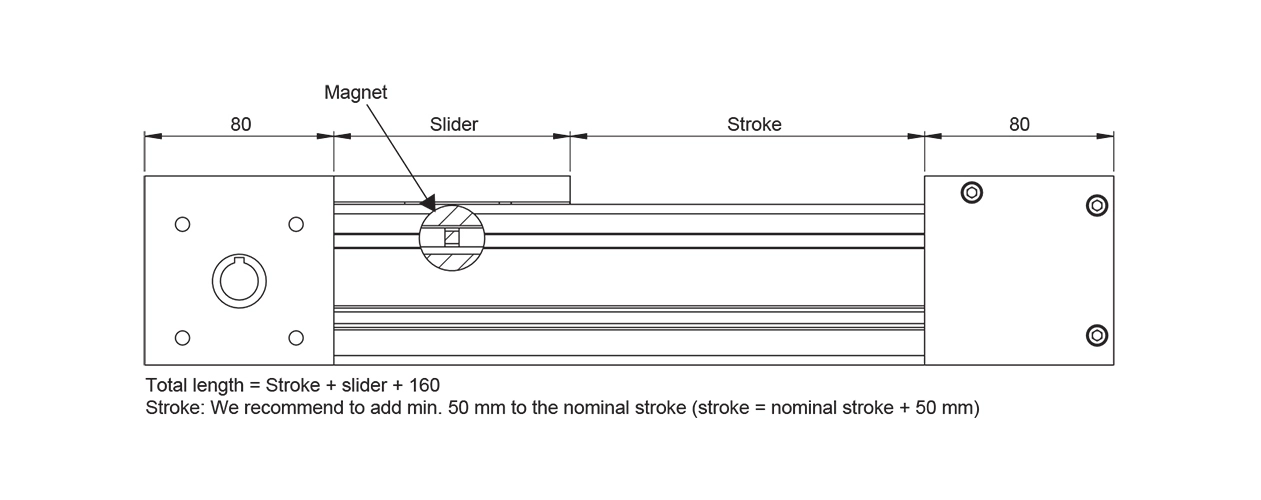

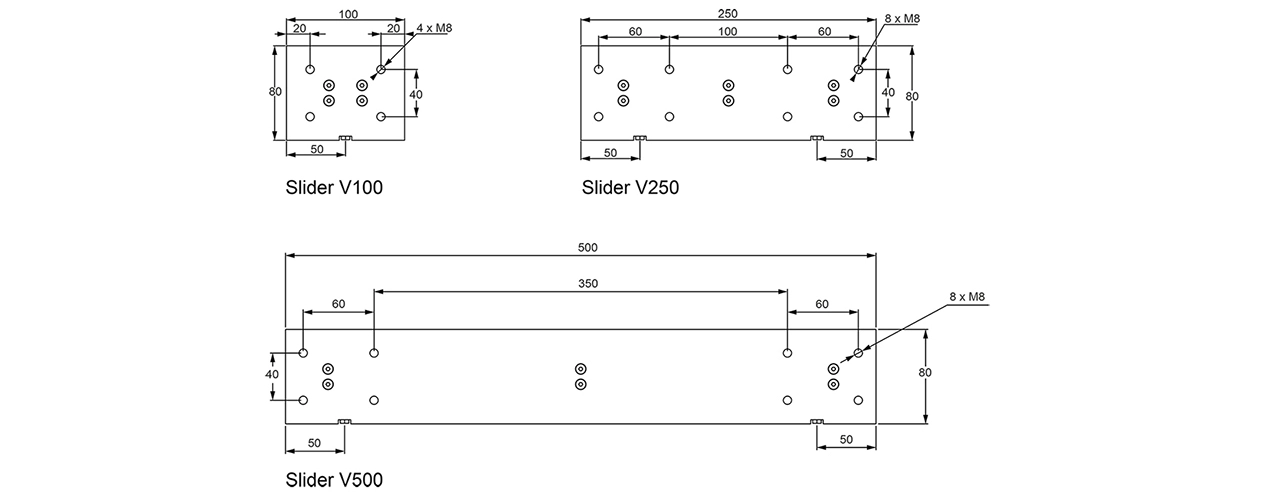

Dimensions in mm.

RHL is a complete linear unit with rail guide and toothed belt. The unit is delivered ready to mount and thereby saves both design and assembly time.

Linear Unit RHL is available in two sizes, RHL80 and RHL110. The units are based on aluminium profile and equipped with linear rail, belt and pulleys. The stroke length is selectable per millimetre from 0 up to 10 metres.

Rollco cut and assemble everything in our own workshop, which enables very short delivery times.

There are various accessories such as T-slots, angles and mounting plates in stock. We can also manufacture motor flanges and make other adjustments according to customer specifications.

Product characteristics:
• Compact unit
• Compatible with structural systems
• Possible to use in X-Y-Z systems
• Customized versions available upon request

For higher values than stated below, please contact Rollco.
The No load torque is a typical value for a new unit and will normally decrease with use. For extremely long strokes (above 6 meter) and for units oriented horizontal and with the slider oriented to the side, the no load torque value may exceed the typical values stated.

Product Information

Max. Speed (m/s): 2.5
Max. Drive Torque (Nm): 17
Pulley radius: 28.65
Belt Type: AT 5
Belt Width: 25
Tooth pitch: 5
Max. Traction Load Fx (N): 600
Belt Breaking Strength (N): 6370
Stroke for shaft revolution: 180
No Load Torque (Nm): 1
Add. Mass of Complete Unit for Each +100 mm Stroke (kg): 0.8
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD
Select columns
CAD Compare Get quote
2 100 5.2 0.8 1000 500 50 50 50
2 250 7.4 1.7 2000 1000 100 200 200
2 500 10.1 2.6 2000 1000 100 450 450

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
