PNCE
Based standard ISO 15552 w. ball screw and non-rotating piston rod for high performance.

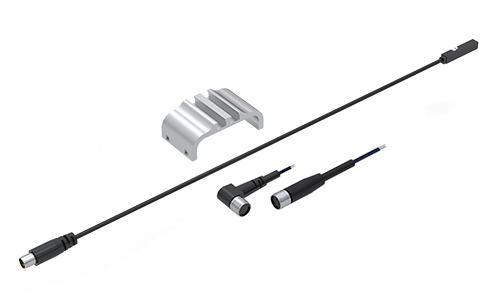

Magnetic Field Sensors
Dimension in mm.

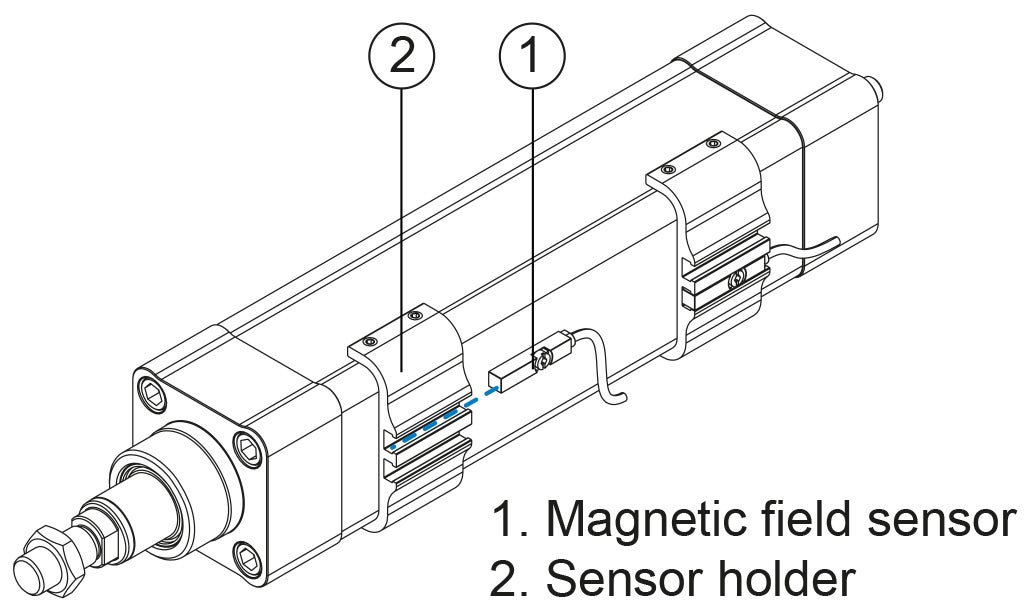

Note! Mounting of the Magnetic field sensor on PNCE requires a HPNCE sensor holder.
Read more
Note! Mounting of the Magnetic field sensor on PNCE requires a HPNCE sensor holder.

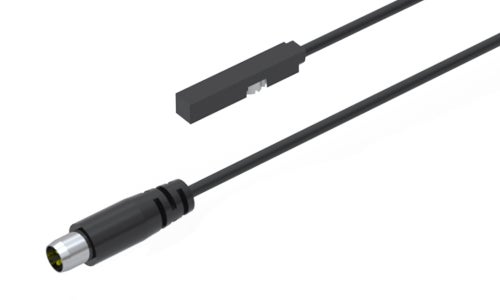

Product Information
Sensor Type: GMR sensor
Switching function: NC or NO
Output: PNP
Operating Voltage (V DC): 10 ~ 28
Max. Switching Current (mA): 200
Max. Power Rating (W): 5.5
Voltage drop: 1.5 V / 200mA max.
Current consumption: 10mA / 24 V max.
Switching Frequency (Hz): 1000
Ambient Temperature (°C): -10 ~ +70
Shock/vibration: 50 G / 9 G
Protection Class: IP67
LED indicator: Yellow
Electrical connection: M8, 3-pin
Cable material length: PU - 0.3m
Extension cable: Energy chain compliant
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Type | Cable Length (m) | |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | PNCE series | Magnetic sensor | - | ||||
|
|
|
2 | PNCE series | Magnetic sensor | - | ||||
|
|
|

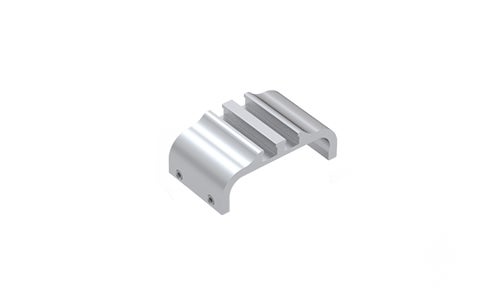

2 | PNCE 32 | Sensor holder | - | ||||
|
|
|
2 | PNCE 40 | Sensor holder | - | ||||
|
|
|
2 | PNCE 50 | Sensor holder | - | ||||
|
|
|
2 | PNCE 63 | Sensor holder | - | ||||
|
|
|
2 | PNCE 80 | Sensor holder | - | ||||
|
|
|
2 | PNCE 100 | Sensor holder | - | ||||
|
|
|

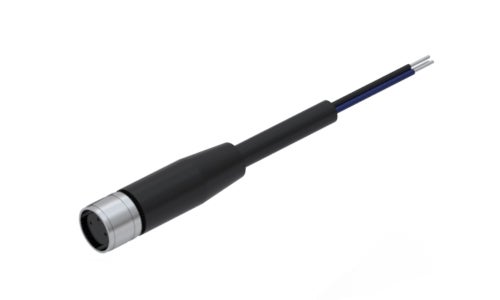

2 | PNCE series | Straight connector extension cable | 2 | ||||
|
|
|
2 | PNCE series | Straight connector extension cable | 5 | ||||
|
|
|

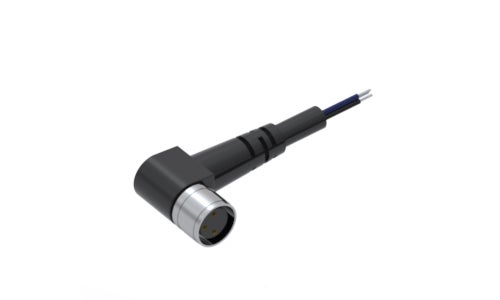

2 | PNCE series | Angled connector extension cable | 2 | ||||
|
|
|
2 | PNCE series | Angled connector extension cable | 5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
- | - | - | - | - | ||||
|
|
|
- | - | - | - | - | ||||
|
|
|
30 | 53 | 6.5 | 19.5 | 10 | ||||
|
|
|
30 | 60 | 6.5 | 19.5 | 10 | ||||
|
|
|
30 | 71 | 6.5 | 22.5 | 10 | ||||
|
|
|
30 | 81 | 6.5 | 22.5 | 10 | ||||
|
|
|
30 | 98.3 | 6 | 25 | 10 | ||||
|
|
|
30 | 115.4 | 6 | 25 | 10 | ||||
|
|
|
- | - | - | - | - | ||||
|
|
|
- | - | - | - | - | ||||
|
|
|
- | - | - | - | - | ||||
|
|
|
- | - | - | - | - |
