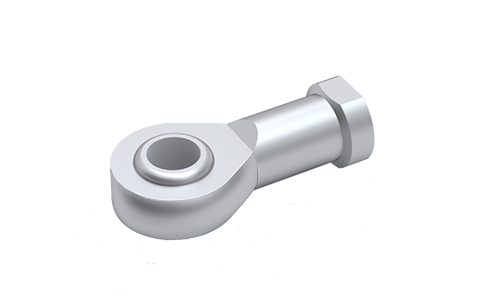

SGS

Dimensions in mm.
Read more

Product Information

Material: Galvanized or stainless steel AISI 304
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Material Fmax (N) Mass (kg)
Get quote 2 SGS 32 PNCE 32 Galvanized steel F PNCE 0.08
Get quote 2 SGS 32 CR PNCE 32 Stainless steel AISI 304 F PNCE 0.08
Get quote 2 SGS 40 PNCE 40 Galvanized steel F PNCE 0.11
Get quote 2 SGS 40 CR PNCE 40 Stainless steel AISI 304 F PNCE 0.11
Get quote 2 SGS 50 PNCE 50 Galvanized steel F PNCE 0.22
Get quote 2 SGS 50 CR PNCE 50 Stainless steel AISI 304 F PNCE 0.22
Get quote 2 SGS 63 PNCE 63 Galvanized steel F PNCE 0.22
Get quote 2 SGS 63 CR PNCE 63 Stainless steel AISI 304 F PNCE 0.22
Get quote 2 SGS 80 PNCE 80 Galvanized steel F PNCE 0.41
Get quote 2 SGS 80 CR PNCE 80 Stainless steel AISI 304 F PNCE 0.41
Get quote 2 SGS 100 PNCE 100 Galvanized steel F PNCE 0.41
Get quote 2 SGS 100 CR PNCE 100 Stainless steel AISI 304 F PNCE 0.41

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote M L1 L2 L3 L4 L5 D1 D2 R CH Z
Get quote Ø M10 × 1.25 57 43 14 10.5 20 Ø 10 (H7) Ø 19 14 17 13°
Get quote Ø M10 × 1.25 57 43 14 10.5 20 Ø 10 (H7) Ø 19 14 17 13°
Get quote Ø M12 × 1.25 66 50 16 12 22 Ø 12 (H7) Ø 22 16 19 13°
Get quote Ø M12 × 1.25 66 50 16 12 22 Ø 12 (H7) Ø 22 16 19 13°
Get quote Ø M16 × 1.5 85 64 21 15 28 Ø 16 (H7) Ø 27 21 22 15°
Get quote Ø M16 × 1.5 85 64 21 15 28 Ø 16 (H7) Ø 27 21 22 15°
Get quote Ø M16 × 1.5 85 64 21 15 28 Ø 16 (H7) Ø 27 21 22 15°
Get quote Ø M16 × 1.5 85 64 21 15 28 Ø 16 (H7) Ø 27 21 22 15°
Get quote Ø M20 × 1.5 102 77 25 18 33 Ø 20 (H7) Ø 34 25 30 14°
Get quote Ø M20 × 1.5 102 77 25 18 33 Ø 20 (H7) Ø 34 25 30 14°
Get quote Ø M20 × 1.5 102 77 25 18 33 Ø 20 (H7) Ø 34 25 30 14°
Get quote Ø M20 × 1.5 102 77 25 18 33 Ø 20 (H7) Ø 34 25 30 14°
  • SG

    Piston rod accessory SG, galvanized or stainless steel AISI 30

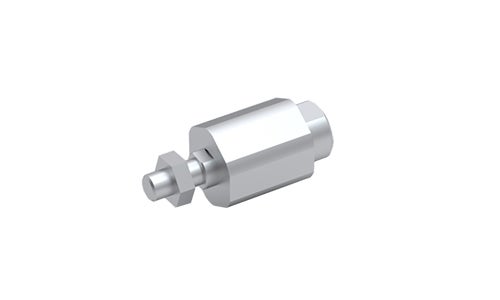

  • FK
