MK Hand Clamps

Pneumatic Clamping element, designed to be used for holding a position when using Linear Rail Guides.

For other types contact Rollco.

Dimensions in mm.
Download PDF

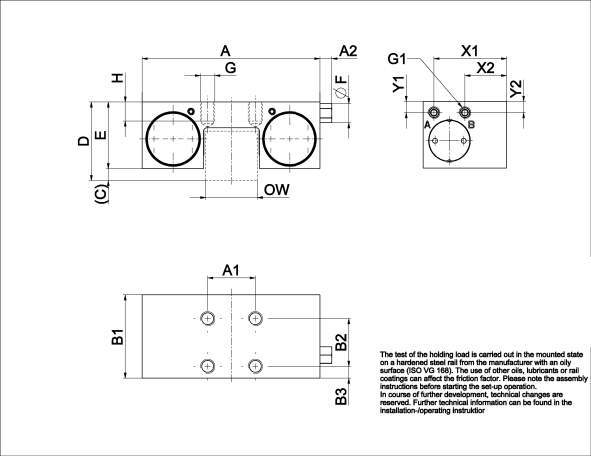

Technical Drawing
Designation Select all Lead Time * Fixing power (N) Operating pressure (bar) Max. operating pressure (bar) Installation way
2 650 6 6,50 from above
Compare
Get quote
2 700 6 6,50 from above
Compare
Get quote
2 1200 6 6,50 from above
Compare
Get quote
2 1750 6 6,50 from above
Compare
Get quote
2 2000 6 6,50 from above
Compare
Get quote
2 2250 6 6,50 from above
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all OW D T A B1 C X E A1 A2 B2 B3 G H F W1 (SW air filter) G1 (air connection) X1 (air filter horizontal / mm) Y1 (air filter vertical / mm) Y2 (air connection vertical / mm)
13 24 0 55 39 2,50 24 21,50 15 5 15 15,50 M4 4,50 8 7 M5 34 17 6,10
Compare
Get quote
16,75 30 2 66 39 3,50 28 24,50 20 6 20 10 M5 4,20 8 7 M5 35 21 5,20
Compare
Get quote
19,75 36 0 75 35 8 36 28 20 5 20 5 M6 8 8 7 M5 30,50 4,70 4,70
Compare
Get quote
24,60 42 0 90 39 7 42 35 22 5 22 8,50 M8 7 8 7 M5 24,50 5,20 5,20
Compare
Get quote
31,80 48 0 100 39 11,50 48 36,50 24 5 24 7,50 M10 10 8 7 M5 20 5,20 5,20
Compare
Get quote
42 60 0 120 49 16,50 60 43,50 26 5 26 11,50 M10 15 8 7 M5 29,50 11 11
Compare
Get quote
