MKS Clamping Element

STOCK ITEM

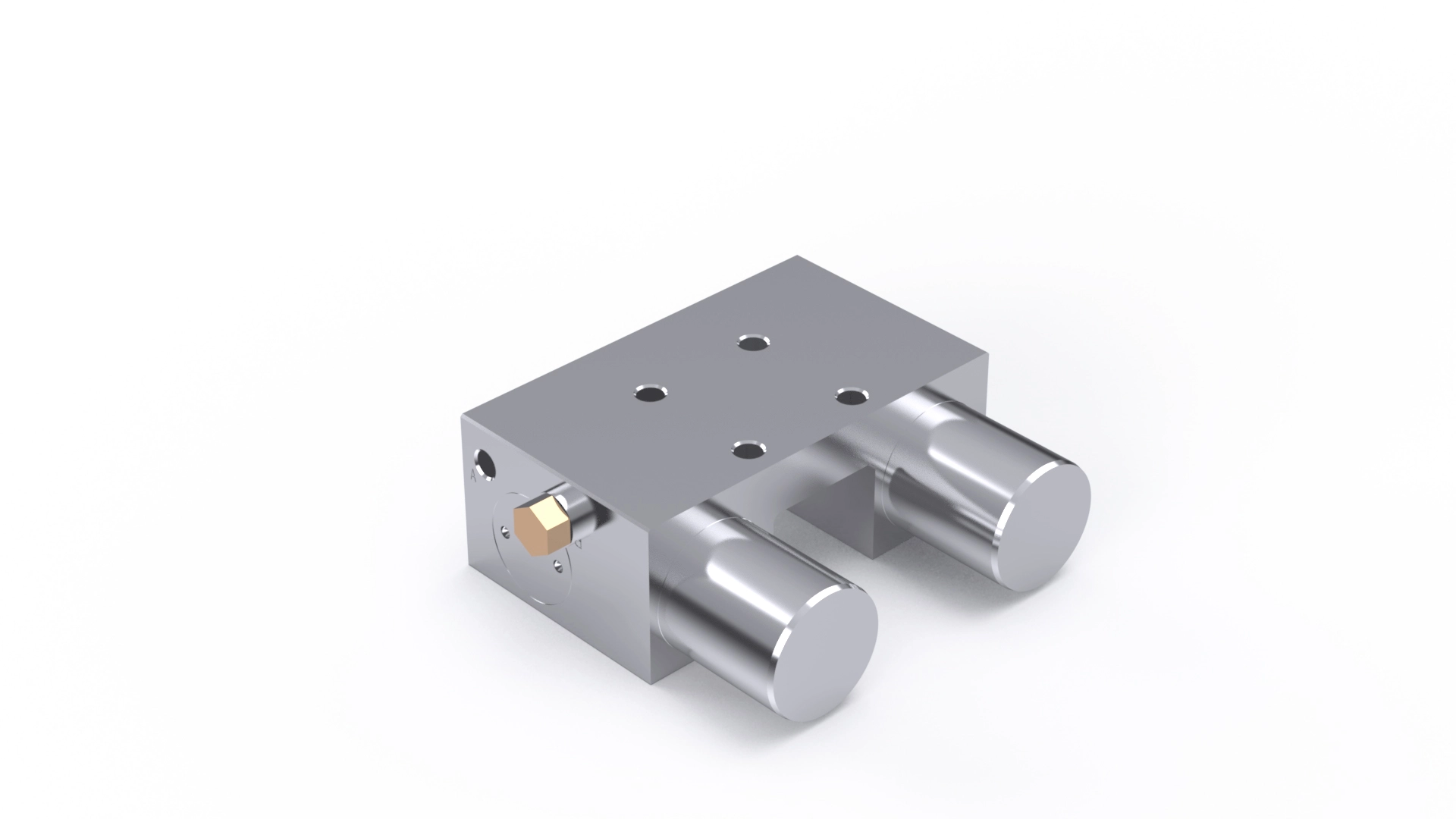

Pneumatic Clamping element, designed to be used for holding a position when using Linear Rail Guides.
Energize to open (NC).

The holding forces may be in-creased by means of a PLUS connection, provided that this is listed under the technical data, by using the pneumatic pressure support of the spring accumulator.

More types are available, contact Rollco for further information.

Compatible with Linear Rail SBI only.

Dimensions in mm.
Download PDF code.product.loadingpdf
+ Tilføj til PDF-katalog

Product Information

Temperature: -10 - 70°C
Linear_Rail_SBI_Technical_Information.pdf
Linear_Rail_SBI_OrderCodes.pdf
MKS_MKRS_Installation_and_operating_instruction.pdf
Designation Select all Lead Time * Fixing force (N) Min. operating pressure (bar) Operating pressure (bar) Max. operating pressure (bar) Installation way PLUS-connection Fixing force w. PLUS-connection (N) Compatible with CAD Compare
/storage/D4A75B9A13EB2C16B4A9EFC95182F71BF96F8C8CCF271BD0D3A1B8678B60FD3A/d069678ef185496ab18bf3c29ca89262/stp/media/78448b17f89143babbb89f9ce1702242/Clamping-element-MKS1501A-Rollco.stp 1 400 5.5 6 6.5 from above possible 1300 SBI15, SBI15-B
/storage/AB864E2C55B7105D1B101F2761D1C689457BDE268899CFB53A1044759DB6B0D8/f37b293826314d4b9fa722303ccd0889/stp/media/34a25417ad4c410b8fdf7ff1131661c1/Clamping-element-MKS2001A-Rollco.stp 1 600 5.5 6 6.5 from above possible 1300 SBI20, SBI20-B
/storage/4D6B32B22DC690D39B84260E204602D74394FBF575D980C1AB2090A916D8C3FB/af51f32122df4032a99daf0f92c78d8f/stp/media/4f843945216a4b05bab3c5337eaf2e91/Clamping-element-MKS2501A-Rollco.stp 1 750 5.5 6 6.5 from above possible 1300 SBI25, SBI25-B
/storage/D3439CDA63999EBABCB71B62E61C08774F431FC7C2AFB09F28D03E1518F51B32/f85d5e4707bb4d9aaa90538dd606aca5/stp/media/6a2c2bdebe374f4eba0965996f480ed2/Clamping-element-MKS3001A-Rollco.stp 2 1050 5.5 6 6.5 from above possible 2600 SBI30, SBI30-B
/storage/F66FD388A43A1EAAEC5A5630AEDAB96975765DEF7C2F65A3893B5336C838B9D6/f23af1c2e97549cdba92d912276f8355/stp/media/7f6a6d141fff4637ac4341b30b496281/Clamping-element-MKS3501A-Rollco.stp 1 2000 5.5 6 6.5 from above possible 2200 SBI35, SBI35-B
/storage/6355D4352A50EC2452C8252BA7F340748E47CE1E312D2DA3C348F48301D2B904/52408797d31441d88aec5518e09f4bbc/stp/media/c1a2dce972944edf9b12a903a79aa1ab/Clamping-element-MKS4501A-Rollco.stp 2 2250 5.5 6 6.5 from above possible 3300 SBI45, SBI45-B
/storage/03683FE1B6C102BD2E49CE0F0D20308B41ED5034DB13134AA883276385541F68/e82b64c45e054e4e92187ee899c277bd/stp/media/4f012210a821434db7758baad60de82e/Clamping-element-MKS5501A-Rollco.stp 2 2250 5.5 6 6.5 from above possible 4400 SBI55, SBI55-B
/storage/9EFF7E3A2666AC33DBDC5A639F2A3EB49FD6CC0ADC544DAE7C44222C1CC1E23B/b8d370f912164fd58e900925178760be/stp/media/856ea9b3984443f3afa7ba15a5fc5205/Clamping-element-MKS6501A-Rollco.stp 2 1450 5.5 6 6.5 from above possible 3300 SBI65, SBI65-B

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

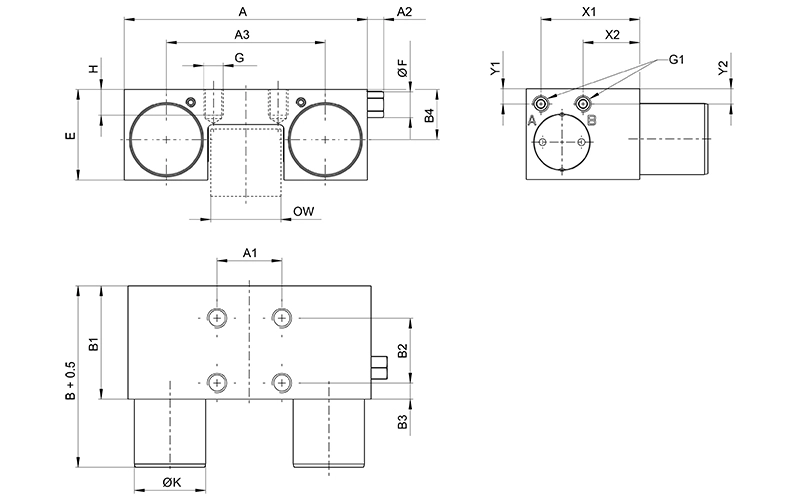

Designation Select all OW D T A B1 C X E A1 A2 A3 B B2 B3 B4 G H F G1 (air connection) X1 (air filter horizontal / mm) Y1 (air filter vertical / mm) X2 (air connection horizontal / mm) Y2 (air connection vertical / mm) K CAD Compare
/storage/D4A75B9A13EB2C16B4A9EFC95182F71BF96F8C8CCF271BD0D3A1B8678B60FD3A/d069678ef185496ab18bf3c29ca89262/stp/media/78448b17f89143babbb89f9ce1702242/Clamping-element-MKS1501A-Rollco.stp 15 24 0 55 39 2.5 24 21.5 15 5 34 58 15 15.5 12 M4 4.5 8 M5 34 17 34 5.9 16
/storage/AB864E2C55B7105D1B101F2761D1C689457BDE268899CFB53A1044759DB6B0D8/f37b293826314d4b9fa722303ccd0889/stp/media/34a25417ad4c410b8fdf7ff1131661c1/Clamping-element-MKS2001A-Rollco.stp 20 30 2 66 39 2.5 28 25.5 20 6 43 61 20 5 14.4 M5 5.5 8 M5 34 6 17.1 6 20
/storage/4D6B32B22DC690D39B84260E204602D74394FBF575D980C1AB2090A916D8C3FB/af51f32122df4032a99daf0f92c78d8f/stp/media/4f843945216a4b05bab3c5337eaf2e91/Clamping-element-MKS2501A-Rollco.stp 23 36 2 75 35 6 34 28 20 5 49 56 20 5 15.5 M6 8 8 M5 30.5 4.7 17.5 4.7 22
/storage/D3439CDA63999EBABCB71B62E61C08774F431FC7C2AFB09F28D03E1518F51B32/f85d5e4707bb4d9aaa90538dd606aca5/stp/media/6a2c2bdebe374f4eba0965996f480ed2/Clamping-element-MKS3001A-Rollco.stp 28 42 0 90 39 7 42 35 22 5 58 68 22 8.5 20.5 M8 10 8 M5 24.5 5.2 14.5 5.2 25
/storage/F66FD388A43A1EAAEC5A5630AEDAB96975765DEF7C2F65A3893B5336C838B9D6/f23af1c2e97549cdba92d912276f8355/stp/media/7f6a6d141fff4637ac4341b30b496281/Clamping-element-MKS3501A-Rollco.stp 34 48 4 100 39 7.5 44 36.5 24 5 68 67 24 7.5 20.5 M8 10 8 M5 20 5.5 9 5.2 28
/storage/6355D4352A50EC2452C8252BA7F340748E47CE1E312D2DA3C348F48301D2B904/52408797d31441d88aec5518e09f4bbc/stp/media/c1a2dce972944edf9b12a903a79aa1ab/Clamping-element-MKS4501A-Rollco.stp 45 60 6 120 49 10.5 54 43.5 26 5 78.8 82 26 11.5 26.8 M10 15 8 M5 29.5 11 19.5 11 30
/storage/03683FE1B6C102BD2E49CE0F0D20308B41ED5034DB13134AA883276385541F68/e82b64c45e054e4e92187ee899c277bd/stp/media/4f012210a821434db7758baad60de82e/Clamping-element-MKS5501A-Rollco.stp 53 70 6 128 49 15.5 64 48.5 30 5 87 82 30 9.5 30.5 M10 18 8 M5 29.5 14.5 19.5 14.5 30
/storage/9EFF7E3A2666AC33DBDC5A639F2A3EB49FD6CC0ADC544DAE7C44222C1CC1E23B/b8d370f912164fd58e900925178760be/stp/media/856ea9b3984443f3afa7ba15a5fc5205/Clamping-element-MKS6501A-Rollco.stp 63 90 0 138 49 27 90 63 30 5 96.8 82 30 9.5 46 M10 15 8 M5 37 32 20 30 30
