Adapter Plate for RCS Clamping Element
To compensate for different block heights
RCS Clamping Element
Clamping elements are designed to be used for holding a position when using SBI Linear Rail Guides.
For other types contact Rollco.
Compatible with Linear Rail SBI only.

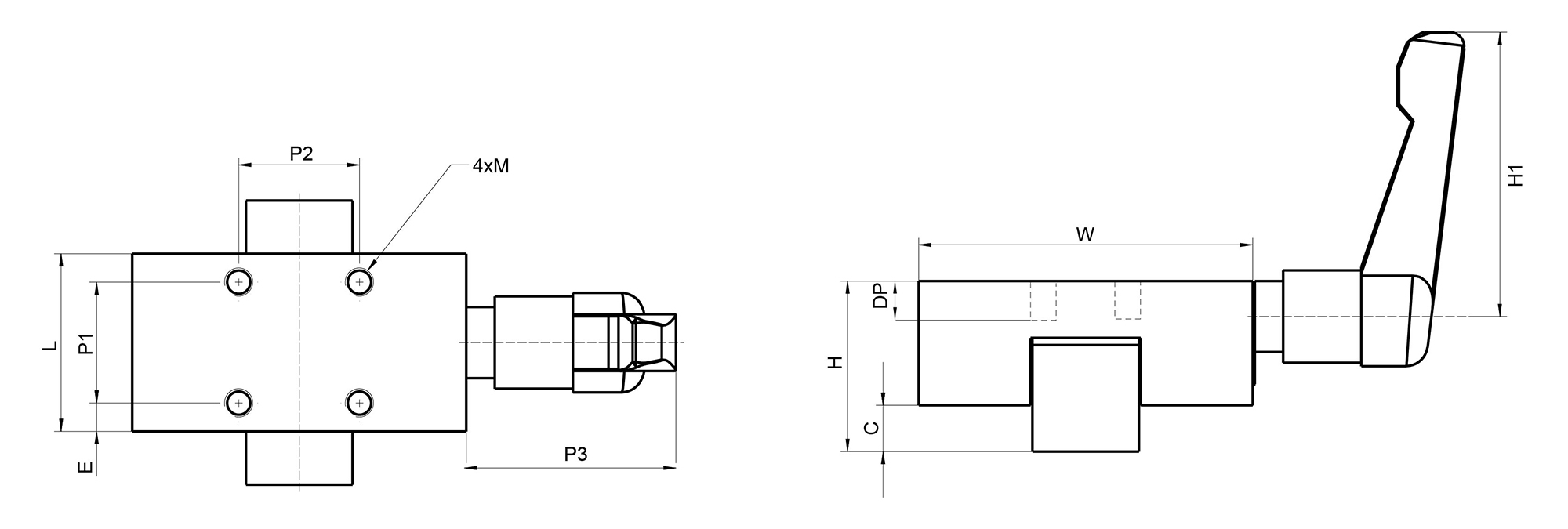

Dimensions in mm.
For other types contact Rollco.
Compatible with Linear Rail SBI only.
Dimensions in mm.
Download PDF
code.product.loadingpdf
+
Tilføj til PDF-katalog
Product Information
| Designation | Select all | Lead Time * | H1 | MxDP | P1 | P2 | P3 | E | Tightening Torque (Nm) | Clamping Force (N) | Compatible with | Remark | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/3B241956A96FB2E5D91C22DEC2D56AA234C90D69CDA3D6FC4C3B66D332F9F0CD/a1862b57a5c44afd9b152df2b5dd01bb/step/media/e8904b5b03a045168a491f71cdfb228d/Clamping-element-RCS-15-Rollco.step | 1 | 45 | M4x6 | 17 | 17 | 41 | 4 | 5 | 1200 | SBI15, SBI15-B | Use Distance Plate RCP15-4 for SBI15SL |
|
||
|
|
/storage/1BECE0C8E14AEF4AE4415ACF197DB247CF7F7D6D014406DD6D8ACB2E25ED8E91/355d9709da3d46c7bc56e084c7ffdbf4/step/media/0bd40883337147e8b7b2953e915413f5/Clamping-element-RCS-20-Rollco.step | 1 | 45 | M5x6 | 15 | 15 | 41 | 4.5 | 5 | 1200 | SBI20, SBI20-B | Use Distance Plate RCP20-2 for SBI20FL, SBI20SL, SBI20FLL, SBI20SLL |
|
||
|
|
/storage/6B37C7196D8E939ED3DFCC5490DFDF5EF6EBBC645CE6E1C33C8D45A5A9E48FD2/65615930eb8f43e5949ccec4cf8c2140/step/media/c7556cc67d8145299a9f8539cbb0eedd/Clamping-element-RCS-25-Rollco.step | 1 | 64 | M6x8 | 20 | 20 | 52 | 5 | 7 | 1200 | SBI25, SBI25-B | Use Distance Plate RCP25-4 for SBI25SL, SBI25SLL |
|
||
|
|
/storage/700E63EAB1180E934F4C8B9DDA4F727F81311EA820E6DBCAD64FAF74552819AC/3a5711184cba48df8345019f84f3a5a3/step/media/b39220c4e08f44a7a5b33f911fbb5e11/Clamping-element-RCS-30-Rollco.step | 1 | 64 | M6x14 | 22 | 22 | 52 | 8.5 | 15 | 2000 | SBI30, SBI30-B | Use Distance Plate RCP30-3 for SBI30SL, SBI30SLL |
|
||
|
|
/storage/F6B533CAE462296F4D3A6636A920B0B288978439FB7E81076C34CEA6EACAC87A/089cd70c1586459f8b1f615b969ce852/step/media/b3febb0cf2e34c2ba1c4844f1c2643f1/Clamping-element-RCS-35-Rollco.step | 1 | 83 | M8x14 | 24 | 24 | 67 | 7.5 | 15 | 2000 | SBI35, SBI35-B | Use Distance Plate RCP35-7 for SBI35SL, SBI35SLL |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | C | E | H | H1 | L | W | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/3B241956A96FB2E5D91C22DEC2D56AA234C90D69CDA3D6FC4C3B66D332F9F0CD/a1862b57a5c44afd9b152df2b5dd01bb/step/media/e8904b5b03a045168a491f71cdfb228d/Clamping-element-RCS-15-Rollco.step | 6.5 | 4 | 24 | 45 | 25 | 47 |
|
||
|
|
/storage/1BECE0C8E14AEF4AE4415ACF197DB247CF7F7D6D014406DD6D8ACB2E25ED8E91/355d9709da3d46c7bc56e084c7ffdbf4/step/media/0bd40883337147e8b7b2953e915413f5/Clamping-element-RCS-20-Rollco.step | 7 | 4.5 | 30 | 45 | 24 | 60 |
|
||
|
|
/storage/6B37C7196D8E939ED3DFCC5490DFDF5EF6EBBC645CE6E1C33C8D45A5A9E48FD2/65615930eb8f43e5949ccec4cf8c2140/step/media/c7556cc67d8145299a9f8539cbb0eedd/Clamping-element-RCS-25-Rollco.step | 7 | 5 | 36 | 64 | 30 | 70 |
|
||
|
|
/storage/700E63EAB1180E934F4C8B9DDA4F727F81311EA820E6DBCAD64FAF74552819AC/3a5711184cba48df8345019f84f3a5a3/step/media/b39220c4e08f44a7a5b33f911fbb5e11/Clamping-element-RCS-30-Rollco.step | 9 | 8.5 | 42 | 64 | 39 | 90 |
|
||
|
|
/storage/F6B533CAE462296F4D3A6636A920B0B288978439FB7E81076C34CEA6EACAC87A/089cd70c1586459f8b1f615b969ce852/step/media/b3febb0cf2e34c2ba1c4844f1c2643f1/Clamping-element-RCS-35-Rollco.step | 13 | 7.5 | 48 | 83 | 39 | 100 |
|
-
MK Clamping Element
Pneumatic clamping element, normally open. Compatible with Linear Rail SBI. -
MKS Clamping Element
Pneumatic clamping element, normally closed by spring force. Compatible with Linear Rail SBI.
