ASN43

Partial extension consisting of a guide rail and a slider. This compact size and simple design allow very high load capacities. The high system rigidity is formed in connection with the adjacent construction.

Special strokes are defined as deviations from standard stroke H. They are each available as multiples of the values in the table below. These values are dependent on the spacing of the ballcage. See Stroke modification in table.

Dimensions in mm

Product Information

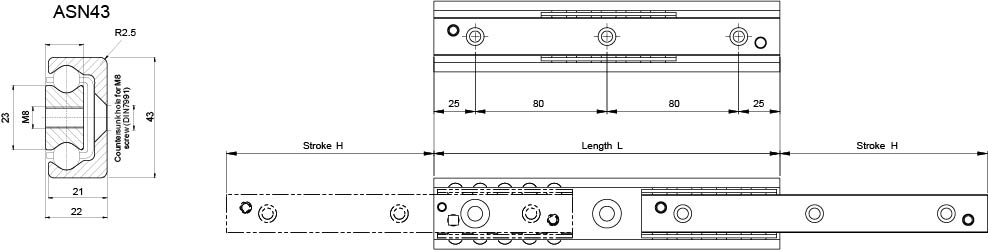

Technical Drawing
Designation Lead Time * Length Stroke System Load Capacity Radial System Load Capacity Axial Number of Fixing Holes Stroke Modification Weight
2 210 123 1595 N 1117 N 3 15 5,25 kg/m
2 290 158 2872 N 2010 N 4 15 5,25 kg/m
2 370 208 3377 N 2364 N 5 15 5,25 kg/m
2 450 243 4690 N 3283 N 6 15 5,25 kg/m
2 530 278 6039 N 4227 N 7 15 5,25 kg/m
2 610 313 7411 N 5188 N 8 15 5,25 kg/m
2 690 363 7863 N 5504 N 9 15 5,25 kg/m
2 770 398 9232 N 6463 N 10 15 5,25 kg/m
2 850 433 10615 N 7431 N 11 15 5,25 kg/m
2 930 483 11054 N 7738 N 12 15 5,25 kg/m
2 1.010 518 12434 N 8704 N 13 15 5,25 kg/m
2 1.090 568 12877 N 9014 N 14 15 5,25 kg/m
2 1.170 603 14254 N 9978 N 15 15 5,25 kg/m
2 1.250 638 15638 N 10947 N 16 15 5,25 kg/m
2 1.330 688 16075 N 11252 N 17 15 5,25 kg/m
2 1.410 723 17456 N 12219 N 18 15 5,25 kg/m
2 1.490 758 18845 N 13191 N 19 15 5,25 kg/m
2 1.570 793 20238 N 14167 N 20 15 5,25 kg/m
2 1.650 843 20661 N 14463 N 21 15 5,25 kg/m
2 1.730 878 22052 N 15436 N 22 15 5,25 kg/m
2 1.810 928 22479 N 15736 N 23 15 5,25 kg/m
2 1.890 963 23867 N 16707 N 24 15 5,25 kg/m
2 1.970 1013 24298 N 17009 N 25 15 5,25 kg/m

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

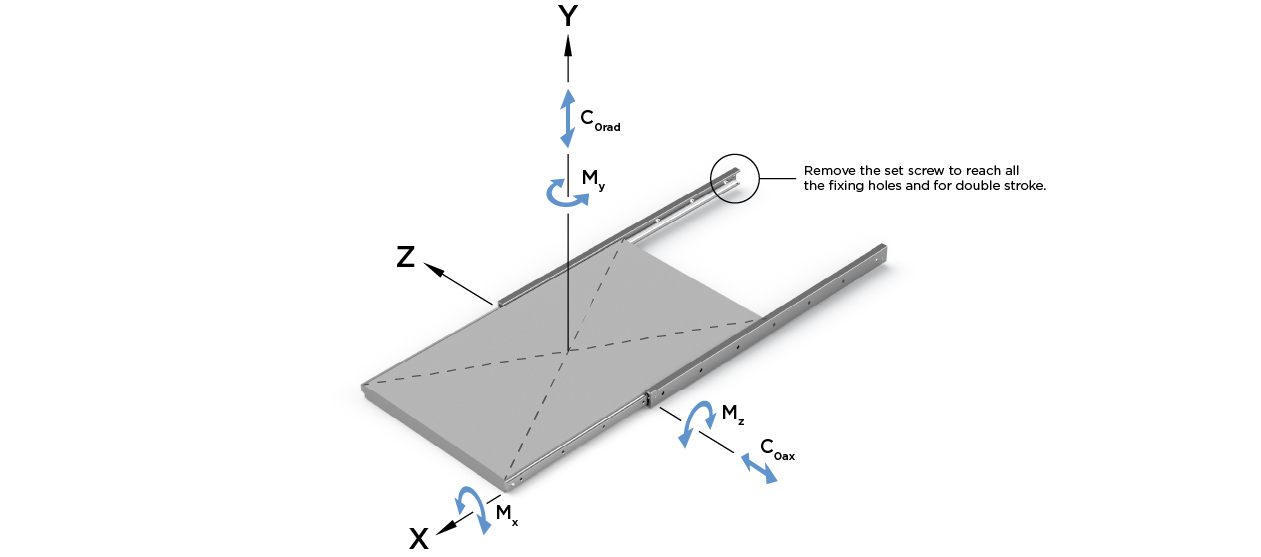

Additional Drawing 1
Designation Mx moment (Nm) My moment (Nm) Mz moment (Nm)
60,60 84 120
93,80 201 288
115,90 308 440
149,20 509 728
182,40 762 1.088
251,60 1.064 1.521
237,80 1.294 1.849
271 1.681 2.402
304,20 2.119 3.027
326,40 2.439 3.484
359,60 2.961 4.230
381,80 3.337 4.767
415 3.943 5.633
448,20 4.599 6.571
470,40 5.065 7.236
503,60 5.806 8.295
536,80 6.598 9.425
570,10 7.440 10.628
592,20 8.029 11.470
625,50 8.956 12.794
647,60 9.601 13.716
680,80 10.612 15.160
703 11.314 16.162
