ASN63

LOCALLY MANUFACTURED 2118-8849 kg/pair

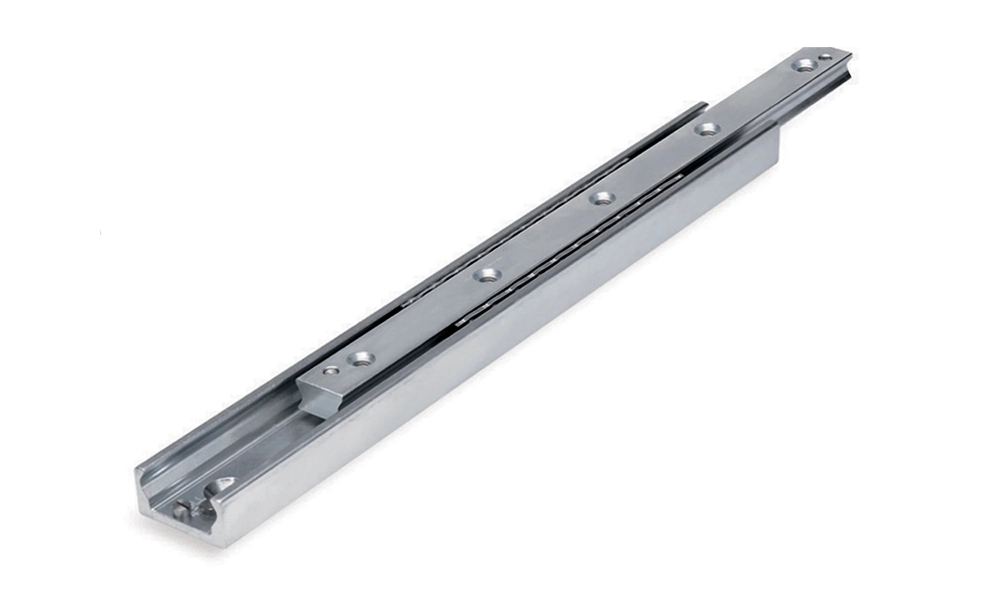

Partial extension consisting of a guide rail and a slider. This compact size and simple design allow very high load capacities. The high system rigidity is formed in connection with the adjacent construction.

Special strokes are defined as deviations from standard stroke H. See section "Special strokes" in the document Technical Information for Telescopic Rail Heavy.

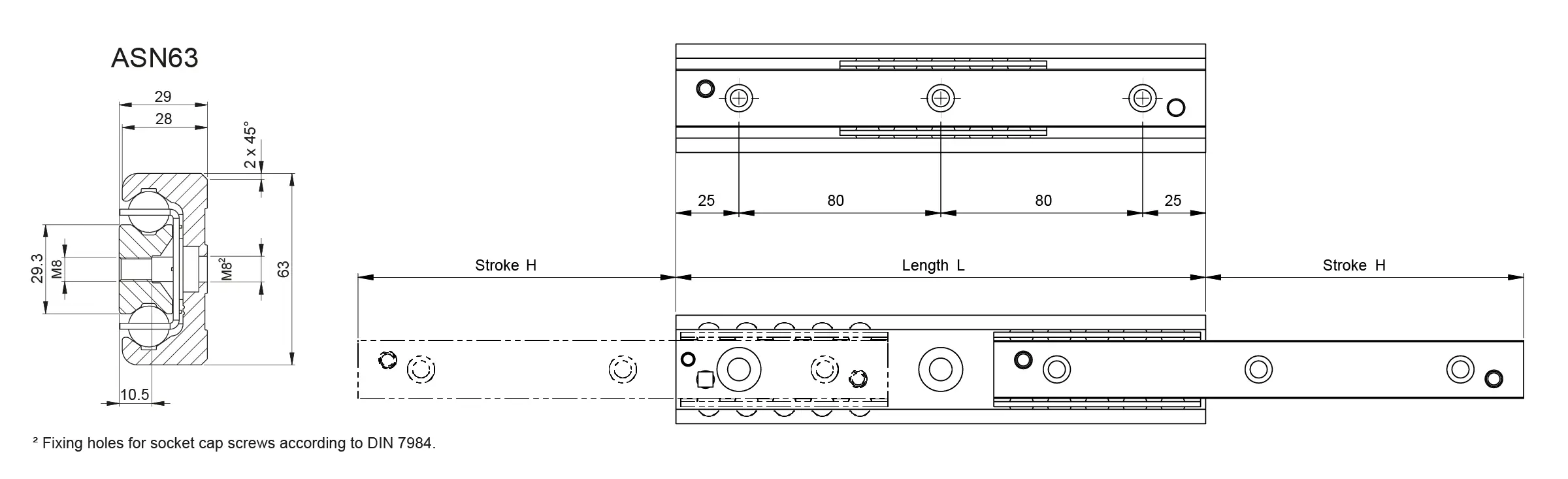

Dimensions in mm.

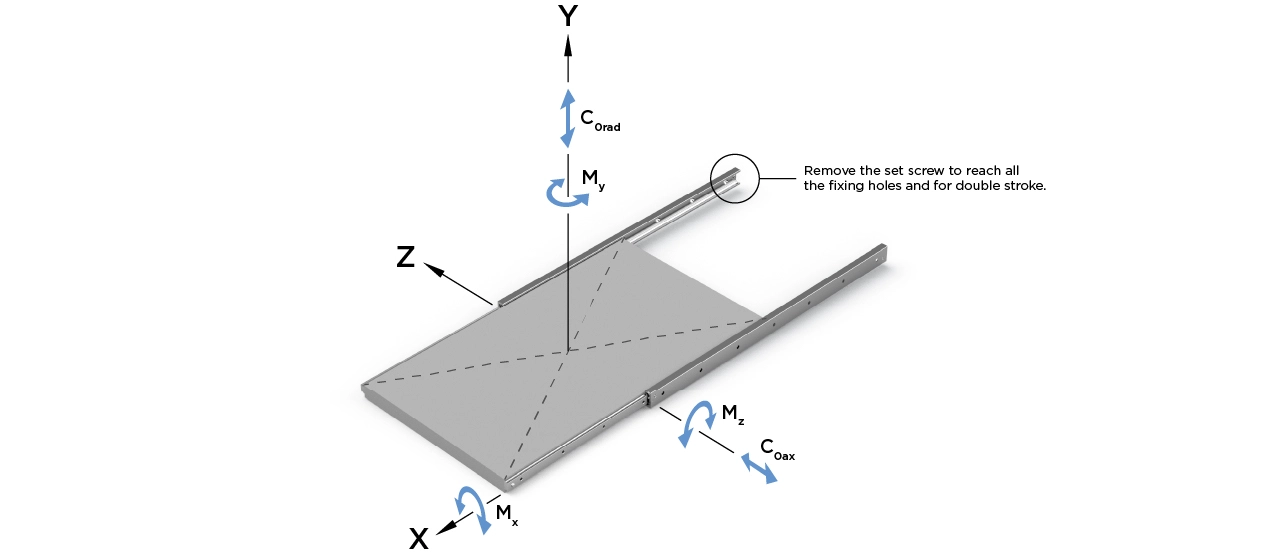

System Load Capacity Radial, System Load Capacity Axial, System Moment Capacity My and System Moment Capacity Mz values refers to a pair of rails.

Mx moment value refers to a single rail. The Mx system capacity depends on the width of the system and the load capacity radial.
Read more
Designation Select all CAD Compare Get quote Lead Time * Length Stroke Weight (kg/m) System Load Capacity Radial (N) System Load Capacity Axial (N) System Moment Capacity My (Nm) System Moment Capacity Mz (Nm) Mx moment (Nm) Number of Fixing Holes
Get quote 2 610 333 10.3 21182 14828 3106 4438 474 8
Get quote 2 690 373 10.3 25068 17548 4144 5920 547.5 9
Get quote 2 770 413 10.3 28978 20284 5332 7616 621 10
Get quote 2 850 453 10.3 32904 23032 6668 9526 294.5 11
Get quote 2 930 493 10.3 36842 25790 8154 11648 768 12
Get quote 2 1010 533 10.3 40790 28554 9788 13984 841.4 13
Get quote 2 1090 573 10.3 44746 31322 11574 16534 914.9 14
Get quote 2 1170 613 10.3 48708 34096 13508 19296 988.4 15
Get quote 2 1250 653 10.3 52674 36872 15590 22272 1061.9 16
Get quote 2 1330 693 10.3 56644 39650 17824 25462 1135.4 17
Get quote 2 1410 733 10.3 60618 42432 20204 28864 1208.9 18
Get quote 2 1490 773 10.3 64594 45216 22736 32480 1282.4 19
Get quote 2 1570 813 10.3 68574 48002 25416 36310 1355.9 20
Get quote 2 1650 853 10.3 72554 50788 28246 40352 1429.4 21
Get quote 2 1730 893 10.3 76536 53576 31226 44608 1502.8 22
Get quote 2 1810 933 10.3 80522 56364 34354 49078 1576.3 23
Get quote 2 1890 973 10.3 84506 59154 37632 53760 1649.8 24
Get quote 2 1970 1013 10.3 88494 61946 41060 58656 1723.3 25

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
