5030 - 100% Extension

* Outer beam: 2 holes in both ends.

All dimensions in mm.

Product Information

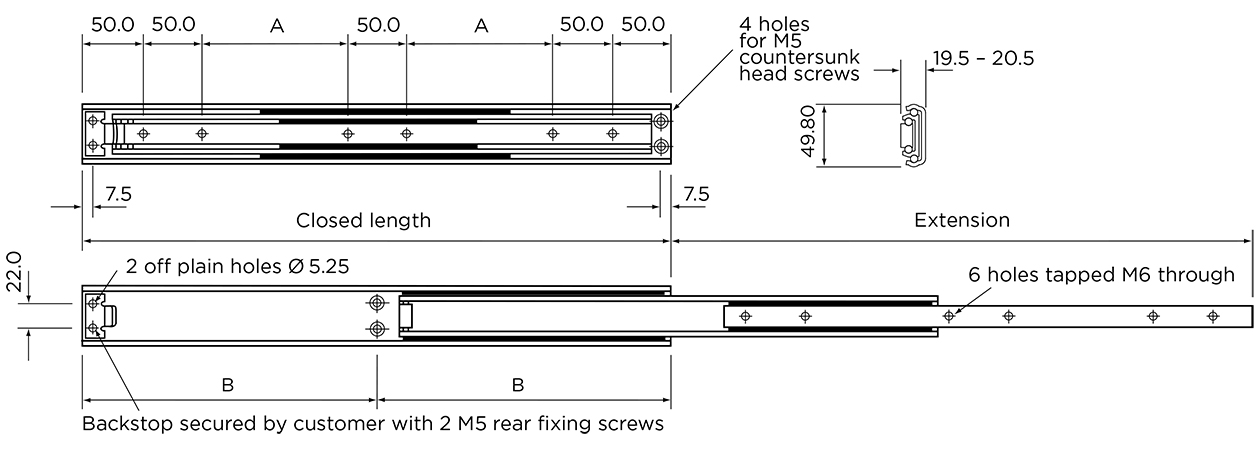

Technical Drawing
Designation Lead Time * Closed Length Extension Length Load / Pair Number of Fixing Holes
1 300 300 1900 N 4
1 350 350 1830 N 6
1 400 400 1750 N 6
1 450 450 1650 N 6
1 500 500 1550 N 6
1 550 550 1450 N 6
1 600 600 1370 N 6
1 650 650 1250 N 6
1 700 700 1180 N 6
1 750 750 1050 N 6
1 800 800 950 N 6
2 850 850 830 N 6
1 900 900 720 N 6
2 950 950 600 N 6
1 1.000 1.000 500 N 6

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation A B
* 150
50 175
75 200
100 225
125 250
150 275
175 300
200 325
225 350
250 375
275 400
300 425
325 450
350 475
375 500
