5030 - 100% Extension
Telescopic steel 3 beam slide extending up to 100%
5040 - 100% Extension

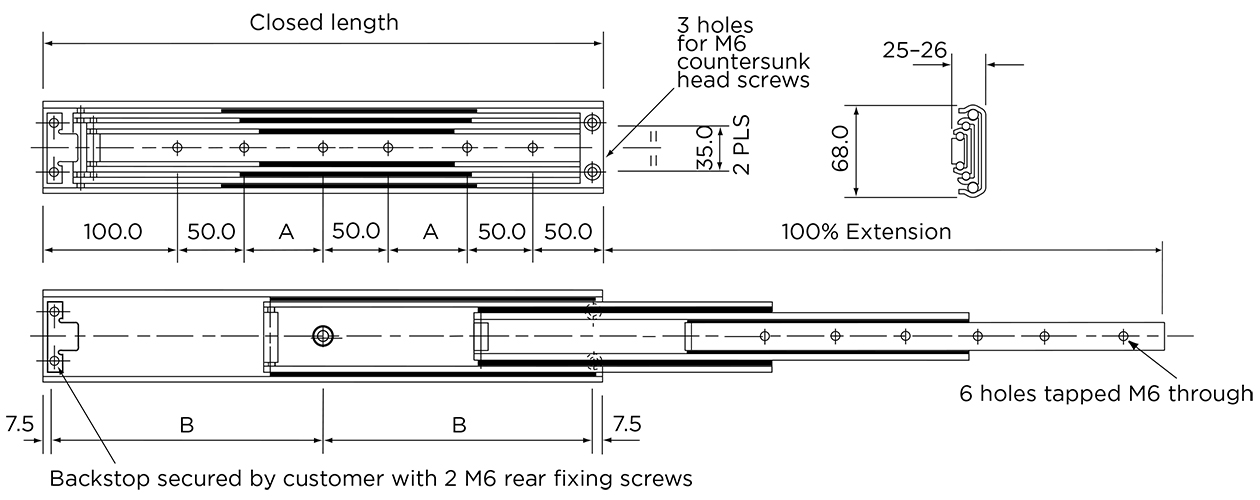

The 5040 is a 4 beam version of the 5030. The 5040 100% extension can carry up to 260 kg per pair.
Standard lengths 300 to 1000 mm in 50 mm increments.
All dimensions in mm.
System Load Capacity value refers to a pair of rails at full extension.
Read more
Standard lengths 300 to 1000 mm in 50 mm increments.
All dimensions in mm.
System Load Capacity value refers to a pair of rails at full extension.
Product Information
Material: Cold-drawn steel profile, zinc plated
Extension: 100%
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Closed Length | Extension Length | System Load Capacity (N) | Number of Fixing Holes | Weight/pc (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | 300 | 300 | 2600 | 4 | 2.17 | ||||
|
|
|
2 | 350 | 350 | 2570 | 6 | 2.6 | ||||
|
|
|
1 | 400 | 400 | 2450 | 6 | 3.02 | ||||
|
|
|
1 | 450 | 450 | 2380 | 6 | 3.41 | ||||
|
|
|
1 | 500 | 500 | 2300 | 6 | 3.85 | ||||
|
|
|
1 | 550 | 550 | 2200 | 6 | 4.24 | ||||
|
|
|
1 | 600 | 600 | 2100 | 6 | 4.68 | ||||
|
|
|
1 | 650 | 650 | 2000 | 6 | 5.02 | ||||
|
|
|
1 | 700 | 700 | 1950 | 6 | 5.42 | ||||
|
|
|
1 | 750 | 750 | 1820 | 6 | 5.78 | ||||
|
|
|
1 | 800 | 800 | 1780 | 6 | 6.22 | ||||
|
|
|
2 | 850 | 850 | 1680 | 6 | 6.64 | ||||
|
|
|
1 | 900 | 900 | 1600 | 6 | 7.04 | ||||
|
|
|
2 | 950 | 950 | 1500 | 6 | 7.44 | ||||
|
|
|
1 | 1000 | 1000 | 1400 | 6 | 7.9 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
