T-Rail

Fixed rails used as the main load bearing in radial and axial forces.

The rails are available in 4 different sizes: 18, 28, 43, 63 mm.

Longer single rails up to max. 4080 mm on request. For longer rail systems, see section ”Joined rails” in Technical Information.

Dimensions in mm.

D1 Fixing holes for Torx® screws with low head (custom design) included in scope of supply.
D2 Fixing holes for countersunk head screws according to DIN 7991.
Download PDF

Product Information

Max. operating speed: 9 m/s (depending on application)
Max. acceleration: 20 m/s² (depending on application)
Max. radial load capacity: 15,000 N (per slider)
Temperature: -20 °C to +120 °C
Material: Size 18, cold-drawn roller bearing carbon steel C43 F. Sizes 28-63 Cf53. Zinc-plated according to ISO 2081. Rail raceways are induction hardened and ground
Technical Drawing
Designation Select all Lead Time * Size
1 18
Compare
Get quote
1 18
Compare
Get quote
1 28
Compare
Get quote
1 28
Compare
Get quote
1 43
Compare
Get quote
1 43
Compare
Get quote
1 63
Compare
Get quote
1 63
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

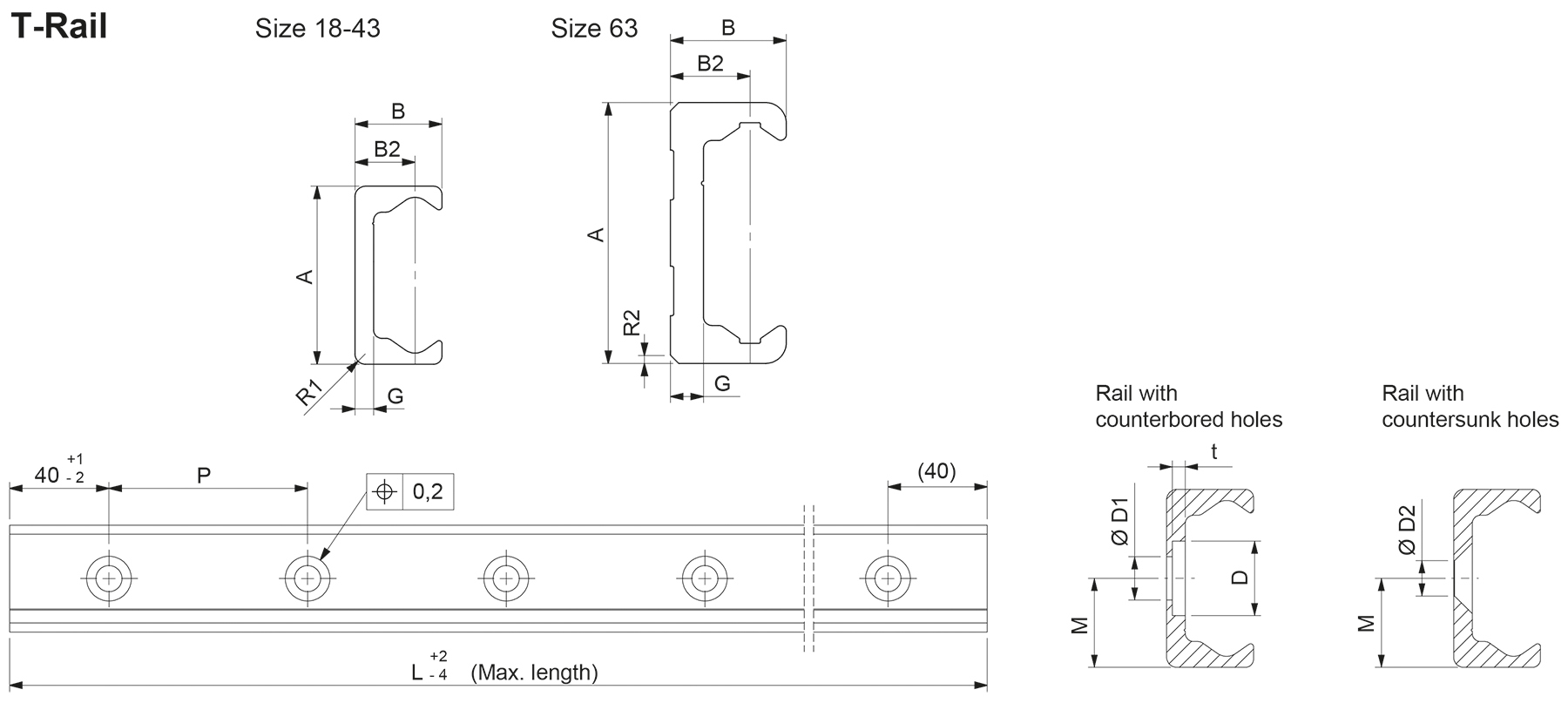

Technical Drawing
Designation Select all M A B B2 R1 R2 L D D1 D2 t G P Min. length Weight Rail
9 18 8,25 5,75 1,50 - 2000 9,50 M4 M4 2 2,80 80 160 0.55 kg/m
Compare
Get quote
9 18 8,25 5,75 1,50 - 2000 9,50 M4 M4 2 2,80 80 160 0.55 kg/m
Compare
Get quote
14 28 12,25 8,50 1 - 3200 11 M5 M5 2 3 80 240 1.0 kg/m
Compare
Get quote
14 28 12,25 8,50 1 - 3200 11 M5 M5 2 3 80 240 1.0 kg/m
Compare
Get quote
21,50 43 21 14,50 2,50 - 3600 18 M8 M8 3,10 4,50 80 400 2.6 kg/m
Compare
Get quote
21,50 43 21 14,50 2,50 - 3600 18 M8 M8 3,10 4,50 80 400 2.6 kg/m
Compare
Get quote
31,50 63 28 19,25 - 2x45° 3600 15 M8 M10 5,20 8 80 560 6.0 kg/m
Compare
Get quote
31,50 63 28 19,25 - 2x45° 3600 15 M8 M10 5,20 8 80 560 6.0 kg/m
Compare
