Slider NSW/NSA

NEW
Robust zinc plated steel slider with ball bearings, self-centering heads with wipers, longitudinal seals to protect the internal components and a top sealing strip to prevent accidental tampering of the fixed rollers. The slider body is accurately finished with matte longitudinal edge chamfer and a shining ground flat surface. It is available for all sizes, configurable with up to six rollers depending on the load requirement.

Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.

Dimensions in mm.

Note that these sliders are new in our product range and lead times may be a little longer than usual for a while. Please contact us for exact lead time.
Download PDF

Product Information

Max. operating speed: 9 m/s (depending on application)
Max. acceleration: 20 m/s² (depending on application)
Max. radial load capacity: 15,000 N (per slider)
Temperature: -20 °C to +120 °C
Material: DIN 11SMnPb28. Zinc-plated according to ISO 2081.

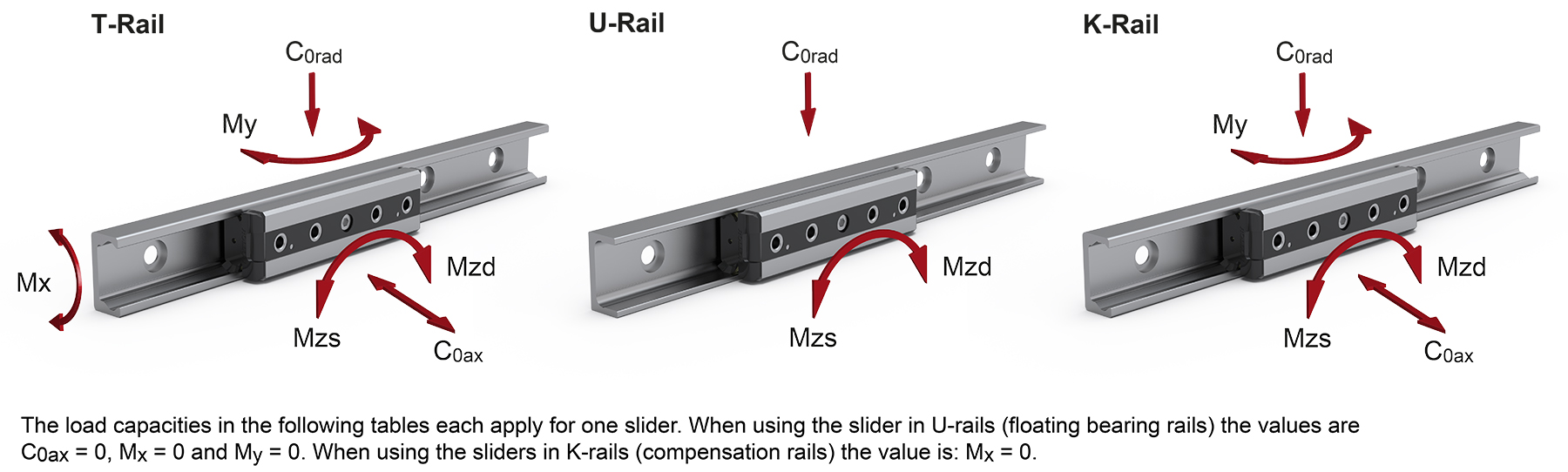

Technical Drawing
Designation Select all Lead Time * Size Number of rollers Number of Fixing Holes Roller type
2 18 3 4 CPA18-CPN18
Compare
Get quote
2 18 4 2 CPA18
Compare
Get quote
2 18 4 2 CPA18
Compare
Get quote
2 18 5 4 CPA18
Compare
Get quote
2 18 6 3 CPA18
Compare
Get quote
2 18 6 3 CPA18
Compare
Get quote
2 28 3 4 CPA28-CPN28
Compare
Get quote
2 28 4 2 CPA28
Compare
Get quote
2 28 4 2 CPA28
Compare
Get quote
2 28 5 4 CPA28
Compare
Get quote
2 28 6 3 CPA28
Compare
Get quote
2 28 6 3 CPA28
Compare
Get quote
2 43 3 4 CPA43-CPN43
Compare
Get quote
2 43 4 2 CPA43
Compare
Get quote
2 43 4 2 CPA43
Compare
Get quote
2 43 5 4 CPA43
Compare
Get quote
2 43 6 3 CPA43
Compare
Get quote
2 43 6 3 CPA43
Compare
Get quote
1 43 3 4 CRPA43-CRPN43
Compare
Get quote
2 43 4 2 CRPA43
Compare
Get quote
2 43 4 2 CRPA43
Compare
Get quote
2 43 5 4 CRPA43
Compare
Get quote
2 43 6 3 CRPA43
Compare
Get quote
2 43 6 3 CRPA43
Compare
Get quote
1 63 3 4+4 CPA63
Compare
Get quote
2 63 4 5 CPA63
Compare
Get quote
2 63 4 5 CPA63
Compare
Get quote
2 63 5 6 CPA63
Compare
Get quote
2 63 6 7 CPA63
Compare
Get quote
2 63 6 7 CPA63
Compare
Get quote
1 63 3 4+4 CRPA63
Compare
Get quote
2 63 4 5 CRPA63
Compare
Get quote
2 63 4 5 CRPA63
Compare
Get quote
2 63 5 6 CRPA63
Compare
Get quote
2 63 6 7 CRPA63
Compare
Get quote
2 63 6 7 CRPA63
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

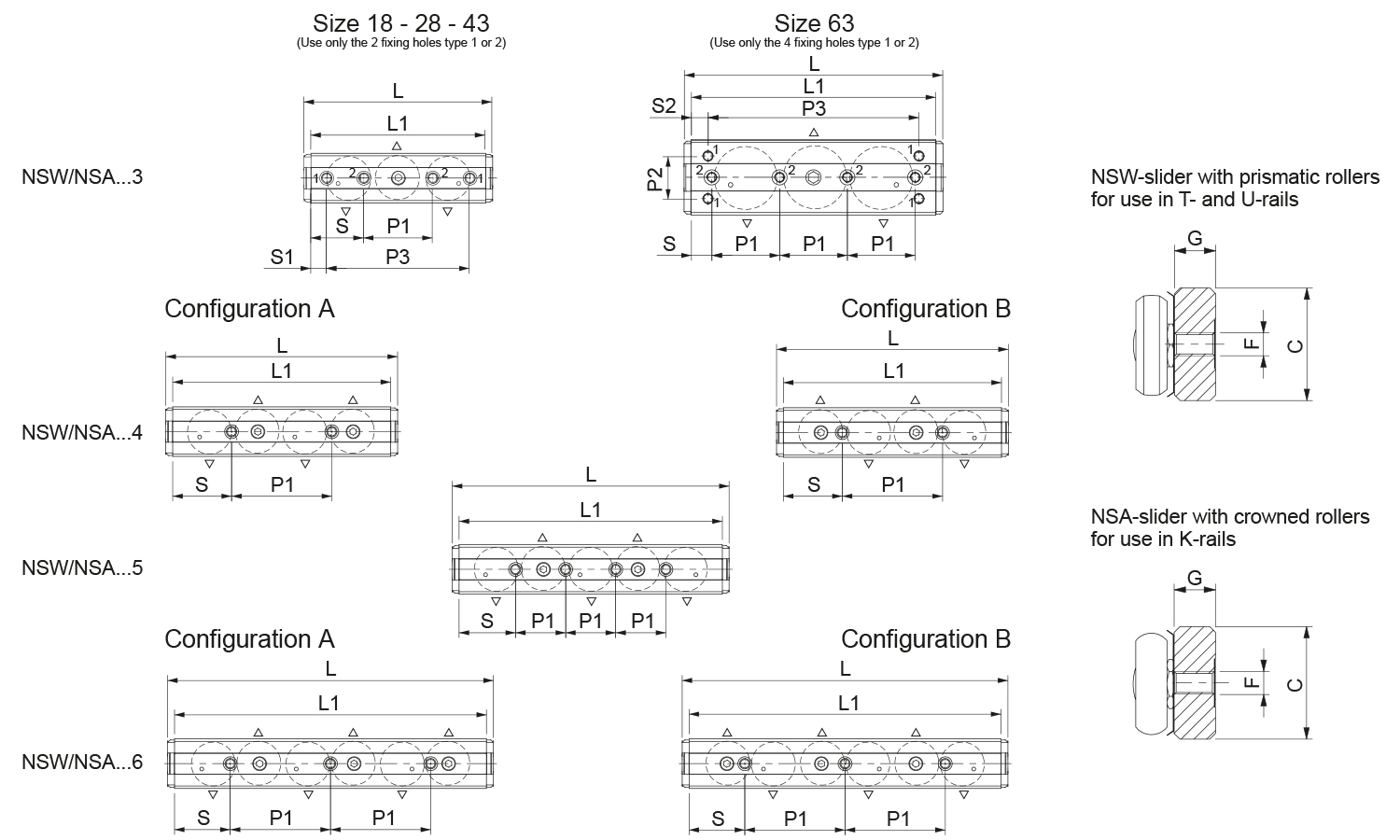

Technical Drawing
