Slider CSW/CSWK

Constructed with zinc-plated steel body and sturdy wipers made of polyamide. Available for all sizes. Depending on the load requirement, slider is configurable with up to six rollers.

Standard sliders are supplied with rollers with 2Z steel disc seals. For dusty environment and splash-proof applications, 2RS rubber seal rollers are available.

Dimensions in mm.
Download PDF

Product Information

Max. operating speed: 9 m/s (depending on application)
Max. acceleration: 20 m/s² (depending on application)
Max. radial load capacity: 15,000 N (per slider)
Temperature: -20 °C to +120 °C
Material: DIN 11SMnPb28. Zinc-plated according to ISO 2081.

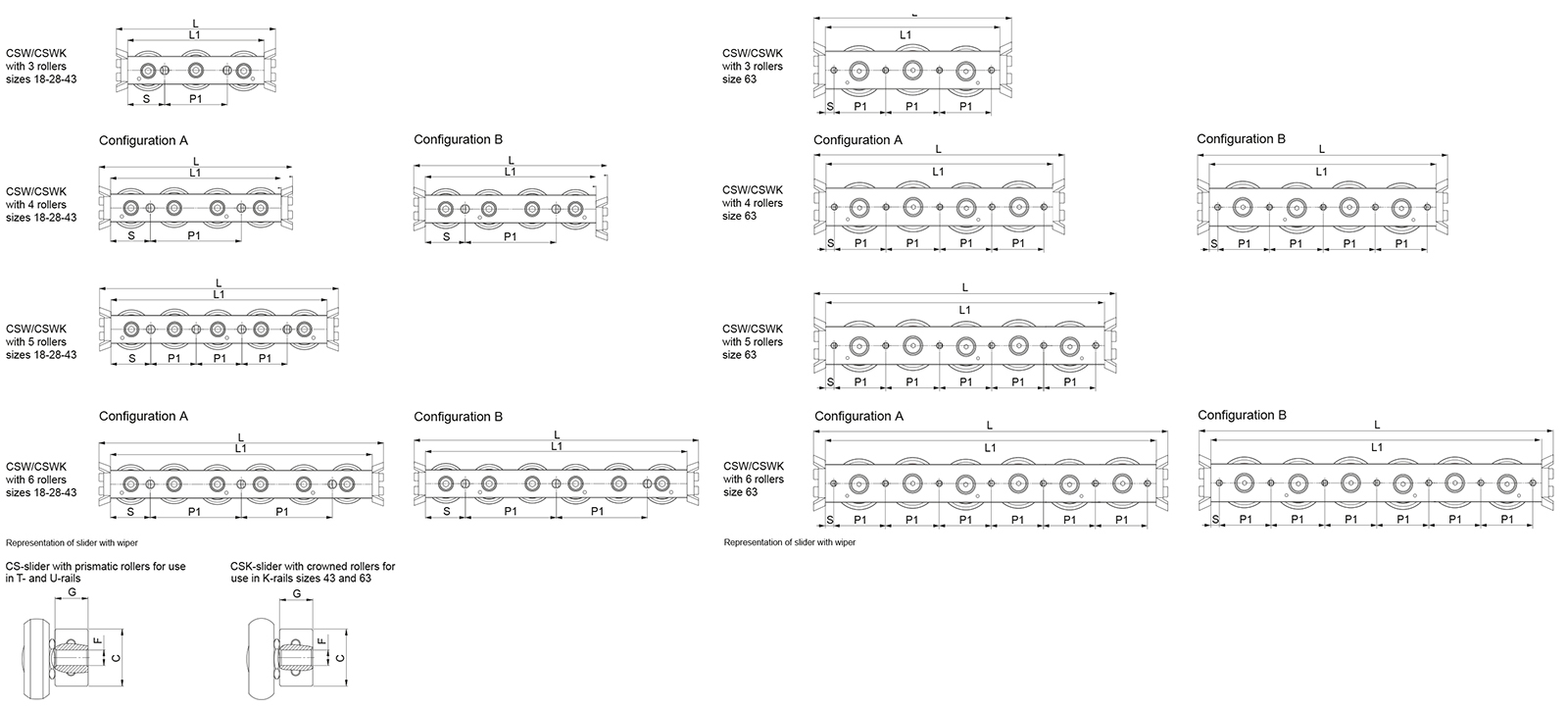

Technical Drawing
Designation Select all Lead Time * Size Number of rollers Number of Fixing Holes Roller type
1 18 3 2 CPA18-CPN18
Compare
Get quote
2 18 4 2 CPA18
Compare
Get quote
2 18 4 2 CPA18
Compare
Get quote
2 18 5 4 CPA18
Compare
Get quote
2 18 6 3 CPA18
Compare
Get quote
2 18 6 3 CPA18
Compare
Get quote
1 28 3 2 CPA28-CPN28
Compare
Get quote
1 28 4 2 CPA28
Compare
Get quote
1 28 4 2 CPA28
Compare
Get quote
1 28 5 4 CPA28
Compare
Get quote
2 28 6 3 CPA28
Compare
Get quote
2 28 6 3 CPA28
Compare
Get quote
1 43 3 2 CPA43-CPN43
Compare
Get quote
1 43 4 2 CPA43
Compare
Get quote
1 43 4 2 CPA43
Compare
Get quote
1 43 5 4 CPA43
Compare
Get quote
2 43 6 3 CPA43
Compare
Get quote
2 43 6 3 CPA43
Compare
Get quote
2 43 3 2 CRPA43-CRPN43
Compare
Get quote
2 43 4 2 CRPA43
Compare
Get quote
2 43 4 2 CRPA43
Compare
Get quote
2 43 5 4 CRPA43
Compare
Get quote
2 43 6 3 CRPA43
Compare
Get quote
2 43 6 3 CRPA43
Compare
Get quote
1 63 3 4 CPA63
Compare
Get quote
1 63 4 5 CPA63
Compare
Get quote
1 63 4 5 CPA63
Compare
Get quote
1 63 5 6 CPA63
Compare
Get quote
1 63 6 7 CPA63
Compare
Get quote
2 63 6 7 CPA63
Compare
Get quote
2 63 3 4 CRPA63
Compare
Get quote
2 63 4 5 CRPA63
Compare
Get quote
2 63 4 5 CRPA63
Compare
Get quote
2 63 5 6 CRPA63
Compare
Get quote
2 63 6 7 CRPA63
Compare
Get quote
2 63 6 7 CRPA63
Compare
Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation Select all L1 L C G F P1 S
60 76 9,50 5,70 M5 20 20
Compare
Get quote
80 96 9,50 5,70 M5 40 20
Compare
Get quote
80 96 9,50 5,70 M5 40 20
Compare
Get quote
100 116 9,50 5,70 M5 20 20
Compare
Get quote
120 136 9,50 5,70 M5 40 20
Compare
Get quote
120 136 9,50 5,70 M5 40 20
Compare
Get quote
80 100 14,90 9,70 M5 35 22,50
Compare
Get quote
100 120 14,90 9,70 M5 50 25
Compare
Get quote
100 120 14,90 9,70 M5 50 25
Compare
Get quote
125 145 14,90 9,70 M5 25 25
Compare
Get quote
150 170 14,90 9,70 M5 50 25
Compare
Get quote
150 170 14,90 9,70 M5 50 25
Compare
Get quote
120 140 24,90 14,50 M8 55 32,50
Compare
Get quote
150 170 24,90 14,50 M8 80 35
Compare
Get quote
150 170 24,90 14,50 M8 80 35
Compare
Get quote
190 210 24,90 14,50 M8 40 35
Compare
Get quote
230 250 24,90 14,50 M8 80 35
Compare
Get quote
230 250 24,90 14,50 M8 80 35
Compare
Get quote
120 140 24,90 14,50 M8 55 32,50
Compare
Get quote
150 170 24,90 14,50 M8 80 35
Compare
Get quote
150 170 24,90 14,50 M8 80 35
Compare
Get quote
190 210 24,90 14,50 M8 40 35
Compare
Get quote
230 250 24,90 14,50 M8 80 35
Compare
Get quote
230 250 24,90 14,50 M8 80 35
Compare
Get quote
180 200 39,50 19,50 M8 54 9
Compare
Get quote
235 255 39,50 19,50 M8 54 9,50
Compare
Get quote
235 255 39,50 19,50 M8 54 9,50
Compare
Get quote
290 310 39,50 19,50 M8 54 10
Compare
Get quote
345 365 39,50 19,50 M8 54 10,50
Compare
Get quote
345 365 39,50 19,50 M8 54 10,50
Compare
Get quote
180 200 39,50 19,50 M8 54 9
Compare
Get quote
235 255 39,50 19,50 M8 54 9,50
Compare
Get quote
235 255 39,50 19,50 M8 54 9,50
Compare
Get quote
290 310 39,50 19,50 M8 54 10
Compare
Get quote
345 365 39,50 19,50 M8 54 10,50
Compare
Get quote
345 365 39,50 19,50 M8 54 10,50
Compare
Get quote
