Rod eye SGS
Piston Rod Accessory SGS, galvanized steel

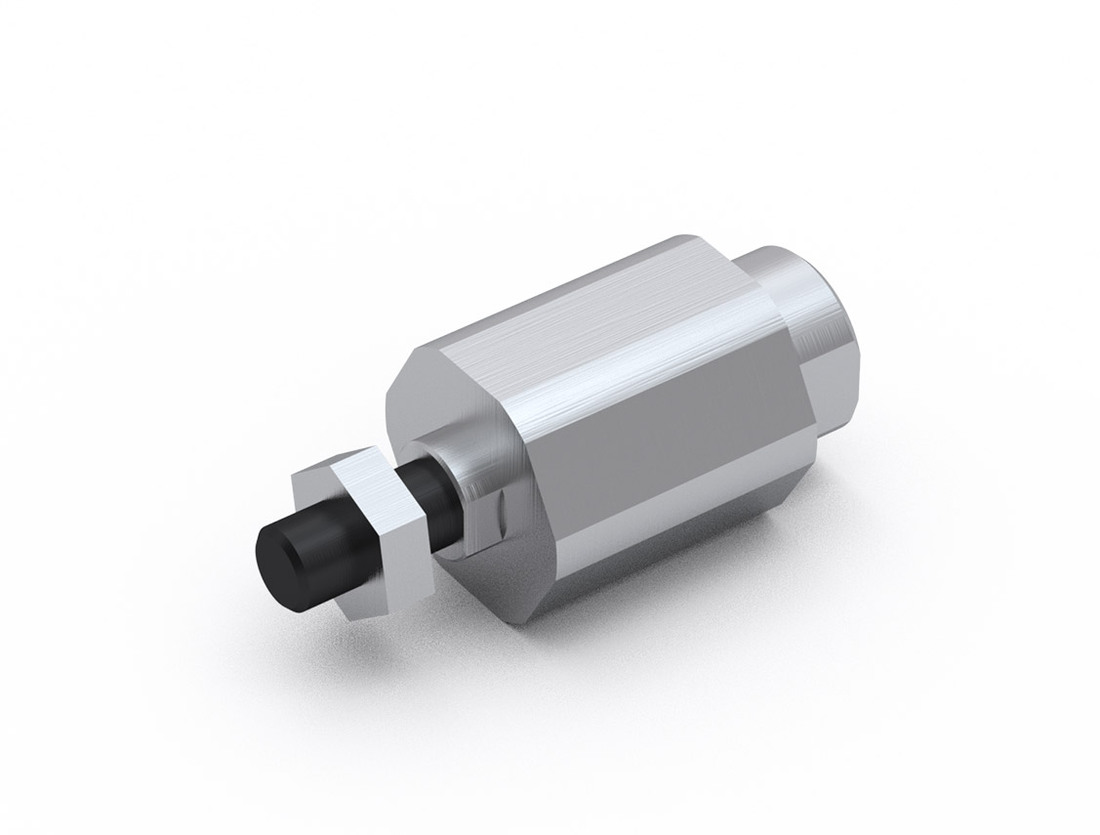

Self-aligning joint FK
Dimensions in mm.
Download PDF
code.product.loadingpdf
+
Tilføj til PDF-katalog
Product Information
Material: Galvanized steel
| Designation | Select all | Lead Time * | Compatible with | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | MCE 25 | FK 25 | Galvanized steel | F MCE | 0.03 |
|
|||
|
|
/storage/9BF46BE31A26ADD9195F28BA7613B18FFF7B39B2F972A2DCF6486525FA76339E/8a0b5ae73de949e79b23d44658e5ec5c/stp/media/390a3e8e801943d0b7ab56da7c5b2a74/CAD_FK32-5474_SelfAligningJointFK_Rollco.stp | 2 | MCE 32 | FK 32 | Galvanized steel | F MCE | 0.06 |
|
||
|
|
/storage/BE477F2BE619BC19A162CF31D3113F0B7B80437EDAC5DACB973ABF57AE04EE72/cd5de4cee06a42b7b606a49b430cb04c/stp/media/06d7d3e54e814a01b1fe00feacb8deb7/CAD_FK45-5466_SelfAligningJointFK_Rollco.stp | 2 | MCE 45 | FK 45 | Galvanized steel | F MCE | 0.22 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | M | L1 | L2 | L3 | L4 | L5 | L6 | A | D | E | CH1 | CH2 | CH3 | CH4 | B | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
M6 | 35 | 17.5 | 11 | 4 | 12.5 | 14.5 | 4 | 8.5 | 1 | 13 | 7 | 10 | 5 | 6 |
|
|||
|
|
/storage/9BF46BE31A26ADD9195F28BA7613B18FFF7B39B2F972A2DCF6486525FA76339E/8a0b5ae73de949e79b23d44658e5ec5c/stp/media/390a3e8e801943d0b7ab56da7c5b2a74/CAD_FK32-5474_SelfAligningJointFK_Rollco.stp | M8 | 57 | 26 | 21 | 5 | 16 | 19 | 5 | 12.5 | 2 | 17 | 11 | 13 | 7 | 8 |
|
||
|
|
/storage/BE477F2BE619BC19A162CF31D3113F0B7B80437EDAC5DACB973ABF57AE04EE72/cd5de4cee06a42b7b606a49b430cb04c/stp/media/06d7d3e54e814a01b1fe00feacb8deb7/CAD_FK45-5466_SelfAligningJointFK_Rollco.stp | M10 × 1.25 | 71.5 | 35 | 20 | 9 | 22 | 32 | 6 | 22 | 2 | 30 | 19 | 17 | 12 | 8 |
|
-
-
