Rod eye SGS
Piston Rod Accessory SGS, galvanized steel

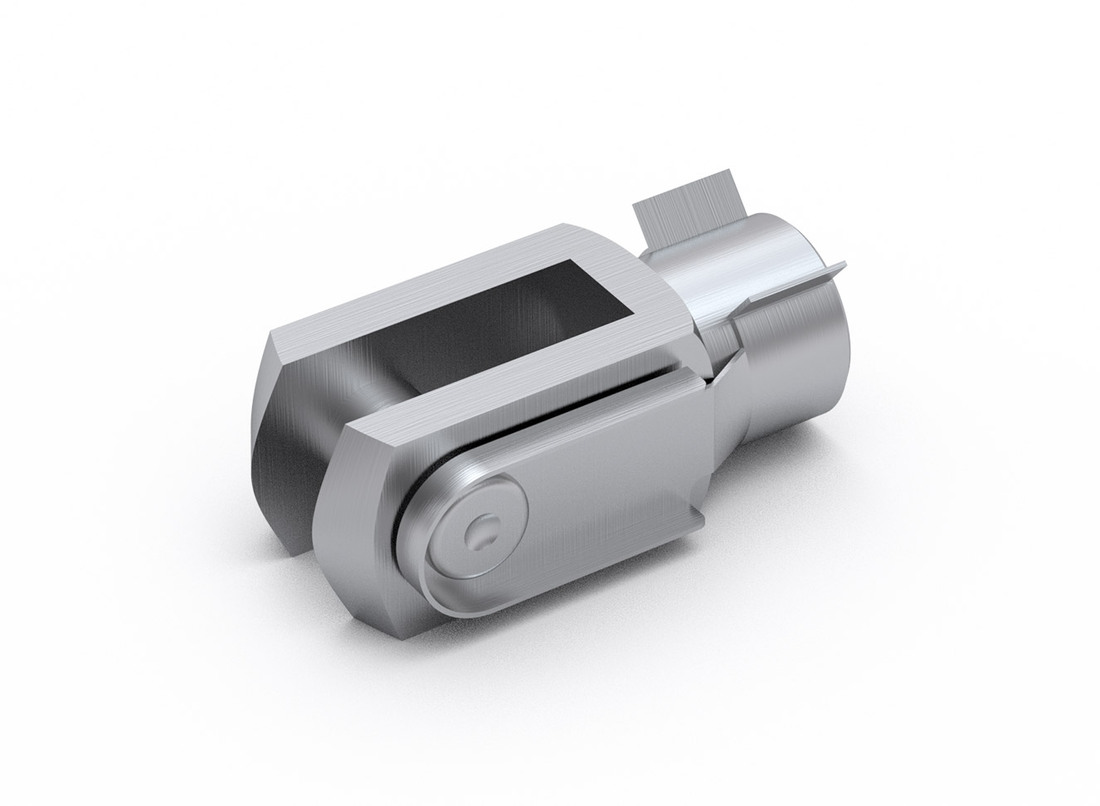

Rod clevis SG
Dimensions in mm.
Download PDF
code.product.loadingpdf
+
Tilføj til PDF-katalog
Product Information
Material: Galvanized steel
| Designation | Select all | Lead Time * | Compatible with | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | MCE 25 | SG 25 | Galvanized steel | F MCE | 0.02 |
|
|||
|
|
/storage/CEDCEF6339D97B858486BA6E4892C08E93AF2BA0A81621C89820D66E454F69CA/b58d35f4c0b04c03a02fe68bfcbb0f6d/stp/media/4ae9e67fcd6446b99d5fd35d70998f79/CAD_SG32-9197_RodClevisSG_Rollco.stp | 2 | MCE 32 | SG 32 | Galvanized steel | F MCE | 0.05 |
|
||
|
|
/storage/006175372956015434F9CCA658AEF613EDEA117934E8B12E937319B777C91C24/a3aea6662c914f4892fc5ab4254ffe3c/stp/media/283b7a1187e64c15b244aeed8dde66af/CAD_SG45-9186_RodClevisSG_Rollco.stp | 2 | MCE 45 | SG 45 | Galvanized steel | F MCE | 0.09 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | M | L1 | L2 | L3 | L4 | L5 | L6 | D1 | D2 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
M6 | 31 (±0.5) | 16 | 6 (B13) | 12 (±0.5) | 24 | 12 (h11) | 6 (H9) | 10 |
|
|||
|
|
/storage/CEDCEF6339D97B858486BA6E4892C08E93AF2BA0A81621C89820D66E454F69CA/b58d35f4c0b04c03a02fe68bfcbb0f6d/stp/media/4ae9e67fcd6446b99d5fd35d70998f79/CAD_SG32-9197_RodClevisSG_Rollco.stp | M8 | 42 (±0.5) | 22 | 8 (B13) | 16 (±0.5) | 32 | 16 (h11) | 8 (H9) | 14 |
|
||
|
|
/storage/006175372956015434F9CCA658AEF613EDEA117934E8B12E937319B777C91C24/a3aea6662c914f4892fc5ab4254ffe3c/stp/media/283b7a1187e64c15b244aeed8dde66af/CAD_SG45-9186_RodClevisSG_Rollco.stp | M10 × 1.25 | 52 (±0.5) | 26 | 10 (B13) | 20 (±0.5) | 40 | 20 (h11) | 10 (H9) | 18 |
|
-
-
