Rod clevis SG
Piston Rod Accessory SG, galvanized steel

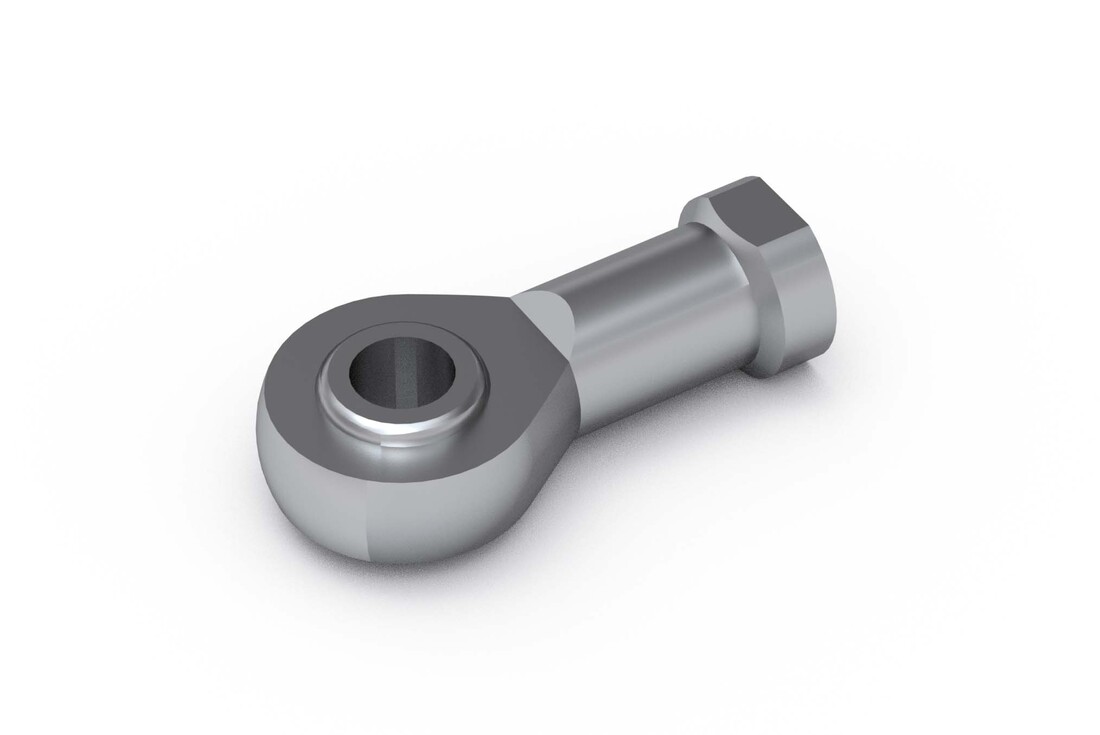

Rod eye SGS
Dimensions in mm.
Download PDF
code.product.loadingpdf
+
Tilføj til PDF-katalog
Product Information
Material: Galvanized steel
| Designation | Select all | Lead Time * | Compatible with | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
2 | MCE 25 | SGS 25 | Galvanized steel | F MCE | 0.03 |
|
|||
|
|
/storage/66423C90E9F54662C1829D380380083DFC5E6289726C1E5BE0D5D148514413F2/ccf226143521442fa25caa6d7454c819/stp/media/9f951995882c4f728859cb15a66aa0ac/CAD_SGS32-9216_RodEyeSGS_Rollco.stp | 2 | MCE 32 | SGS 32 | Galvanized steel | F MCE | 0.05 |
|
||
|
|
/storage/ED9629561F4454958DBCECB568F44E7963805FA12C1B1781BA9666E54FC4713A/3a8b7d577d3b496994a65f93150bce62/stp/media/5b9b2376e0f046d2a78123ee558ede20/CAD_SGS45-9206_RodEyeSGS_Rollco.stp | 2 | MCE 45 | SGS 45 | Galvanized steel | F MCE | 0.08 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | M | L1 | L2 | L3 | L4 | L5 | D1 | D2 | R | CH | Z | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
M6 | 40 | 30 | 9 | 6.75 | 12 | 6 (H7) | 13 | 10 | 11 | 13° |
|
|||
|
|
/storage/66423C90E9F54662C1829D380380083DFC5E6289726C1E5BE0D5D148514413F2/ccf226143521442fa25caa6d7454c819/stp/media/9f951995882c4f728859cb15a66aa0ac/CAD_SGS32-9216_RodEyeSGS_Rollco.stp | M8 | 48 | 36 | 12 | 9 | 16 | 8 (H7) | 16 | 12 | 14 | 14° |
|
||
|
|
/storage/ED9629561F4454958DBCECB568F44E7963805FA12C1B1781BA9666E54FC4713A/3a8b7d577d3b496994a65f93150bce62/stp/media/5b9b2376e0f046d2a78123ee558ede20/CAD_SGS45-9206_RodEyeSGS_Rollco.stp | M10 × 1.25 | 57 | 43 | 14 | 10.5 | 20 | 10 (H7) | 19 | 14 | 17 | 13° |
|
-
-
