Wide MR-W Rail

Tapped from above.

Dimensions in mm.

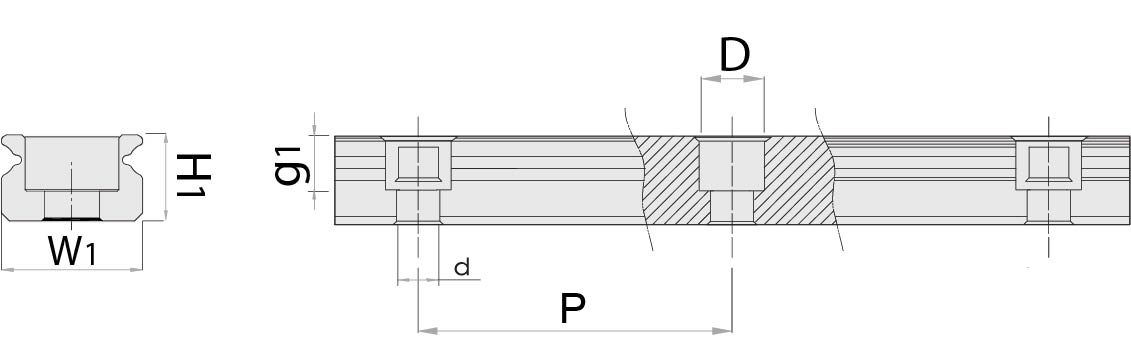

Technical Drawing
Designation H1 W1 Hole Pitch (P) Dxdxg1 Weight Rail
2,70 6 15 4x2,4x1,5 105 g/m
4 10 20 5,5x3x1,6 280 g/m
5,20 14 30 6x3,5x3,5 516 g/m
7,30 18 30 6x3,5x4,5 940 g/m
8,50 24 40 8x4,5x4,5 1472 g/m
9,50 42 40 8x4,5x4,5 2818 g/m
