MF Container Self Lubricant
Self-lubricant container MF is an option suitable for situations where re-lubrication is difficult or impossible to achieve.

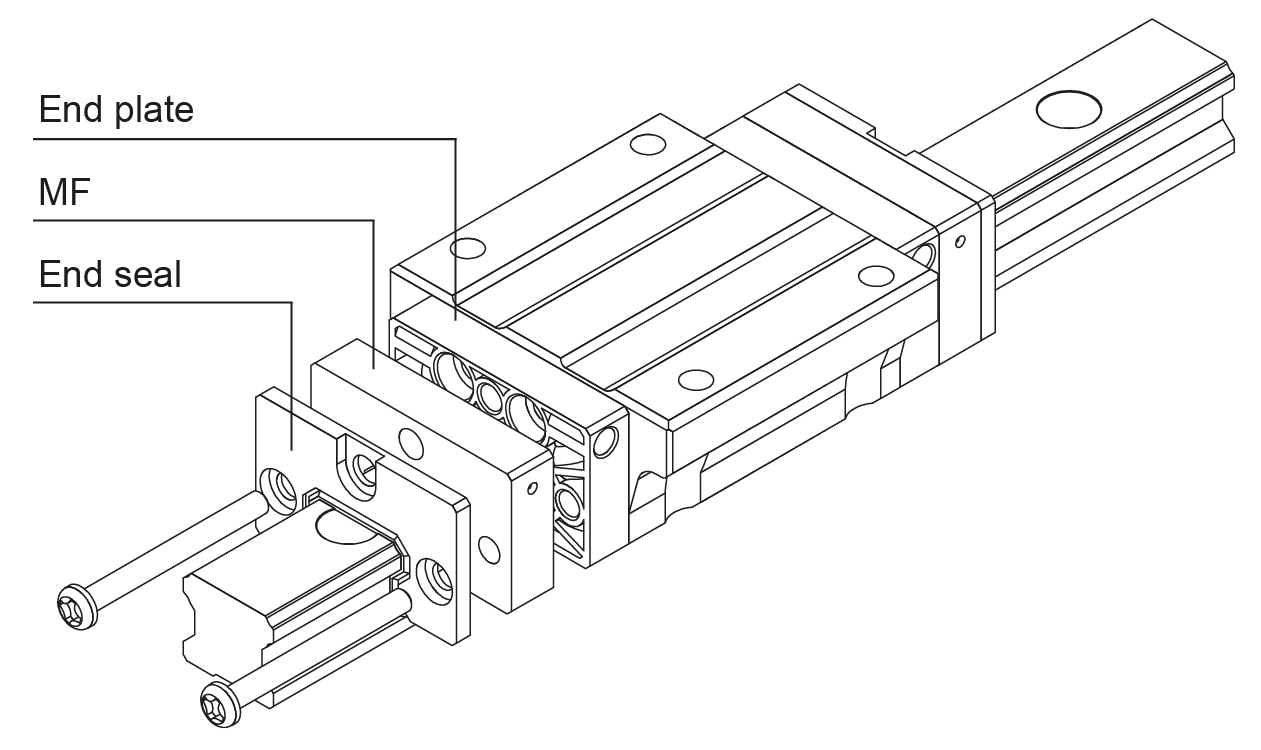

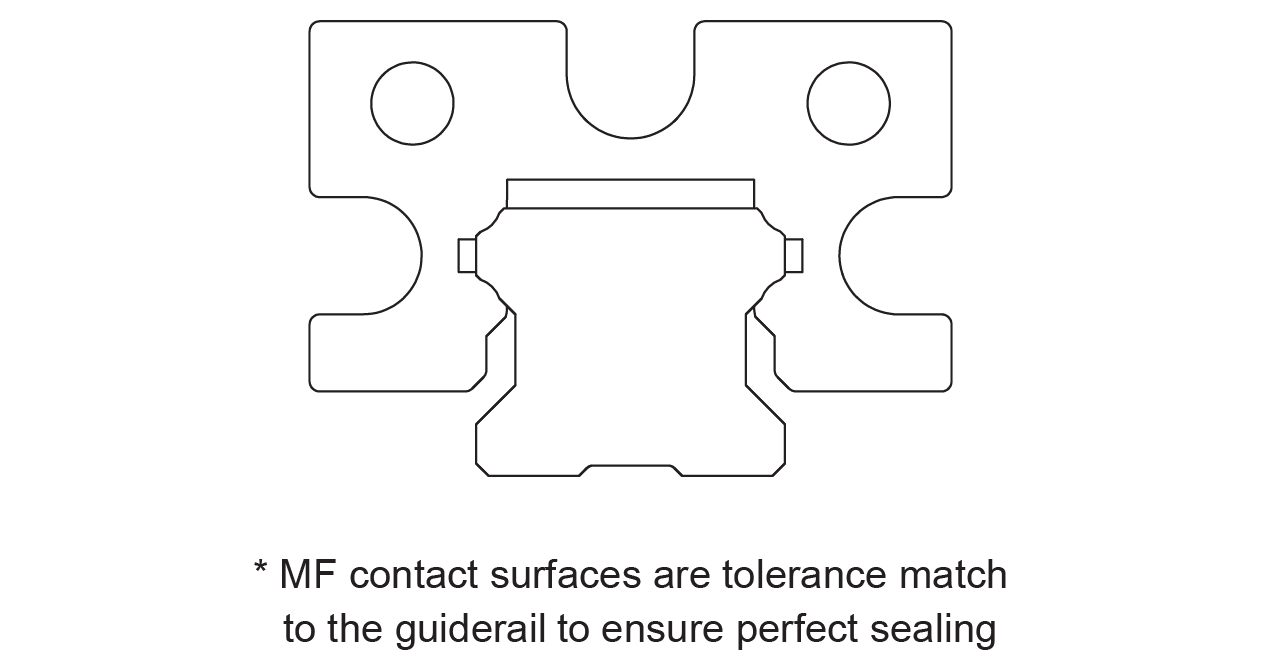

Option MF consist of a small container filled with grease impregnated felt. The felt provides a continuous oil film directly and only on the four raceways of the rail profile.
This results in a very precise and long-lived lubrication in exactly the most effective spots.
If option MF is selected, the block will be delivered without grease nipple.

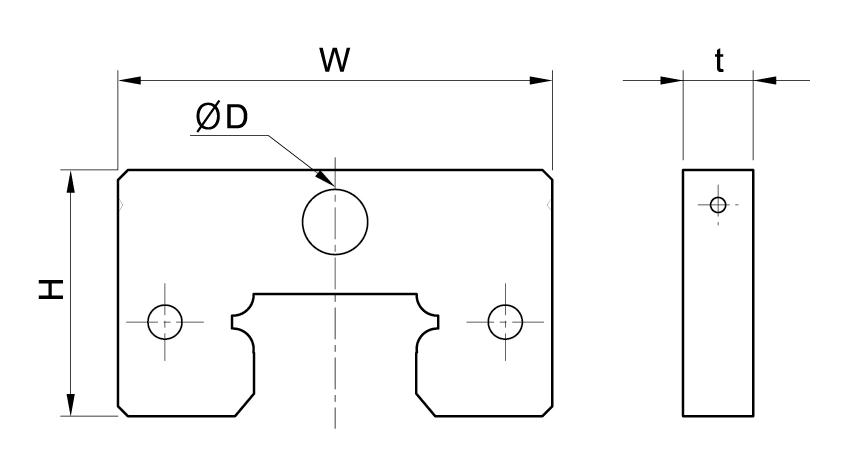

Dimensions in mm.
Read more
Option MF consist of a small container filled with grease impregnated felt. The felt provides a continuous oil film directly and only on the four raceways of the rail profile.
This results in a very precise and long-lived lubrication in exactly the most effective spots.
If option MF is selected, the block will be delivered without grease nipple.
Dimensions in mm.
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | Compare | Get quote | Lead Time * | Block Type | W | t | H | D |
|---|---|---|---|---|---|---|---|---|---|
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL, FV, SV | 33.4 | 7 | 20.2 | 4 | ||
|
|
|
1 | FL, FLL, SL, SLL | 43.4 | 7 | 24.6 | 6.5 | ||
|
|
|
1 | CL, CLL, FV, SV | 43.4 | 7 | 22.6 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 47 | 7 | 29.7 | 6.5 | ||
|
|
|
1 | CL, CLL, FV, SV | 47 | 7 | 26.7 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 59 | 8 | 34.2 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 69 | 8 | 39.7 | 6.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 85 | 8 | 49.7 | 10.5 | ||
|
|
|
1 | FL, FLL, HL, HLL, SL, SLL | 98 | 9 | 56 | 10.5 | ||
|
|
|
2 | FL, FLL, SL, SLL | 123 | 9 | 69 | 10.5 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
-
-
