Linear Unit MTJ ECO 40

The MTJ ECO series linear unit is a powerful and cost-effective linear unit with toothed belt drive and a zero-backlash ball rail guide system for easy and accurate linear movements.

The linear unit MTJ ECO uses a pre-tensioned steel reinforced AT polyurethane timing toothed belt. In conjunction with a zero-backlash drive pulley high moments with alternating loads with good positioning accuracy, low wear and low noise can be realized.

For CAD-files please contact Rollco
Download PDF

Product Information

Modulus of elasticity: E = 70000 N / mm2
Operating temperature: 0°C ~ +60°C For operating temperature out of the presented range, please contact Rollco.
Duty cycle: 100%
Technical Drawing

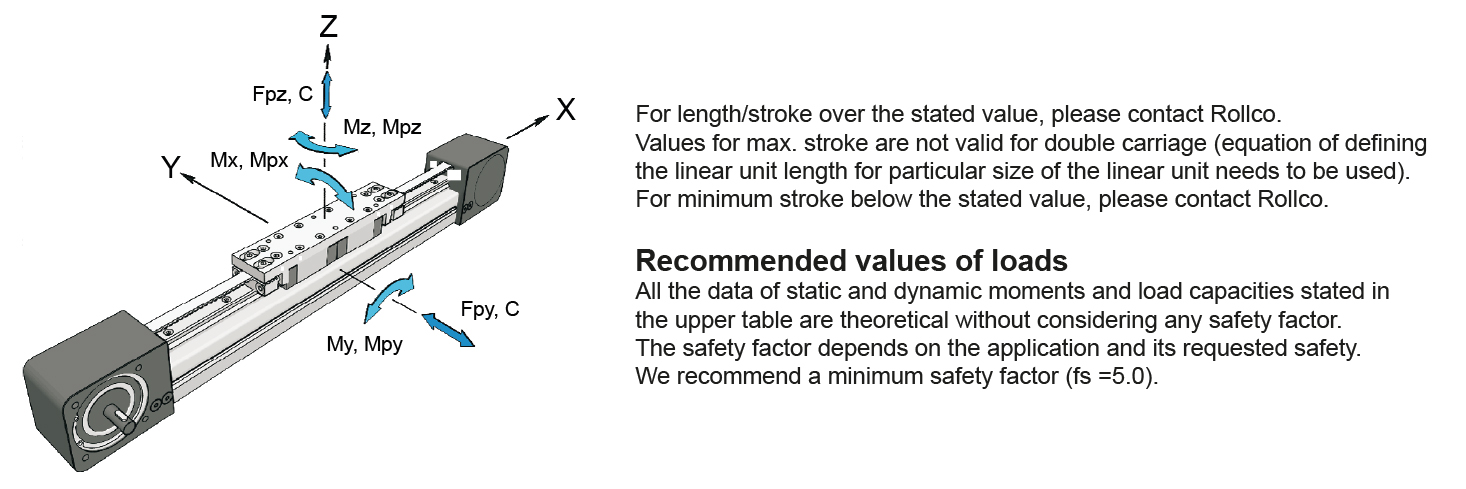

Designation Lead Time * Carriage Length Lv Dynamic Moment Mx Dynamic Moment My Dynamic Moment Mz Dynamic Load Capacity C Static Load Capacity C0 Max permissible loads Forces Fpy Max permissible Loads Forces Fpz Max. permissible loads Moments Mpx Max. permissible loads Moments Mpy Max. permissible loads Moments Mpz Moved mass Max. repeatability Max. stroke Min. stroke
2 132 79 Nm 59 Nm 59 Nm 9900 N 17500 N 3270 N 5100 N 34 Nm 34 Nm 34 Nm 0,45 kg ± 0,1 5813 40 Get quote
2 200 158 Nm 660 Nm 660 Nm 19800 N 35000 N 6540 N 10190 N 60 Nm 341 Nm 219 Nm 0,72 kg ± 0,1 5745 40 Get quote

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Additional Drawing 1

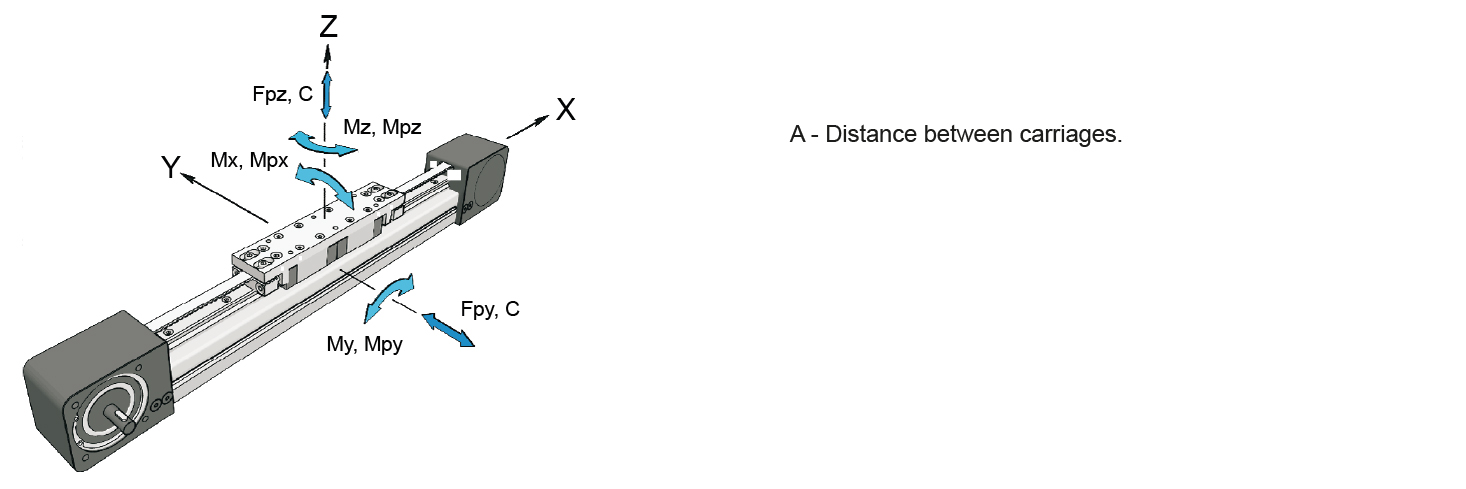

Designation Carriage version Dyn. Load Capacity C Stat. Load Capacity C0 Dynamic Moment Mx Dynamic Moment My Dynamic Moment Mz Max perm. Loads Forces Fpy Max perm. Loads Moments Mpx Max perm. Loads Moments Mpy Max perm. Loads Moments Mpz
S2 19800 N 35000 N 158 Nm 9,9 * A (mm) Nm 9,9 * A (mm) Nm 6540 N 68 Nm 5,1 * A (mm) Nm 3,3 * A (mm) Nm Get quote
L2 39600 N 70000 N 317 Nm 19,8 * A (mm) Nm 19,8 * A (mm) Nm 13080 N 120 Nm 10,1 * A (mm) Nm 6,5 * A (mm) Nm Get quote
Additional Drawing 2
Designation Max travel speed No load torque Pulley drive ratio Pulley diameter Belt type Belt width Max. force transmitted by belt Specific spring constant Cspec Max. drive torque Min. stroke Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴
3 m/s 0,80 180 mm/rev 57,31 AT5 12 262 N 235000 N 7,5 Nm 40 9,53 9,21 Get quote
3 m/s 0,90 180 mm/rev 57,31 AT5 12 262 N 235000 N 7,5 Nm 40 9,53 9,21 Get quote
Additional Drawing 2
Designation Carriage Length Lv Mass of linear unit Mass moment of inertia (10⁻⁵ kg * m²) Planar moment of inertia ly cm⁴ Planar moment of inertia lz cm⁴ Moved mass No load torque
132 3, 1 + 0,003 * Stroke (mm) kg 70, 1 + 0,007 * Stroke (mm) 9,53 9,21 0,45 kg 0,80 Get quote
200 3,55 + 0,003 * Stroke (mm) kg 92,3 + 0,007 * Stroke (mm) 9,53 9,21 0,72 kg 0,90 Get quote
