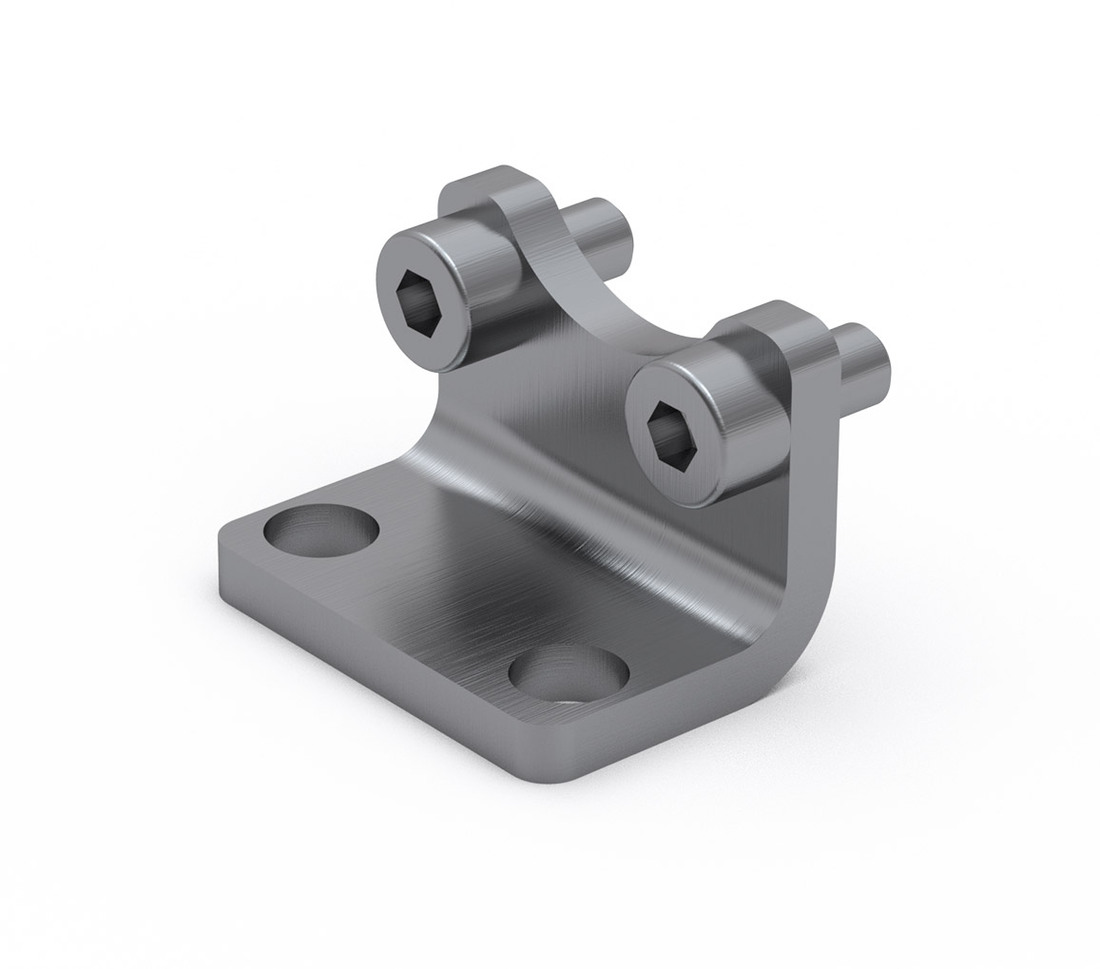

Foot mounting MAHP

Dimensions in mm.

Set contains 2 pcs (i.e. for both front and rear mounting). Mounting screws are included.
Read more

Product Information

Material: Stainless steel
Designation Select all CAD Compare Get quote Lead Time * Description Compatible with Material Fmax (N) Mass (kg)
Get quote 2 MAHP 25 MCE 25 Stainless steel F MCE 0.04
Get quote 2 MAHP 32 MCE 32 Stainless steel F MCE 0.06
Get quote 2 MAHP 45 MCE 45 Stainless steel F MCE 0.11

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L1 L2 L3 L4 L6 L8 L9 D1 R L5 Front L5 Rear L7 Front L7 Rear ØD2 Front ØD2 Rear
Get quote 25 18 17.5 13 3 17.5 22 5.5 9 11.5 13 21 18 2.8 4.5
Get quote 32 22 22 16 3 20 25.5 6.6 10 14.5 14.5 22 22 4.5 5.5
Get quote 45 32 26.2 18 3 24 32 6.6 13 16 16 32 32 6.6 6.6
