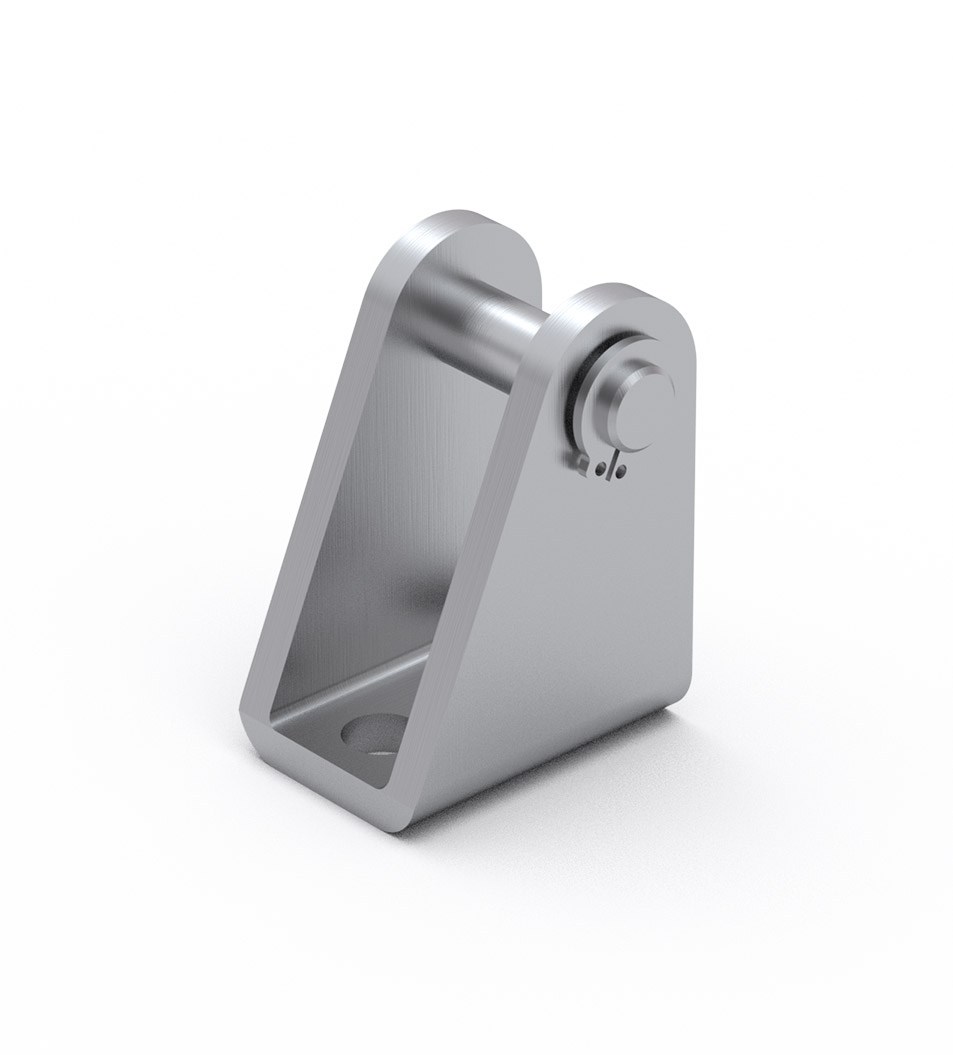

Clevis foot mounting MLBU
Dimensions in mm.
Download PDF
code.product.loadingpdf
+
Tilføj til PDF-katalog
Product Information
Material: Galvanized steel
| Designation | Select all | Lead Time * | Compatible with | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/8A5812852D34B9BBF9AFC3F51653EB45E9AF2EDAC056FE53A9976CCD585A9BBD/9c779f5effbb4f388503ac53cb815091/STP/media/2349ba87b6d54e3e9fa9b6903be7c9bd/CAD_MLBU25-108227_ClevisFootMountingMLBU_Rollco.STP | 2 | MCE 25 | - | Galvanized steel | F MCE | 0.04 |
|
||
|
|
/storage/5E11AE2E90238B454402A2D489F5288BCB36C5906316FCEB4076B2A84F6093C3/7edec781244c4dd9aa2bff5f758fca26/STP/media/cd2ee7beaf3642418ca8676563c4a586/CAD_MLBU32-108226_ClevisFootMountingMLBU_Rollco.STP | 2 | MCE 32 | MLBU 32 | Galvanized steel | F MCE | 0.08 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D1 | D2 | R | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/8A5812852D34B9BBF9AFC3F51653EB45E9AF2EDAC056FE53A9976CCD585A9BBD/9c779f5effbb4f388503ac53cb815091/STP/media/2349ba87b6d54e3e9fa9b6903be7c9bd/CAD_MLBU25-108227_ClevisFootMountingMLBU_Rollco.STP | 25 | 15 | 12.1 | 23.0 (+0.3/0) | 27 (±0.5) | 3 (±0.5) | 18 | 6 (f7) | 5.5 | 7 |
|
||
|
|
/storage/5E11AE2E90238B454402A2D489F5288BCB36C5906316FCEB4076B2A84F6093C3/7edec781244c4dd9aa2bff5f758fca26/STP/media/cd2ee7beaf3642418ca8676563c4a586/CAD_MLBU32-108226_ClevisFootMountingMLBU_Rollco.STP | 32 | 20 | 16.1 | 29.5 (+0.3/0) | 30 (±0.5) | 4 (±0.5) | 24 | 8 (f7) | 6.6 | 10 |
|
-
-
