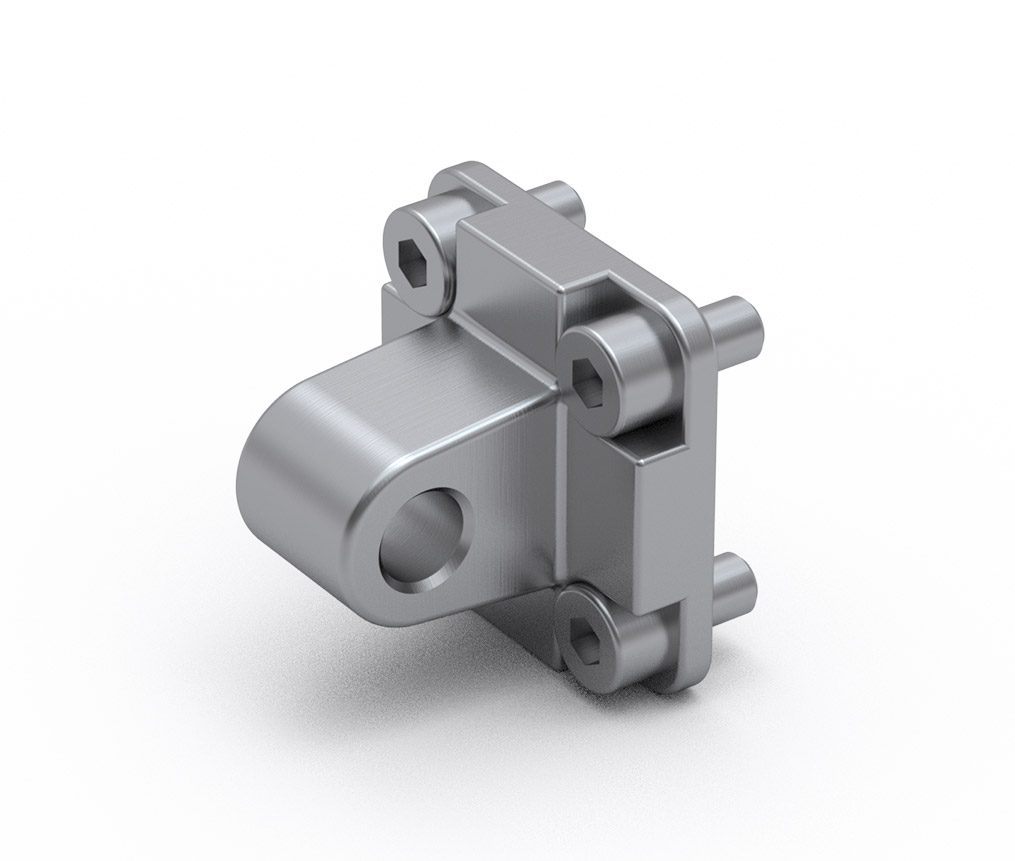

Swivel/clevis mount MASU
Dimensions in mm.
Mounting screws are included.
Mounting screws are included.
Download PDF
code.product.loadingpdf
+
Tilføj til PDF-katalog
Product Information
Material: Aluminium (MASU 45: Aluminium and galvanized steel)
| Designation | Select all | Lead Time * | Compatible with | Description | Material | Fmax (N) | Mass (kg) | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/C193075C0176D8E2F9EDE405E462B07C2E581B9ECD10B0CE48045767425DEB63/fbc9fcd3919344aaa3ff42a24b6300af/STP/media/4755b0591c754efe9142fa2b5e8d4447/CAD_MASU25-108243_SwivelClevisMountMASU_Rollco.STP | 2 | MCE 25 | MASU 25 | Aluminium | F MCE | 0.02 |
|
||
|
|
/storage/6CAB873774E6649BFEB6E5A8AA5A0B9C5186B7435A1FEEDD1244A522055DA8F9/9fa9ddd675004e13beb3d1735c0f41d2/STP/media/bfae4f5704934ae6bd4da3295d172380/CAD_MASU32-108244_SwivelClevisMountMASU_Rollco.STP | 2 | MCE 32 | MASU 32 | Aluminium | F MCE | 0.03 |
|
||
|
|
/storage/EF670D2E4DCCBB309681D035A823064E3822DFA3885EF44C67FED1A8E27AE392/f6df5cd765bb47fbb2154193ff16da2d/STP/media/e616a265fa1643b8b0229dc6ca7592c6/CAD_MASU45-108245_SwivelClevisMountMASU_Rollco.STP | 2 | MCE 45 | MASU 45 | Aluminium and galvanized steel | F MCE | 0.12 |
|
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | D1 | D2 | D3 | R1 | R2 | CAD | Compare | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
/storage/C193075C0176D8E2F9EDE405E462B07C2E581B9ECD10B0CE48045767425DEB63/fbc9fcd3919344aaa3ff42a24b6300af/STP/media/4755b0591c754efe9142fa2b5e8d4447/CAD_MASU25-108243_SwivelClevisMountMASU_Rollco.STP | 27 (±0.2) | 18 | 12 | 16 (±0.2) | 10 | 2.6 | 6 | 3 | - | 6 | 4.5 | 10 (h11) | 6 | 4.5 |
|
||
|
|
/storage/6CAB873774E6649BFEB6E5A8AA5A0B9C5186B7435A1FEEDD1244A522055DA8F9/9fa9ddd675004e13beb3d1735c0f41d2/STP/media/bfae4f5704934ae6bd4da3295d172380/CAD_MASU32-108244_SwivelClevisMountMASU_Rollco.STP | 34 (±0.2) | 22 | 16 | 20 (±0.2) | 14 | 2.6 | 6 | 3 | - | 8 | 5.5 | 12 (h11) | 8 | 5 |
|
||
|
|
/storage/EF670D2E4DCCBB309681D035A823064E3822DFA3885EF44C67FED1A8E27AE392/f6df5cd765bb47fbb2154193ff16da2d/STP/media/e616a265fa1643b8b0229dc6ca7592c6/CAD_MASU45-108245_SwivelClevisMountMASU_Rollco.STP | 48 (±0.2) | 32 | 26 | 22 (±0.2) | 13 | 5.5 | 9 | 45 | 53 | 10 | 6.6 | 14 (h11) | 10 | 5.5 |
|
-
-
