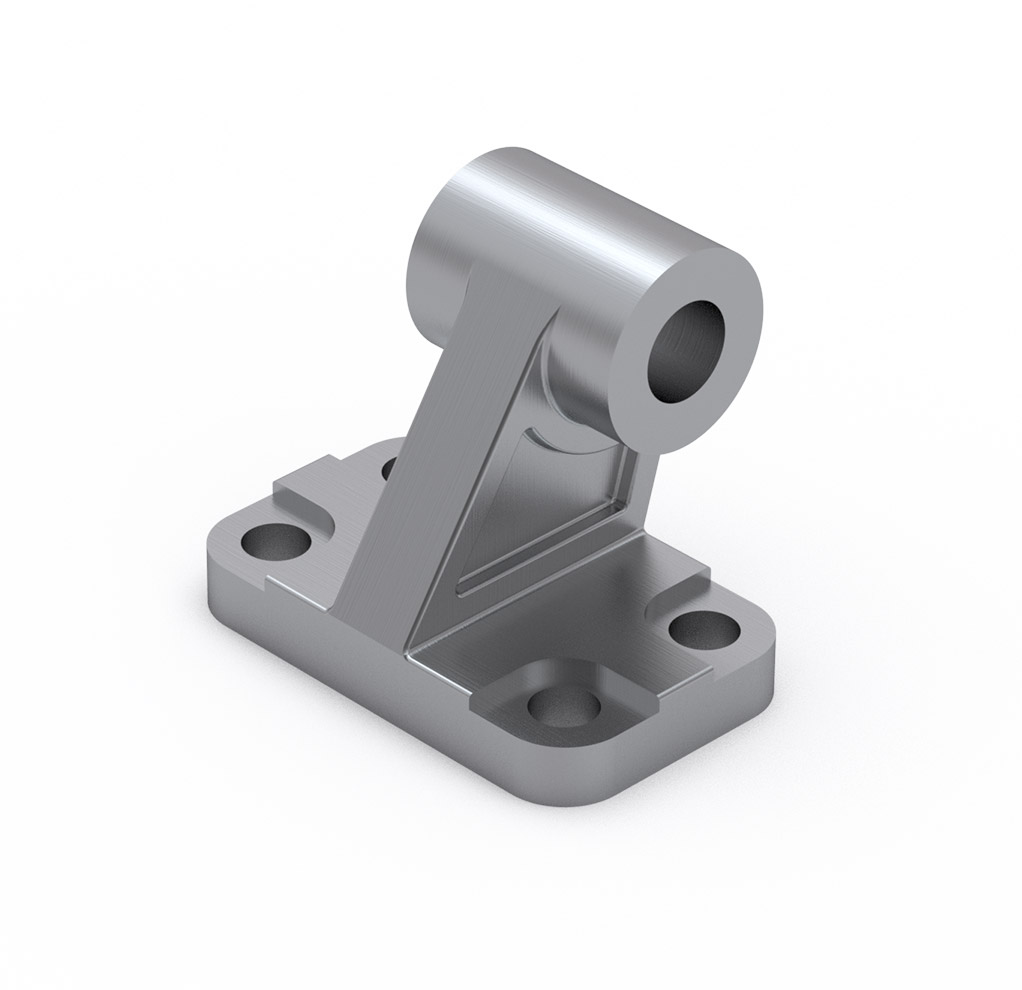

Swivel foot mounting MLG
Dimensions in mm.
Read more
Product Information
Material: Aluminium
Download PDF (all data)
code.product.loadingpdf
+
Add to PDF catalogue
| Designation | Select all | CAD | Compare | Get quote | Lead Time * | Compatible with | Material | Fmax (N) | Mass (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
2 | MCE 45 | Aluminium | F MCE | 0.08 |
*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.
| Designation | Select all | CAD | Compare | Get quote | L1 | L2 | L3 | L4 | L5 | L6 | L7 | L8 | L9 | L10 | L11 | L12 | D1 | D2 | D3 | R1 | R2 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
|
51 | 31 | 42 | 38 | 18 | 6.4 | 8 | 32 | 21 | 3 (+0.5/0) | 10 | 26 | 10 (H9) | 6.6 (H13) | 10.5 (+0.5/0) | 10 | 5.5 |
-
-
