MC Hand Clamps

STOCK ITEM
Clamping elements are designed to be used when holding a position on the rail. Due to the height difference of the rail guide blocks, a distance plate is sometimes needed to ensure proper function of the hand clamp. Please see the selection guide for further information.

Temperature scope of application 0 - 70°C.
The basic application should be rigid enough.

Note!
The holding force value is achievable by light oily rail.
For measurement L2 the hand level is not snap in place.
Height compensation with distance plate (h) according level of runner block.

Dimensions in mm.
Download PDF

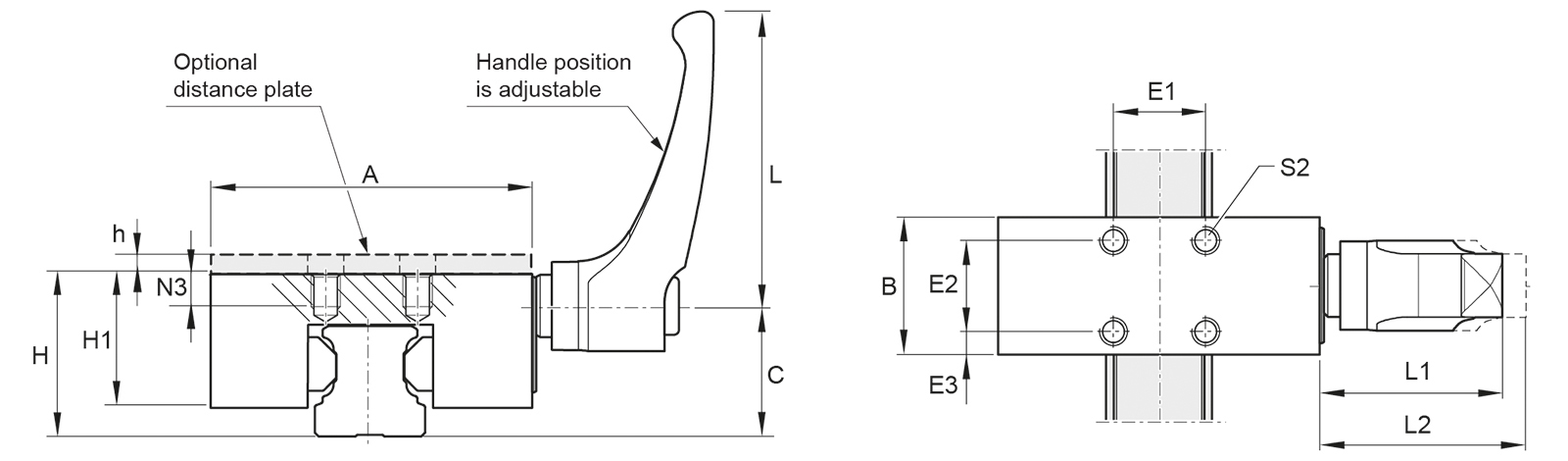

Technical Drawing
Designation Select all Lead Time * H1 Size Holding Force Tightening Torque Compatible with Remark
1 19 15 1200 N 4 Nm HRC 15 MN, HRC 15 FN Use Distance Plate MP1501 HRC for HRC 15 MN
Compare
Get quote
1 23 20 1200 N 5 Nm HRC 20 MN, HRC 20 ML, HRC 20 FN, HRC 20 FL Use Distance Plate MP2001 HRC
Compare
Get quote
1 26 25 1200 N 7 Nm HRC 25 MN, HRC 25 ML, ERC 25 MN, ERC 25 ML, HRC 25 FN, HRC 25 FL Use Distance Plate MP2501 HRC
Compare
Get quote
1 33 30 2000 N 12 Nm HRC 30 MN, HRC 30 ML, HRC 30 FN, HRC 30 FL Use Distance Plate MP3001 HRC for HRC 30 MN and HRC 30 ML
Compare
Get quote
2 39 35 2000 N 12 Nm HRC 35 MN, HRC 35 ML, HRC 35 FN, HRC 35 FL Use Distance Plate MP3501 HRC for HRC 35 MN and HRC 35 ML
Compare
Get quote
2 44 45 2000 N 15 Nm HRC 45 MN, HRC 45 ML, HRC 45 FN, HRC 45 FL Use Distance Plate MP4501 HRC for HRC 45 MN and HRC 45 ML
Compare
Get quote
