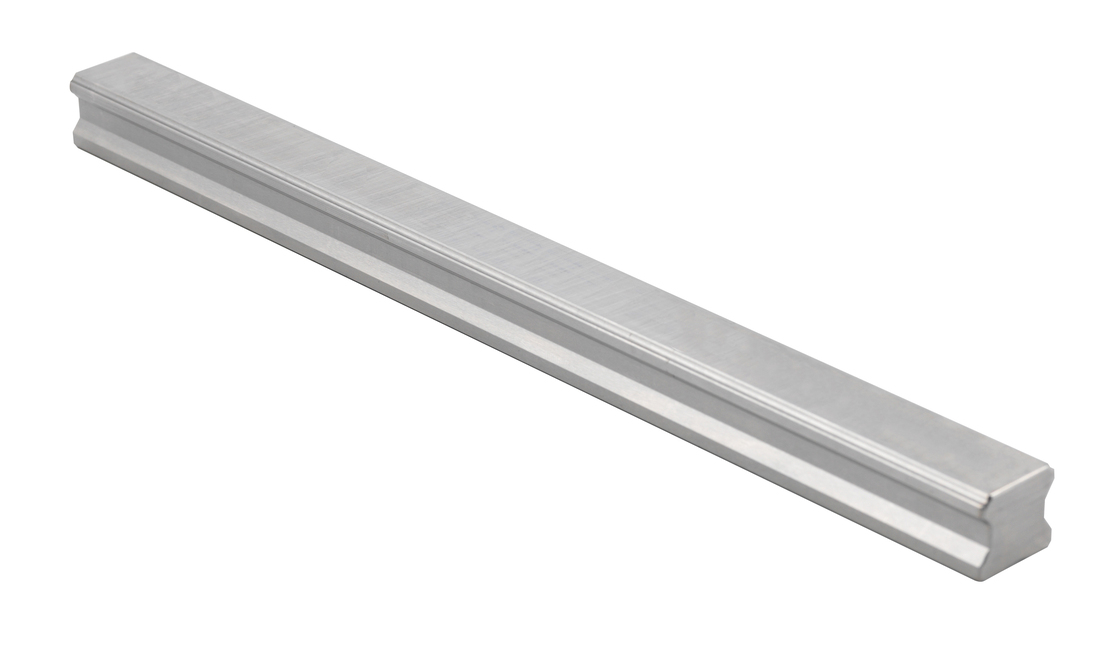

Bottom Mounting Rail SBI-B

STOCK ITEM
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Note: If the maximum length exceeds this size please contact Rollco.

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.
Dimensions in mm.

For more information about recommended screw size, strength and tightening torque, see Linear Rail SBI Technical Information.
Download PDF code.product.loadingpdf
+ Tilføj til PDF-katalog

Product Information

Linear_Rail_SBI_Technical_Information.pdf
Linear_Rail_SBI_OrderCodes.pdf

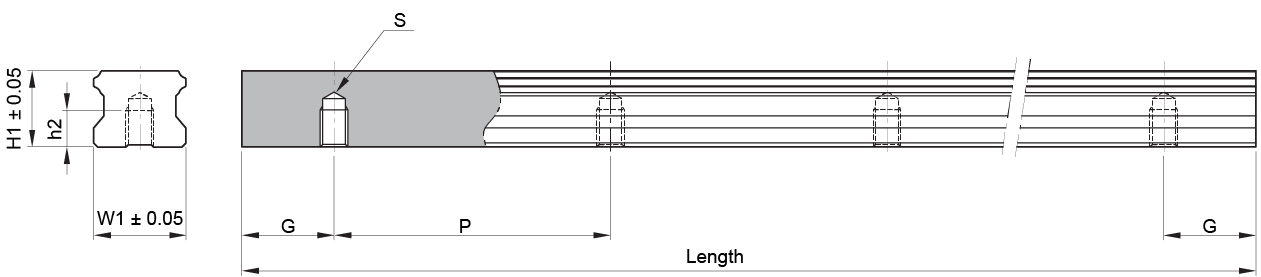

Designation Select all Lead Time * H1 W1 Hole Pitch (P) G S h2 Length Weight Rail (g/m) CAD Compare
1 13 15 60 20 M5 8 3000 1390
Get quote
1 16.5 20 60 20 M6 9 4000 2370
Get quote
1 20 23 60 20 M6 9 4000 3260
Get quote
1 23 28 80 20 M8 12 4000 4630
Get quote
1 26 34 80 20 M8 12 4000 6450
Get quote
1 32 45 105 22.5 M12 18 4000 10490
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

  • STOCK ITEM RECOMMENDED

    SBI FL
    Flanged – normal length – standard height (most common)
  • STOCK ITEM RECOMMENDED

    SBI SL
    Slim – normal length – standard height
  • STOCK ITEM RECOMMENDED

    SBI FLL
    Flanged – long – standard height
  • STOCK ITEM RECOMMENDED
  • STOCK ITEM
  • STOCK ITEM
  • STOCK ITEM

    SBI FV
    Flanged – short – low height
  • STOCK ITEM
