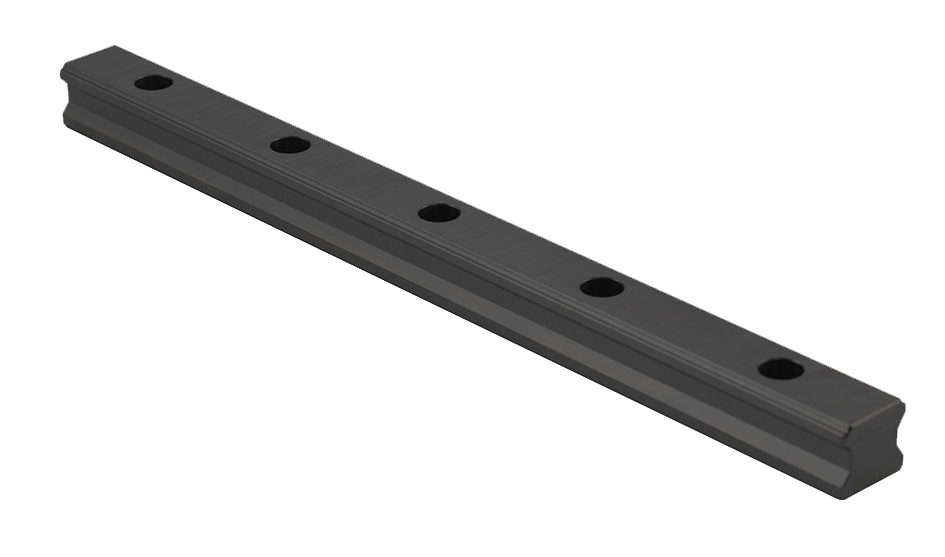

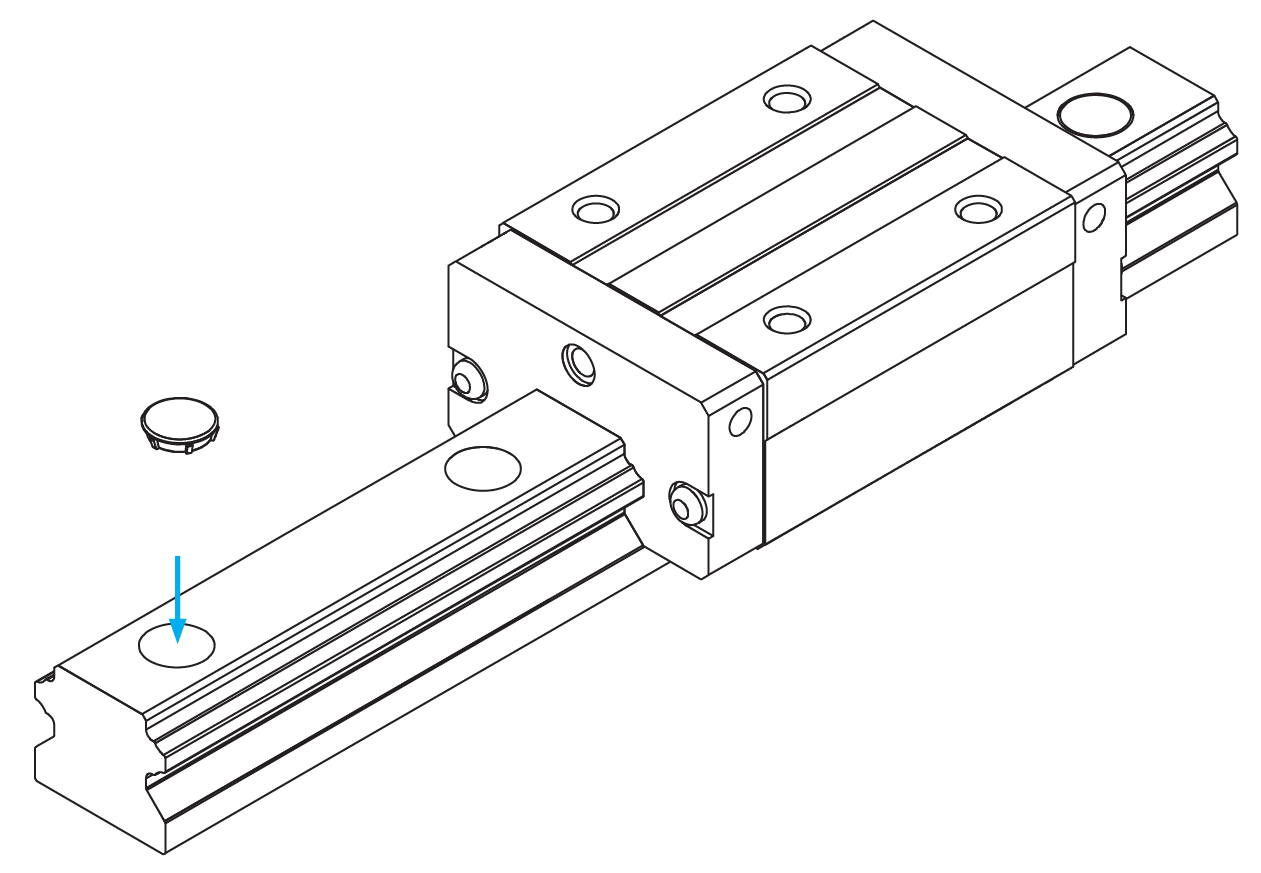

Standard Rail SBI Raydent

CORROSION RESISTANT STANDARD
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Note: If the maximum length exceeds this size please contact Rollco.

Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Delivered with steel balls of standard bearing steel. Stainless steel balls are available on special request and for a few sizes only. Contact Rollco for more information.

Dimensions in mm.

For more information about recommended screw size, strength and tightening torque, see Linear Rail SBI Technical Information.

Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Read more
Download PDF (all data) code.product.loadingpdf
+ Add to PDF catalogue
Configure CAD Download CAD
Designation Select all CAD Compare Get quote Lead Time * Weight Rail (g/m) Recommended screw size
1 1300 MC6S M4
1 2200 MC6S M5
1 3000 MC6S M6
1 4250 MC6S M8
1 6020 MC6S M8
1 9770 MC6S M12
2 13720 MC6S M14
2 23170 MC6S M16

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote W1 H1 D x d x g1 Hole Pitch (P) G Length
15 13 7.5 x 4.5 x 5.5 60 20 3000
20 16.5 9.5 x 6 x 8.5 60 20 4000
23 20 11 x 7 x 9 60 20 4000
28 23 14 x 9 x 12 80 20 4000
34 26 14 x 9 x 12 80 20 4000
45 32 20 x 14 x 17 105 22.5 4000
53 38 23 x 16 x 20 120 30 4000
63 53 26 x 18 x 22 150 35 4000
