SBI SV Raydent

CORROSION RESISTANT

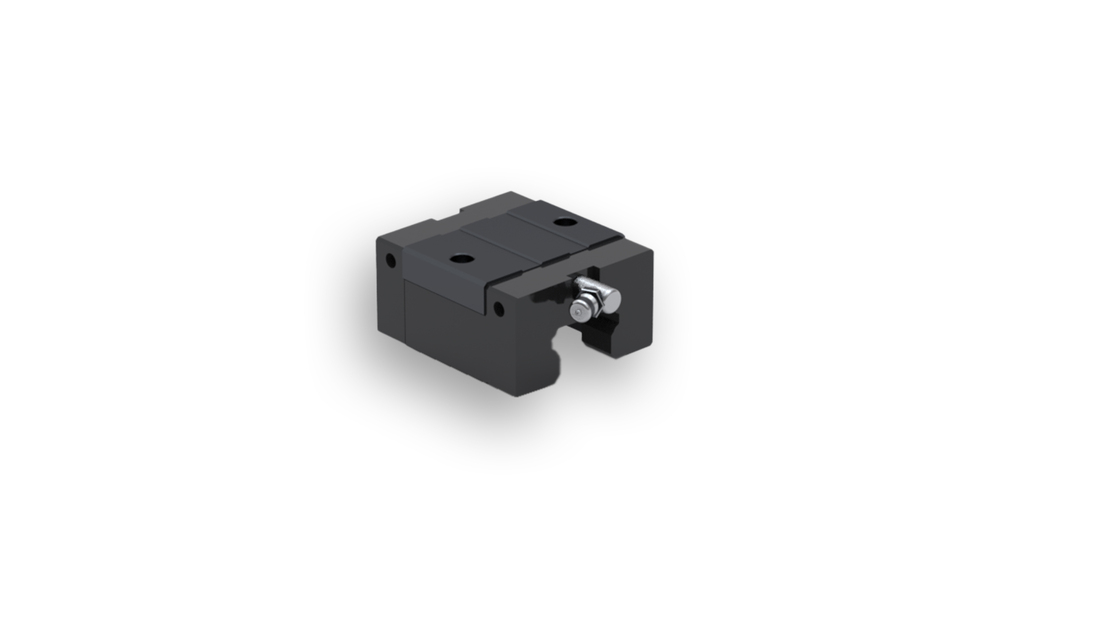

Super short block without flange. Side-nipple, dustproof end seal and self-lubricant container end seal as option.

* S: Bolt size for bottom mounting type of block

Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.

Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Read more
Designation Select all CAD Compare Get quote Lead Time * Dynamic Load Capacity C (N) Static Load Capacity C0 (N) Static Moment Mr0 (Nm) Static Moment Mp0 (Nm) Static Moment My0 (Nm) Dynamic Moment Mr (Nm) Dynamic Moment Mp (Nm) Dynamic Moment My (Nm) Weight Block (g) Weight Rail (g/m)
Get quote 2 5800 12800 40 30 30 18 14 14 100 1300
Get quote 2 9400 20200 120 100 100 56 47 47 240 2200
Get quote 2 12400 26100 190 170 170 90 81 81 370 3000

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all CAD Compare Get quote L H W W1 W2 L1 H1 h2 S1 S2 D x d x g1 Hole Pitch (P) MxDP N1 N2 N3 P2 E G P T Length
Get quote 39.9 24 34 15 9.5 21.3 13 21 4.5 3.8 7.5 x 4.5 x 5.5 60 M4x4 M4x0.7 Ø 3.5 3.4 26 5.5 20 60 6 3000
Get quote 49.1 28 44 20 12 27.1 16.5 23.4 4.8 4 9.5 x 6 x 8.5 60 M5x5 M6x0.75 Ø 3.5 5 32 12 20 60 7.8 4000
Get quote 52.6 33 48 23 12.5 30.6 20 27.5 5.4 5.4 11 x 7 x 9 60 M6x6 M6x0.75 Ø 3.5 5 35 12 20 60 9 4000
