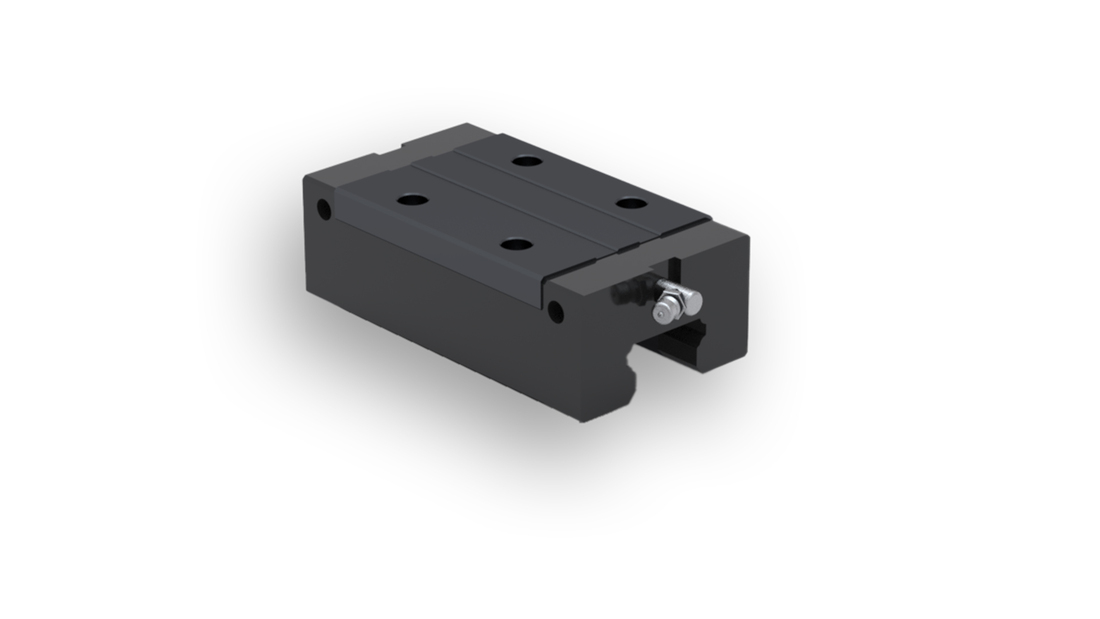

SBI HL/HLS/CL/CLS Raydent

CORROSION RESISTANT STOCK ITEM

Low height block without flange. Side-nipple, dustproof end seal and self-lubricant container end seal as option.

* S: Bolt size for bottom mounting type of block

Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.

Dimensions in mm.

Lead times in the table below are only indications. Choice of preload and other options will affect lead time. Please contact us for exact delivery time for your request.

Note! Remember to choose Raydent under Surface Treatment when configuring your product.

Download PDF code.product.loadingpdf

+ Tilføj til PDF-katalog

Designation	Lead Time *	Dynamic Load Capacity C (N)	Static Load Capacity C0 (N)	Static Moment Mr0 (Nm)	Static Moment Mp0 (Nm)	Static Moment My0 (Nm)	Dynamic Moment Mr (Nm)	Dynamic Moment Mp (Nm)	Dynamic Moment My (Nm)	Weight Block (g)	Weight Rail (g/m)
SBI15HL-R	2	14100	24100	160	170	170	94	99	99	190	1300	Get quote
SBI15HLS-R	2	12300	18300	130	80	80	87	54	54	150	1300	Get quote
SBI20CL-R	2	22200	38200	360	330	330	209	192	192	390	2200	Get quote
SBI20CLS-R	2	19100	27000	270	150	150	191	106	106	230	2200	Get quote
SBI25CL-R	2	31500	52100	560	560	560	339	339	339	660	3000	Get quote
SBI25HL-R	2	31500	52100	560	560	560	339	339	339	690	3000	Get quote
SBI30HL-R	1	42800	65400	850	770	770	556	504	504	1040	4250	Get quote
SBI35HL-R	2	59500	89100	1420	1280	1280	948	855	855	1560	6020	Get quote
SBI45HL-R	2	79200	116300	2480	1900	1900	1689	1294	1294	2800	9770	Get quote
SBI55HL-R	2	127300	181800	4810	2970	2970	3368	2080	2080	4420	13720	Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation	System Height (H)	System Width (W)	Block Length (L)	W2
SBI15HL-R	24	34	63.8	9.5	Get quote
SBI15HLS-R	24	34	56.8	9.5	Get quote
SBI20CL-R	28	44	78.8	12	Get quote
SBI20CLS-R	28	42	65.2	11	Get quote
SBI25CL-R	33	48	92	12.5	Get quote
SBI25HL-R	36	48	92	12.5	Get quote
SBI30HL-R	42	60	107.6	16	Get quote
SBI35HL-R	48	70	124.6	18	Get quote
SBI45HL-R	60	86	142	20.5	Get quote
SBI55HL-R	70	100	172.4	23.5	Get quote

Designation	P2	P1
SBI15HL-R	26	26	Get quote
SBI15HLS-R	26	26	Get quote
SBI20CL-R	32	32	Get quote
SBI20CLS-R	32	32	Get quote
SBI25CL-R	35	35	Get quote
SBI25HL-R	35	35	Get quote
SBI30HL-R	40	40	Get quote
SBI35HL-R	50	50	Get quote
SBI45HL-R	60	60	Get quote
SBI55HL-R	75	75	Get quote

Designation	W1	H1	P	D x d x g1	Length	Hole Pitch (P)
SBI15HL-R	15	13	60	7.5 x 4.5 x 5.5	3000	60	Get quote
SBI15HLS-R	15	13	60	7.5 x 4.5 x 5.5	3000	60	Get quote
SBI20CL-R	20	16.5	60	9.5 x 6 x 8.5	4000	60	Get quote
SBI20CLS-R	20	16.5	60	9.5 x 6 x 8.5	4000	60	Get quote
SBI25CL-R	23	20	60	11 x 7 x 9	4000	60	Get quote
SBI25HL-R	23	20	60	11 x 7 x 9	4000	60	Get quote
SBI30HL-R	28	23	80	14 x 9 x 12	4000	80	Get quote
SBI35HL-R	34	26	80	14 x 9 x 12	4000	80	Get quote
SBI45HL-R	45	32	105	20 x 14 x 17	4000	105	Get quote
SBI55HL-R	53	38	120	23 x 16 x 20	4000	120	Get quote

Designation	Block Length (L)	System Width (W)	L1	h2	W2	S1	E	S2	N3	N1	N2	MxDP	H1
SBI15HL-R	63.8	34	45.2	21	9.5	4.5	5.5	3.8	3.8	M4x0.7	Ø 3.5	M4x4	13	Get quote
SBI15HLS-R	56.8	34	38.2	21	9.5	4.5	5.5	3.8	3.8	M4x0.7	Ø 3.5	M4x4	13	Get quote
SBI20CL-R	78.8	44	56.8	23.4	12	4.8	12	4	5	M6x0.75	Ø 3.5	M5x5	16.5	Get quote
SBI20CLS-R	65.2	42	43.2	23.4	11	4.8	12	4.3	5	M6x0.75	Ø 3.5	M5x5	16.5	Get quote
SBI25CL-R	92	48	70	27.5	12.5	5.4	12	5.4	5	M6x0.75	Ø 3.5	M6x6	20	Get quote
SBI25HL-R	92	48	70	30.5	12.5	6	12	5	5.5	M6x0.75	Ø 3.5	M6x6	20	Get quote
SBI30HL-R	107.6	60	79.6	35	16	8.5	12	7.8	5	M6x0.75	Ø 5.7	M8x8	23	Get quote
SBI35HL-R	124.6	70	94.6	40.5	18	8	12	8	6	M6x0.75	Ø 5.7	M8x8	26	Get quote
SBI45HL-R	142	86	108	51	20.5	10.5	13.5	9.3	6.5	PT1/8	Ø 5.7	M10x10	32	Get quote
SBI55HL-R	172.4	100	131	58	23.5	12	13	12	8	PT1/8	Ø 8.7	M12x12	38	Get quote
