Standard Block Long Flange Type SBI-FLL

Dimensions in mm.
Measurement S = Bolt size for bottom mounting type of block.

All blocks and rails are also available in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.

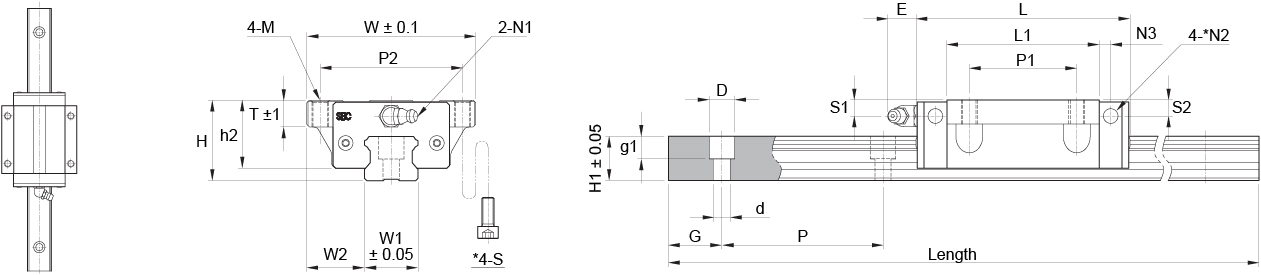

Technical Drawing
Designation System Height (H) System Width (W) Block Length (L) Length Hole Pitch (P) Dxdxg1 H1 W1 P1 P2 E
24 47 79,40 3.000,00 60 7,5 x 4.5 x 5,5 13 15 30 38 5,50
30 63 96,40 4.000,00 60 9,5 x 6 x 8,5 16,50 20 40 53 12
36 70 108 4.000,00 60 11 x 7 x 9 20 23 45 57 12
42 90 131,60 4.000,00 80 14 x 9 x 12 23 28 52 72 12
48 100 152,60 4.000,00 80 14 x 9 x 12 26 34 62 82 12
60 120 174 4.000,00 105 20 x 14 x 17 32 45 80 100 13,50
70 140 211,80 4.000,00 120 23 x 16 x 20 38 53 95 116 13
90 170 272,20 4.000,00 150 26 x 18 x 22 53 63 100 142 13
Technical Drawing
Designation E G H1 h2 L1 M N1 N2 N3 S S1 S2 T W1 W2
5,50 20 13 21 60,80 M5 M4x0,7 Ø 3,5 3,80 M4 4,50 3,80 9 15 16
12 20 16,50 25,40 74,40 M6 M6x0,75 Ø 3,5 5 M5 6 5,80 12 20 21,50
12 20 20 30,50 86 M8 M6x0,75 Ø 3,5 5 M6 6 5 14 23 23,50
12 20 23 35 103,60 M10 M6x0,75 Ø 5,7 5 M8 8,50 7,80 15,50 28 31
12 20 26 40,50 122,60 M10 M6x0,75 Ø 5,7 6 M8 8 8 15 34 33
13,50 22,50 32 51 140 M12 PT 1/8 Ø 5,7 6,50 M10 10,50 9,30 18 45 37,50
13 30 38 58 170,40 M14 PT1/8 Ø 8,7 8 M12 12 12 22 53 43,50
13 35 53 71 222,80 M16 PT1/8 Ø 8,7 10 M14 14 14 26 63 53,50
Additional Drawing 1

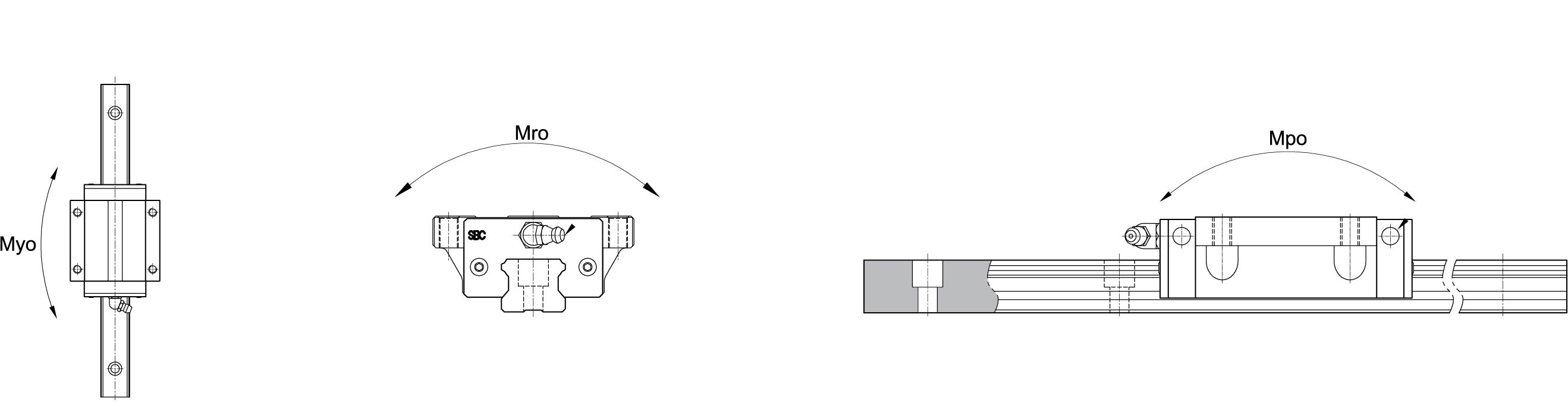

Designation Dynamic Load Capacity C Static Load Capacity C0 Static Moment Mr0 Static Moment Mp0 Static Moment My0 Weight Block Weight Rail
17100 N 31700 N 210 Nm 290 Nm 290 Nm 260 g 1300 g/m
27900 N 50000 N 470 Nm 560 Nm 560 Nm 540 g 2200 g/m
36700 N 64400 N 690 Nm 840 Nm 840 Nm 850 g 3000 g/m
51300 N 84700 N 1100 Nm 1300 Nm 1300 Nm 1370 g 4250 g/m
71300 N 115300 N 1830 Nm 2120 Nm 2120 Nm 2040 g 6020 g/m
94800 N 150500 N 3210 Nm 3140 Nm 3140 Nm 3690 g 9770 g/m
147900 N 224500 N 5950 Nm 4780 Nm 4780 Nm 5820 g 13720 g/m
232500 N 354100 N 11150 Nm 9860 Nm 9860 Nm 11980 g 23170 g/m
