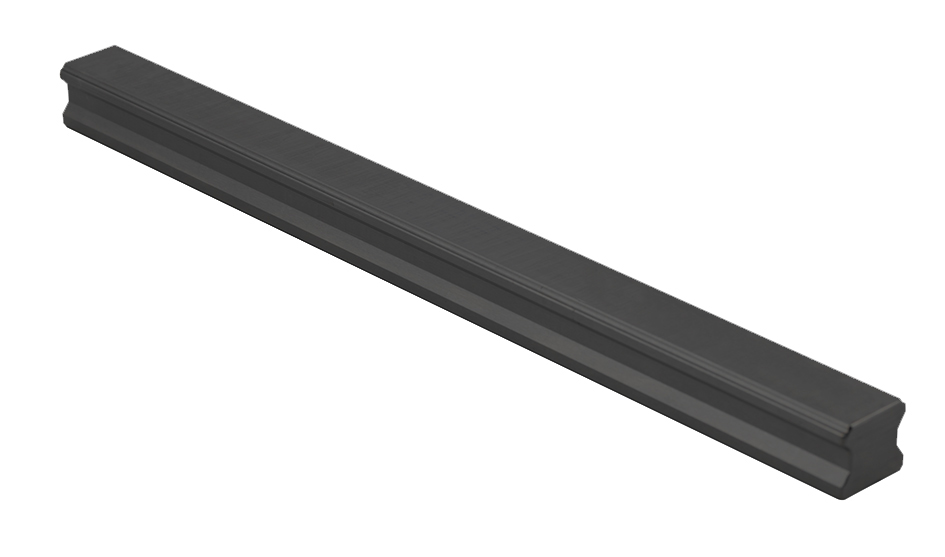

Bottom Mounting Rail SBI-B Raydent

CORROSION RESISTANT STOCK ITEM
Cut to length acc. to request.
Rails can be joint together for extra long lengths.
Contact Rollco for more information.

Note: If the maximum length exceeds this size please contact Rollco.

Blocks and rails are in Raydent treated material:
• Corrosion resistant
• Patented black surface
• Balls of stainless steel available as option

Please contact Rollco for more information.

Dimensions in mm.

For more information about recommended screw size, strength and tightening torque, see Linear Rail SBI Technical Information.

Note! Remember to choose Raydent under Surface Treatment when configuring your product.
Download PDF code.product.loadingpdf
+ Tilføj til PDF-katalog

Product Information

Linear_Rail_SBI_Technical_Information.pdf
Linear_Rail_SBI_OrderCodes.pdf
Designation Select all Lead Time * Weight Rail (g/m) CAD Compare
1 1390
Get quote
1 2370
Get quote
1 3260
Get quote
1 4630
Get quote
1 6450
Get quote
2 10490
Get quote

*Green: Normally in stock, contact us for current status. Blue: Contact us for delivery time.

Designation Select all S CAD Compare
M5
Get quote
M6
Get quote
M6
Get quote
M8
Get quote
M8
Get quote
M12
Get quote
Designation Select all W1 H1 Length Hole Pitch (P) CAD Compare
15 13 3000 60
Get quote
20 16.5 4000 60
Get quote
23 20 4000 60
Get quote
28 23 4000 80
Get quote
34 26 4000 80
Get quote
45 32 4000 105
Get quote
Designation Select all h2 H1 CAD Compare
8 13
Get quote
9 16.5
Get quote
9 20
Get quote
12 23
Get quote
12 26
Get quote
18 32
Get quote
