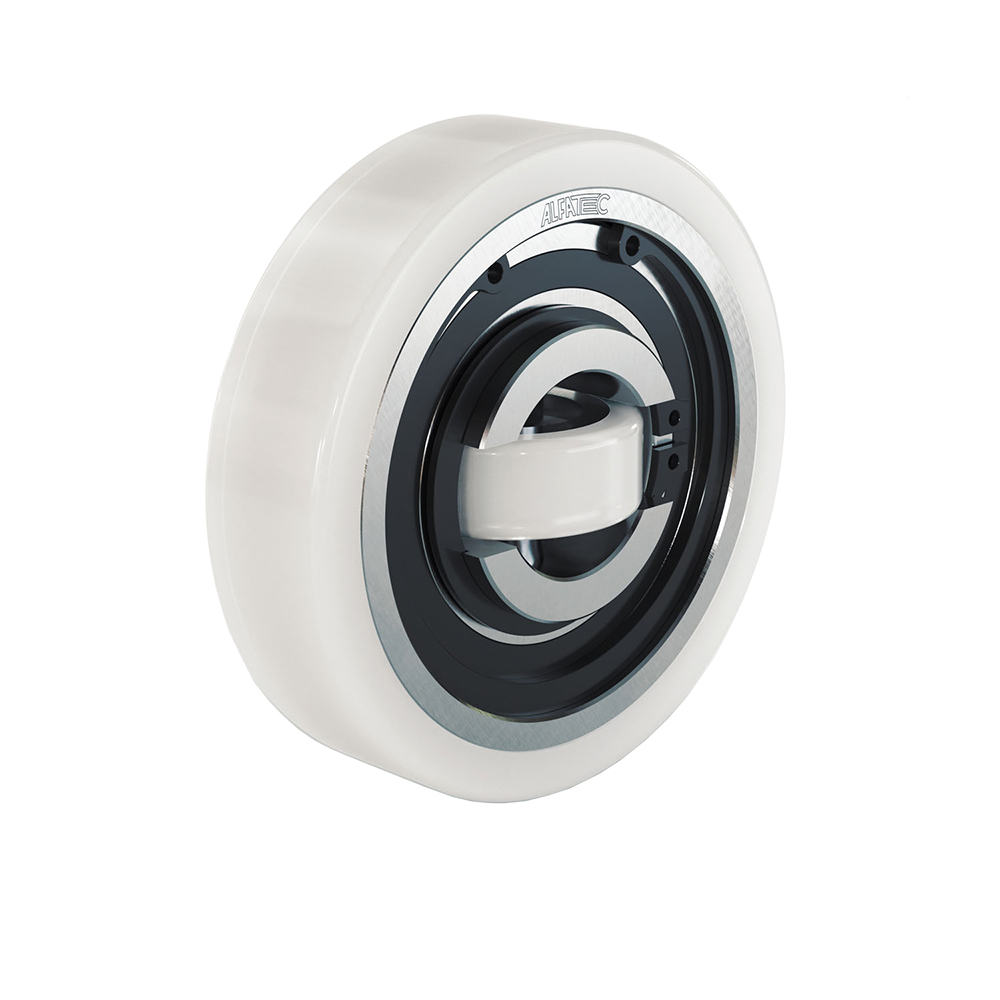

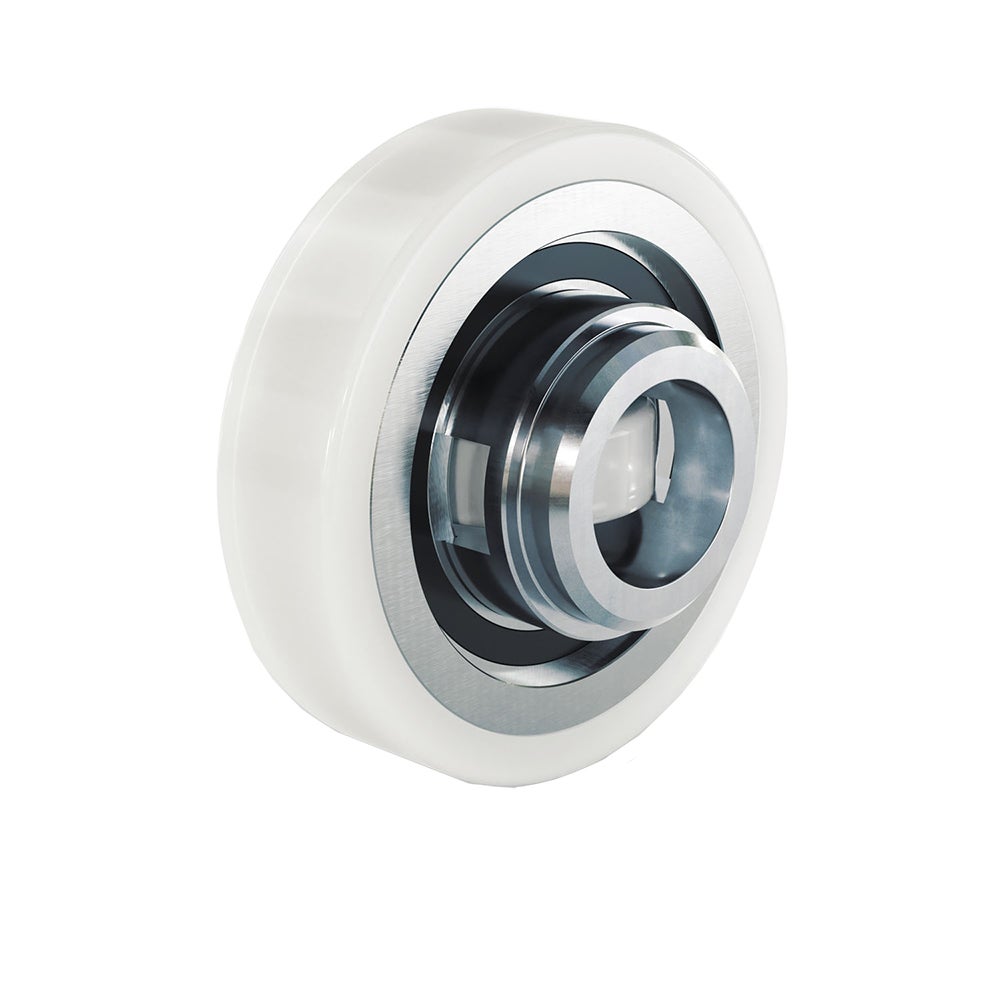

Polyamide Light Roller PAS ---.0200

• Polyamide roller combined – fixed
• Lubricated for lifetime
• High abrasion resistance
• Low friction
• High chemical resistance to alcohol, salts, greases and certain acids and alkalis in diluted concentration.

Reduction of value by speed of:
1 m/sec: 0%
2 m/sec: -20%
3 m/sec: -30%

Use profile UP---.0730. See Fixing element rectangular and square.

Order example: Roller + fixing plate PAS040.0360/BQ1000
Roller Ø 40 mm - welded with mounting element 50 mm x 50 mm x 8 mm

Dimensions in mm.

Product Information

Temperature: Maximum working temperature 80° C
Speed: Travel speed up to 5 m/sec
Designation System Load Capacity Radial System Load Capacity Axial
2500 N 900 N
6000 N 1300 N

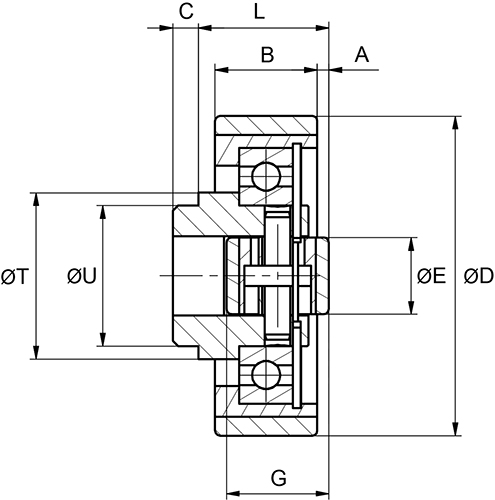

Technical Drawing
Designation A B C D E G L T U
6,50 25 8 101,20 15 40 41 51 45
4,50 40 10 125 30 40 51 65 55
