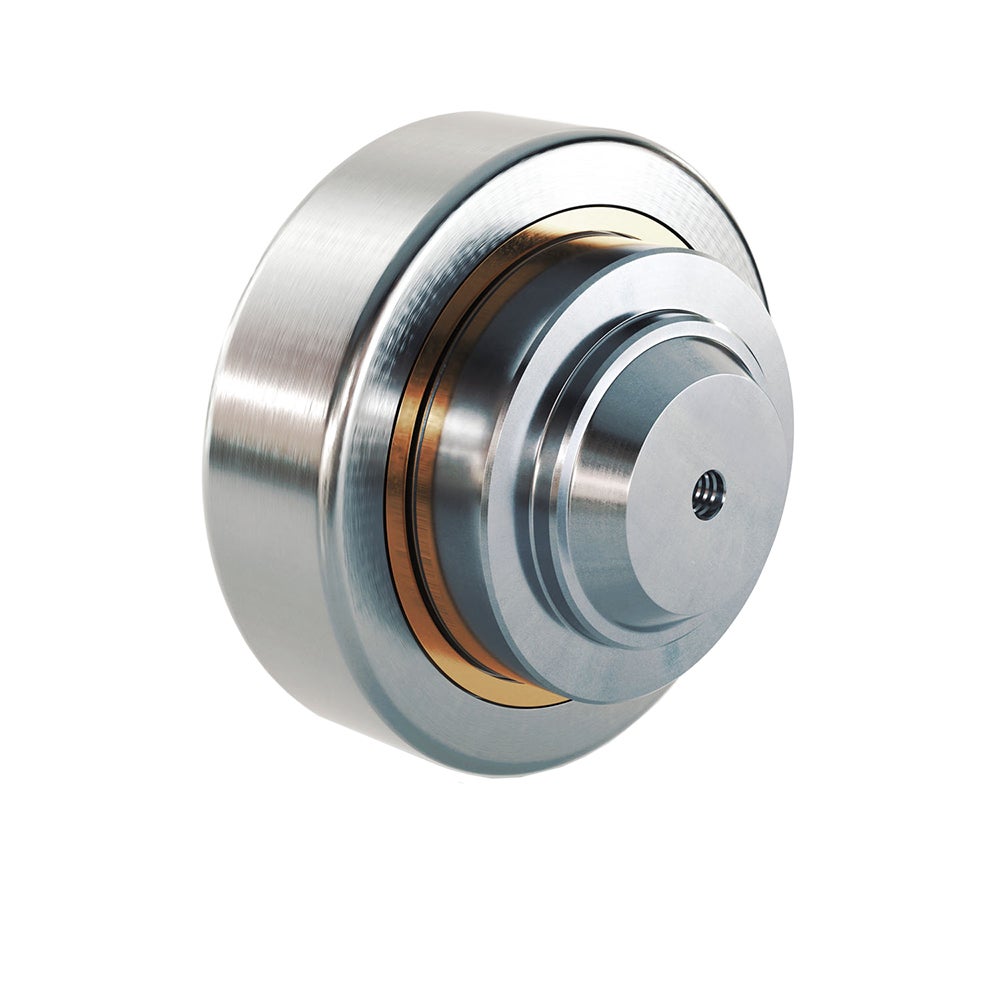

Standard Roller Fixed TR---. 0200

• Lubricated for lifetime
• Optional from size 60 relubricable.

Use profile UP---.0700. Profile UP---.0730 for TR050.0200
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! Dynamic load capacity refers to bearing.

Dimensions in mm.

Product Information

Designation Lead Time * Dynamic Load Capacity Radial Dynamic Load Capacity Axial System Load Capacity Radial System Load Capacity Axial
2 24500 N 7500 N 5300 N 2000 N
2 31000 N 11000 N 8870 N 2950 N
2 45500 N 13000 N 11400 N 3150 N
2 48000 N 18000 N 12870 N 5000 N
2 68000 N 23000 N 20370 N 5100 N
2 81000 N 31000 N 24060 N 8900 N
2 110000 N 43000 N 33440 N 9800 N
2 151000 N 68000 N 51940 N 17400 N
2 207000 N 73000 N 76000 N 23000 N

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

Technical Drawing
Designation B D F G H L R T U
17 52,50 6 5 33 27 16 40 30
20 62,50 7 9 37,50 30,50 20 42 30
23 70,10 8 10,50 44 36 22 48 35
23 77,70 11,50 10,50 48 36,50 24 54 40
30 88,40 13 10,50 57 44 26 59 45
31 107,70 14 20 69 55 34 71 60
37 123 16,30 14 72,30 56 40 80 60
45 149 20 8,50 78,50 58,50 50 103 60
57,30 180 19,40 12,50 95,70 76,30 60 124 100
