Light U-Profile UP---.0730

• Higher wear-resistance
• Fine grained structure
• Easy to weld
• Special machining on request
• Max length in one piece 8 m

Ordering example: UP 050.0730 - 2800
U-Profile with inside measurement 53 mm, length 2800 mm

Dimensions in mm.

Product Information

Material: S235J2
Designation Weight
2.62 kg/m
5.3 kg/m
5.8 kg/m
8.3 kg/m
14.3 kg/m
16.9 kg/m
18.41 kg/m
24.1 kg/m

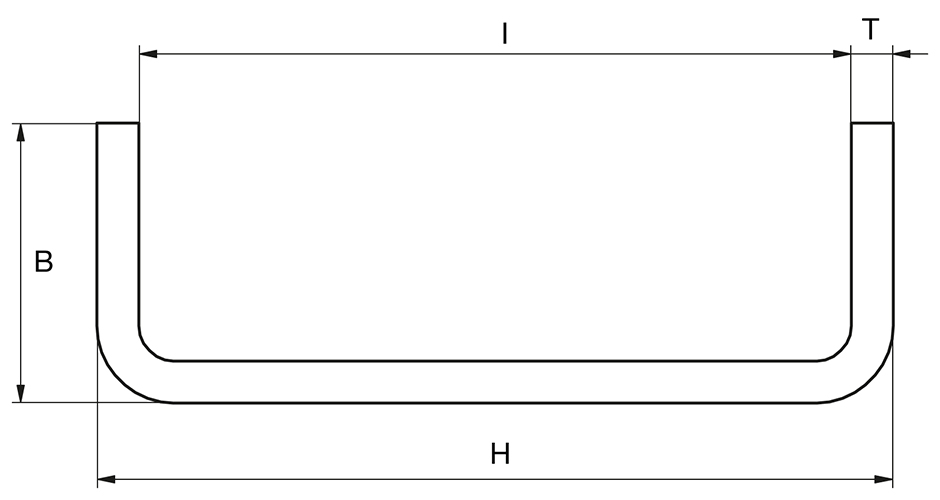

Technical Drawing
Designation B H I T
24 48,50 40,50 4
30 65 53 6
33 75 63 6
40 114 102 6
56 142 126 8
65 162 146 8
73 175 159 8
70 200 180 10
