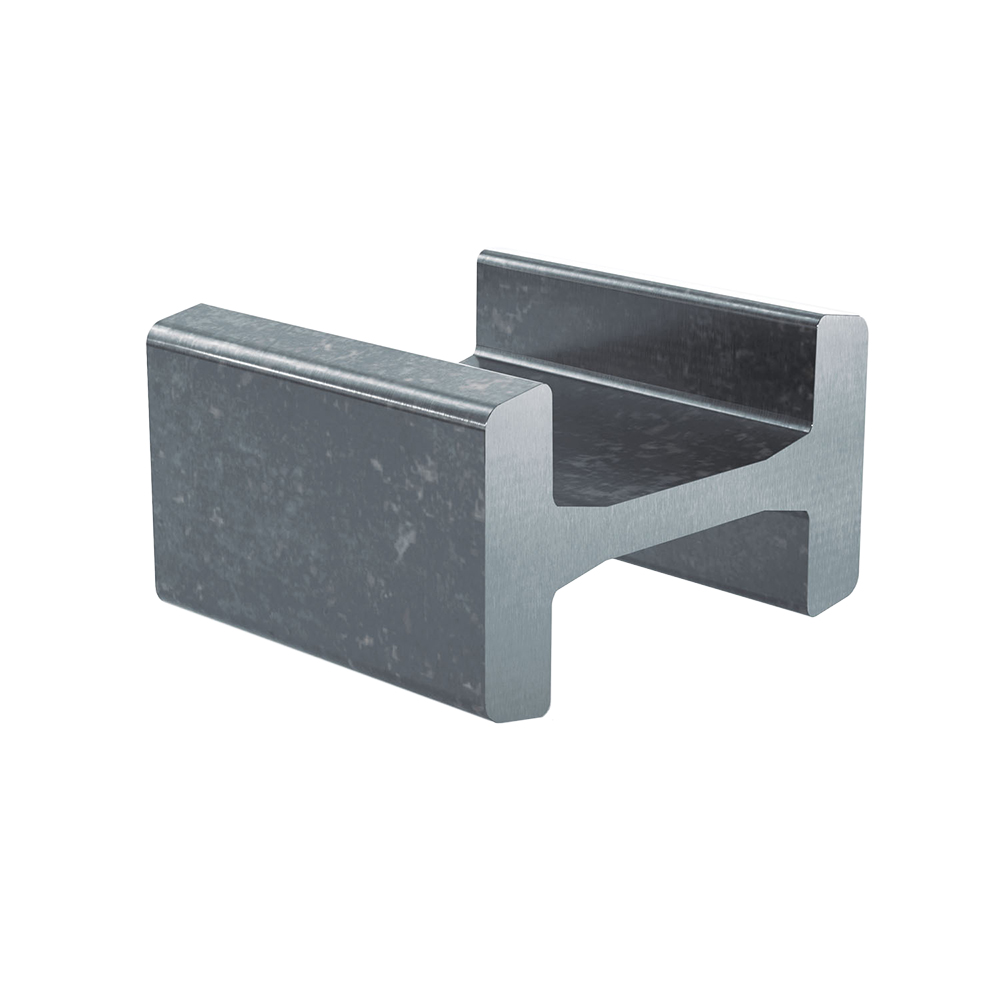

I-Profile IP---.0800

• Higher wear resistance
• Fine grained structure
• Easy to weld

Versions of delivery:
Standard IP---.0800
Fine straightened style ± 0,3 mm/m IP---.0801
Sandblasted IP---.0802
Sandblasted + fine straightened style IP---.0803

Ordering example: IP 070.0800-2800 (I-Profile with inside measurement 70 mm, length 2800 mm)

Dimensions in mm.

Product Information

Material: Material 18MnNb 6 with plenty more load capacity by add-on of Niob (Nb)
Designation Weight
21,0 kg/m
19,4 kg/m
25,3 kg/m
34,0 kg/m
40,8 kg/m
51,5 kg/m

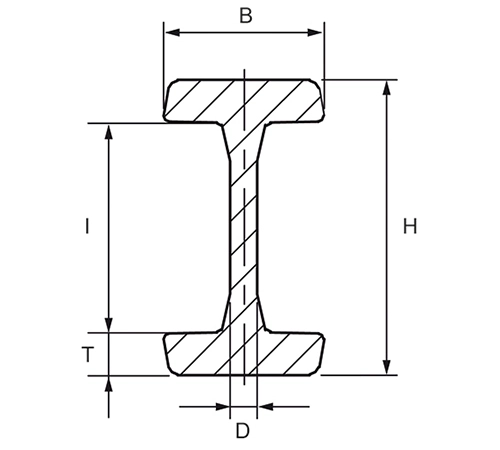

Technical Drawing
Designation B D H I T
72 ±1 14 ±0,5 86,50 62,7 +0,8 12 ±0,5
65 ±1 9 ±0,5 98 70 +1 14 ±0,5
66 ±1 11 ±0,5 113,90 77,9 +1 18 ±0,5
81 ±1,25 12 ±0,5 129,60 88,6 +1 20,5 ±0,5
83 ±1 14 ±0,5 152,40 108,4 ±0,5 22 ±0,5
90 ±1,3 15 ±0,5 175 ±0,5 123,8 ±0,5 25,6 ±0,5
