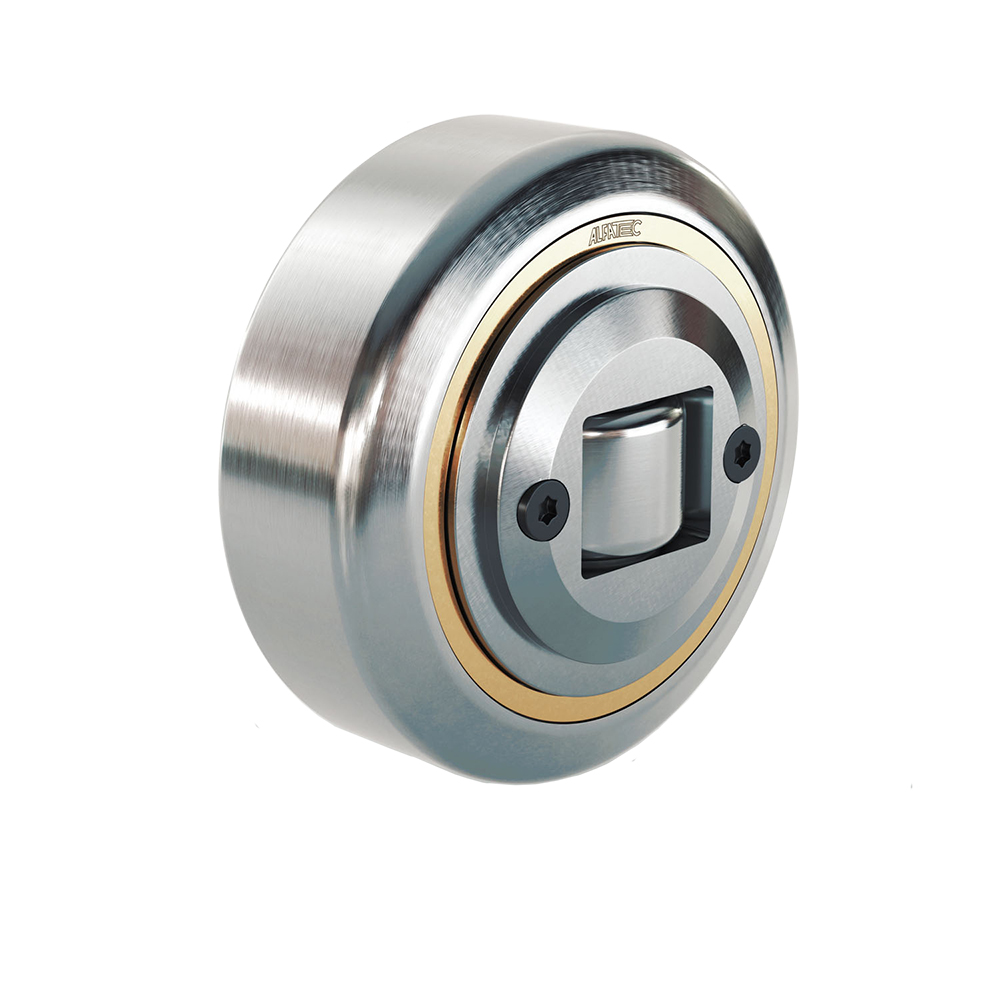

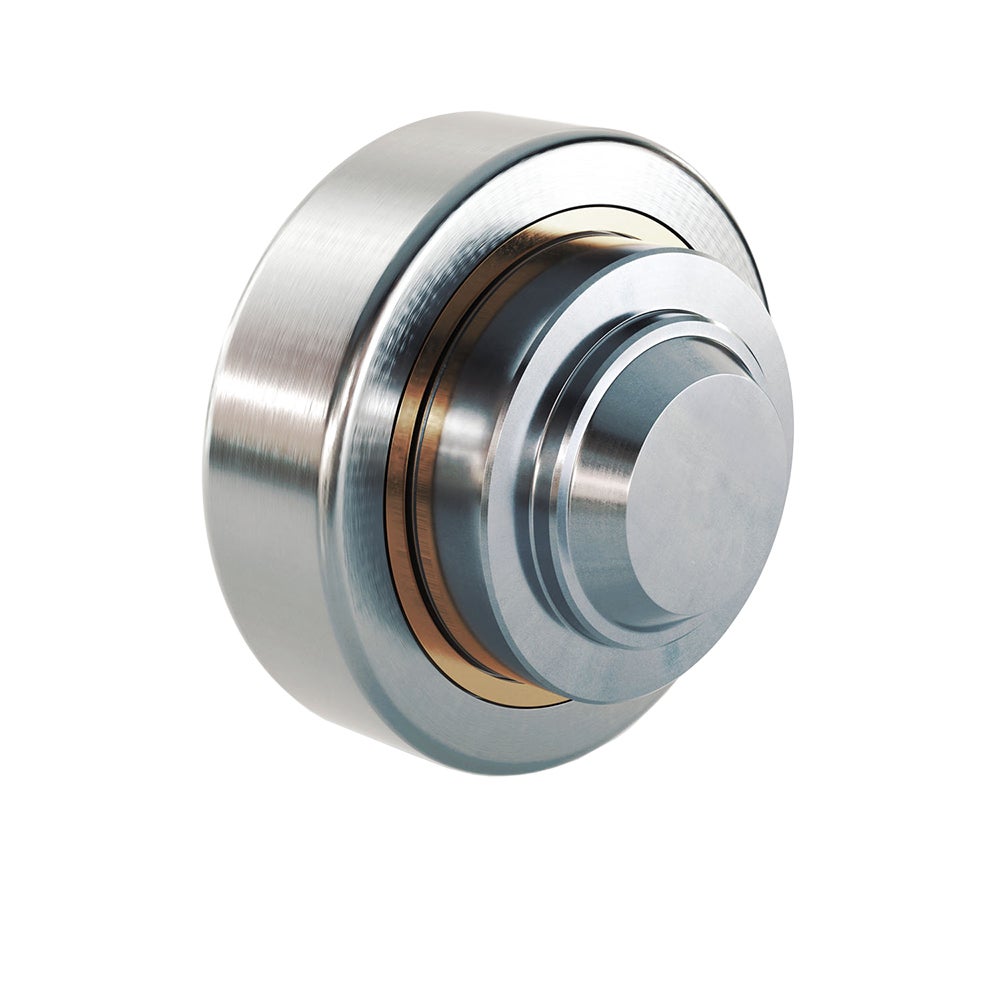

Standard Roller TR---.0300

• Lubricated for lifetime

Use profile UP---.0700
Fixing square element BQ---.1000
Rectangular fixing element BR---.1100

Note! Dynamic load capacity refers to bearing.

Dimensions in mm.

Product Information

Designation Lead Time * Dynamic Load Capacity Radial Dynamic Load Capacity Axial System Load Capacity Radial System Load Capacity Axial
2 31000 N 8000 N 8870 N 2950 N
2 45500 N 13000 N 11400 N 3150 N
2 48000 N 14000 N 12870 N 5000 N
2 68000 N 15000 N 20370 N 5100 N
2 81000 N 31000 N 24060 N 8900 N
2 110000 N 31000 N 33440 N 9800 N
2 151000 N 68000 N 51940 N 17400 N

* Green: Stock item, normally immediate shipment. Blue: Contact us for delivery time.

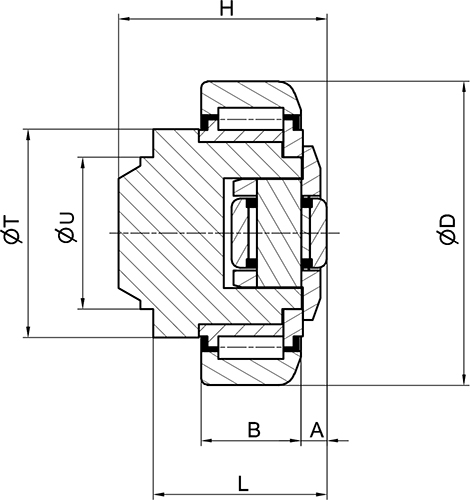

Technical Drawing
Designation A B D H L T U
5,50 20 62,50 43 33 42 30
6,50 23 70,10 48 40 48 35
7 23 77,70 50,50 39,50 54 40
7 30 88,40 61 48 59 45
8 31 107,70 69 55 71 60
8 37 123 75,80 59,50 80 60
15 45 149 89 69 103 60
